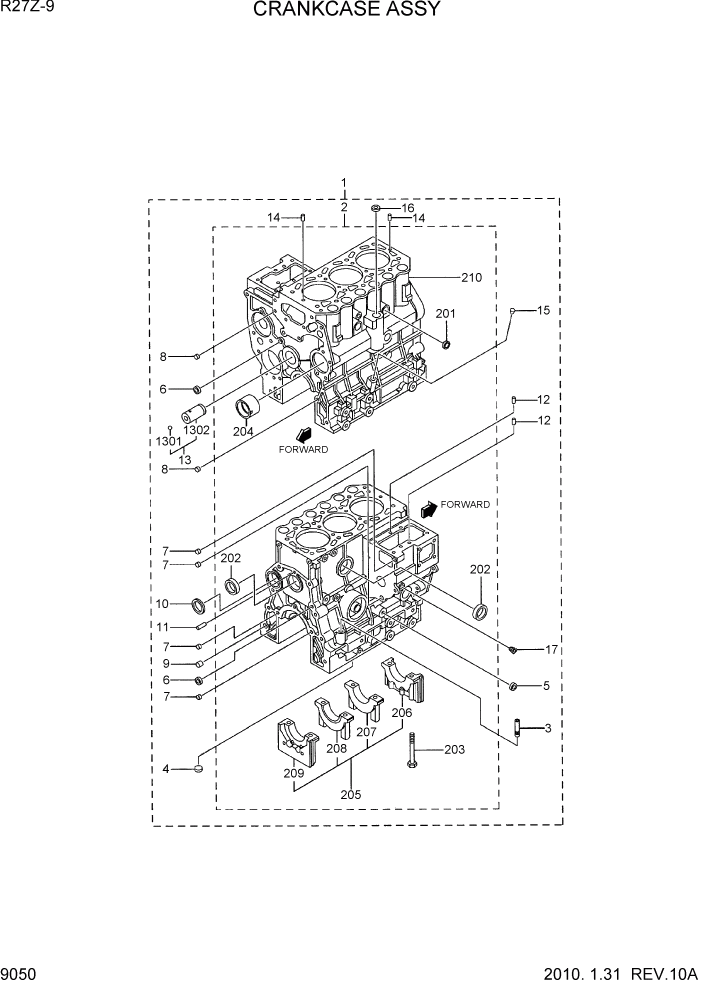

Запчасти Hyundai R27Z-9 PAGE 9050 CRANKCASE ASSY ДВИГАТЕЛЬ БАЗА

1

XJAF-01715

CRANKCASE ASSY

1шт.

N2

@

BLOCK SUB ASSY CYL

NOT

1шт.

201

XJAF-00568

CAP-SEALING

2шт.

202

XJAF-00190

CAP-SEALING

2шт.

203

XJAF-01644

BOLT-BEARING CAP

8шт.

204

XJAF-01646

BUSHING-CAMSHAFT

1шт.

N205

@

CAP SET-BEARING

NOT

1шт.

N206

@

CAP-BEARING FRONT

NOT

1шт.

N207

@

CAP-BEARING NO.2

NOT

1шт.

N208

@

CAP-BEARING NO.3

NOT

1шт.

N209

@

CAP-BEARING REAR

NOT

1шт.

N210

@

BLOCK-CYLINDER

NOT

1шт.

3

XJAF-02096

GUIDE-OIL LEVEL

1шт.

4

XJAF-02021

CAP-SEALING

1шт.

5

XJAF-02022

CAP-SEALING

1шт.

6

XJAF-02887

PLUG-TAPERED

2шт.

7

XJAF-02224

BUSHING-KNOCK

4шт.

8

XJAF-02225

BUSHING-KNOCK

2шт.

9

XJAF-02227

BUSHING-KNOCK

1шт.

10

XJAF-02020

PLUG-EXPANSION

1шт.

11

XJAF-02006

PIN-DOWEL

1шт.

12

XJAF-02089

PIN-DOWEL

2шт.

13

XJAF-01660

SHAFT ASSY-IDLER

1шт.

1301

XJAF-01882

BALL-STEEL BEARING

1шт.

1302

@

SHAFT-IDLER

NOT

1шт.

14

XJAF-00608

PIN-DOWEL

2шт.

15

XJAF-01951

PLUG-TAPERED

1шт.

16

XJAF-02024

CAP-SEALING

1шт.

17

XJAF-00201

PLUG-TAPERED

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.

N

@

NOT SUPPLIED PARTS

NOT

ARшт.
