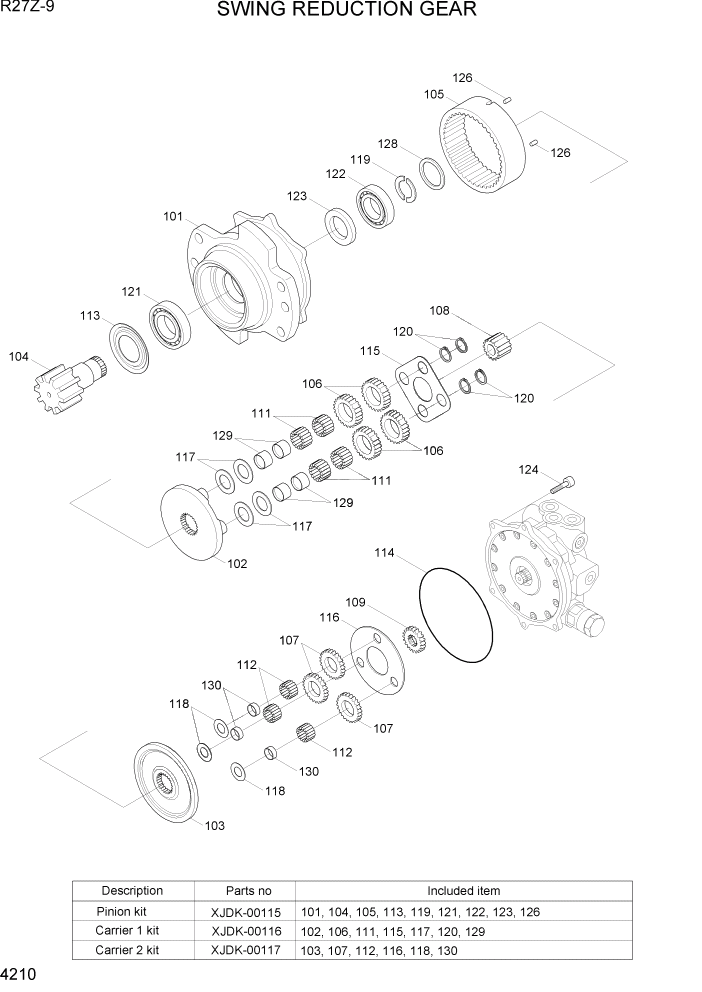

Запчасти Hyundai R27Z-9 PAGE 4210 SWING REDUCTION GEAR ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

@

SWING MOTOR ASSY

NOT

1шт.

*-2

XJDK-00101

REDUCTION GEAR

1шт.

S101

@

BODY

NOT

1шт.

S102

@

CARRIER 1

NOT

1шт.

S103

@

CARRIER 2

NOT

1шт.

S104

@

SHAFT-PINION

NOT

1шт.

S105

@

GEAR A-INTERNAL

NOT

1шт.

S106

@

GEAR B1

NOT

4шт.

S107

@

GEAR B2

NOT

3шт.

108

XJDK-00102

GEAR S1

1шт.

109

XJDK-00103

GEAR S2

1шт.

S111

@

NEEDLE

NOT

92шт.

S112

@

NEEDLE

NOT

72шт.

S113

@

RING-SEAL

NOT

1шт.

114

XJDK-00104

O RING

1шт.

S115

@

PLATE 1-THRUST

NOT

1шт.

S116

@

PLATE 2-THRUST

NOT

1шт.

S117

@

WASHER 1-THRUST

NOT

4шт.

S118

@

WASHER 2-THRUST

NOT

3шт.

S119

@

COLLAR-PRELOAD

NOT

2шт.

120

XJDK-00105

RING-SNAP

4шт.

S121

@

BEARING

NOT

1шт.

S122

@

BEARING

NOT

1шт.

S123

@

OIL SEAL

NOT

1шт.

124

XJDK-00106

SCREW

6шт.

S126

@

PIN

NOT

2шт.

128

XJDK-00107

RING

1шт.

S129

@

RING 1

NOT

4шт.

S130

@

RING 2

NOT

3шт.

S1

XJDK-00115

PINION KIT

SEE ILLUST

1шт.

S2

XJDK-00116

CARRIER 1 KIT

SEE ILLUST

1шт.

S3

XJDK-00117

CARRIER 2 KIT

SEE ILLUST

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
