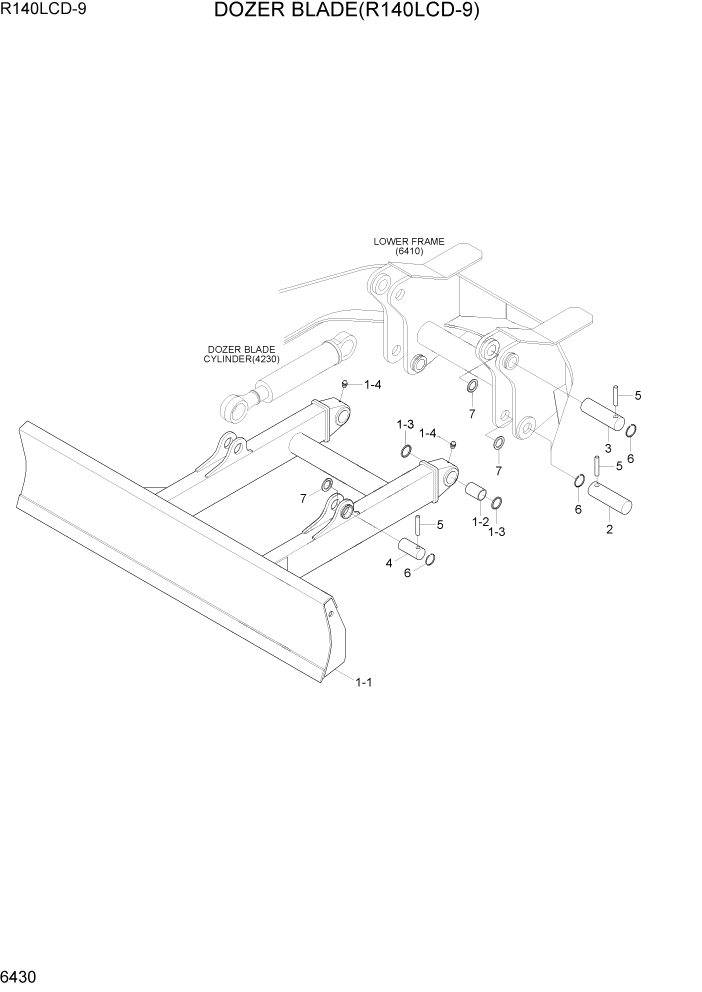

Запчасти Hyundai R140LC9 PAGE 6430 DOZER BLADE(R140LCD-9) СТРУКТУРА

1

51Q4-52101

DOZER BLADE ASSY

500MM SHOE

1шт.

1

51Q4-52201

DOZER BLADE ASSY

600MM, 700MM

1шт.

1-1

51Q4-52010

DOZER BLADE WA

500MM SHOE

1шт.

1-1

51Q4-52210

DOZER BLADE WA

600MM, 700MM

1шт.

1-2

51Q4-55100

BUSHING

2шт.

1-3

Y020-070011

SEAL-DUST

4шт.

1-4

S653-810002

NIPPLE-GREASE

2шт.

2

51E6-51311

PIN-BLADE

2шт.

3

51E6-51321

PIN-CYLINDER HEAD

2шт.

4

51E6-51331

PIN-CYLINDER ROD

2шт.

5

61E3-1190

PIN-STOP

6шт.

6

61E3-1191

SPRING

6шт.

7

S391-070120

SHIM-ROUND(1.0T)

6шт.
