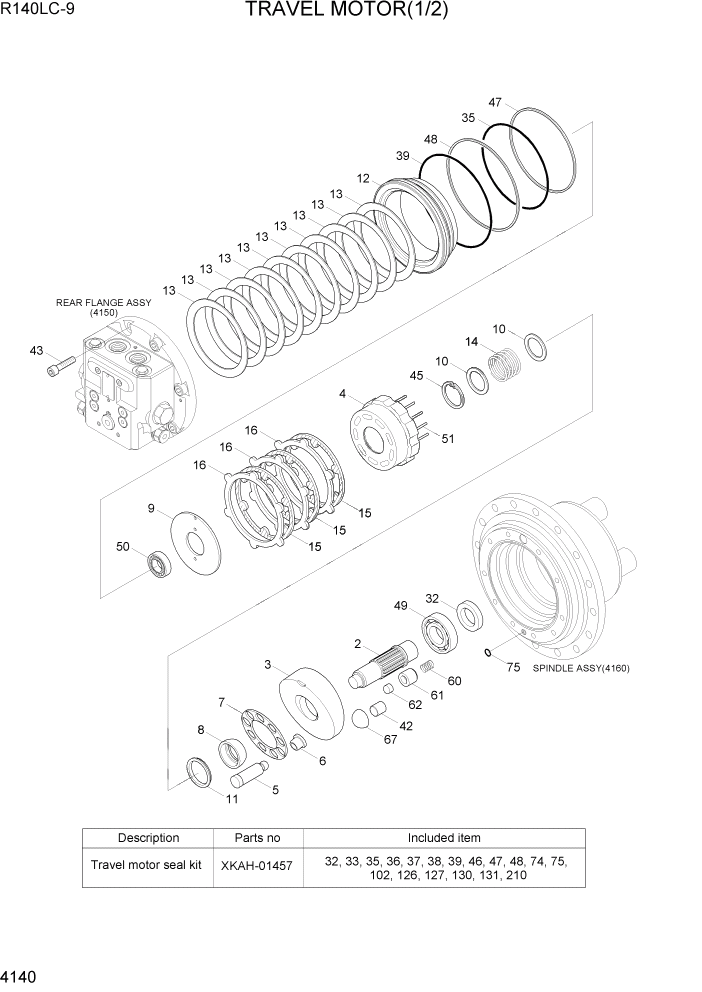

Запчасти Hyundai R140LC9 PAGE 4140 TRAVEL MOTOR(1/2) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31Q4-40030

TRACK MOTOR ASSY

*-1, -2, -3, -4

1шт.

*-1

XKAH-01182

TRAVEL MOTOR UNIT

1шт.

M-1

XKAH-01183

CYL BLOCK& PISTON KIT

1шт.

M-2

XKAH-01184

PISTON ASSY

9шт.

N5

XKAH-01185

PISTON

NOT

1шт.

N6

XKAH-01186

SHOE

NOT

1шт.

4

XKAH-01187

BLOCK-CYLINDER

1шт.

N7

XKAH-01188

PLATE-RETAINER

NOT

1шт.

N8

XKAH-01189

BALL-THRUST

NOT

1шт.

N10

XKAH-01190

WASHER

NOT

2шт.

N11

XKAH-01191

WASHER-COLLAR

NOT

1шт.

N14

XKAH-01192

SPRING

NOT

1шт.

45

XKAH-01194

RING-SNAP

1шт.

N51

XKAH-01193

ROLLER

NOT

5шт.

M-3

XKAH-01195

PISTON ASSY-2 SPEED

1шт.

N61

XKAH-01196

PISTON

NOT

1шт.

N62

XKAH-01197

SHOE

NOT

1шт.

N60

XKAH-01198

SPRING

NOT

1шт.

2

XKAH-01199

SHAFT-MAIN

1шт.

3

XKAH-01200

PLATE-SWASH

1шт.

9

XKAH-01201

PLATE-TIMING

1шт.

12

XKAH-01456

PISTON-PARKING

1шт.

13

XKAH-00733

SPRING

10шт.

15

XKAH-01164

PALTE-FRICTION

3шт.

16

XKAH-01165

PLATE-MATING

3шт.

K32

XKAH-00510

SEAL-OIL

1шт.

K35

XKAH-01166

O-RING

1шт.

K39

XKAH-01167

O-RING

1шт.

42

XKAH-01172

PIN-PARALLEL

2шт.

43

XKAH-01174

BOLT-SOCKET

8шт.

K47

XKAH-01236

RING-BACK UP

1шт.

K48

XKAH-01169

RING-BACK UP

1шт.

49

XKAH-01170

BEARING-ROLLER

1шт.

50

XKAH-01173

BEARING-BALL

1шт.

67

XKAH-01171

PIVOT

2шт.

50

XKAH-01173

BEARING-BALL

1шт.

K75

XKAH-00262

O-RING

2шт.

43

XKAH-01174

BOLT-SOCKET

8шт.

*-2

@

CONTROL PART ASSY

NOT

1шт.

*-3

@

RELIEF VALVE KIT

NOT

2шт.

*-4

@

REDUCTION GEAR ASSY

NOT

1шт.

K

XKAH-01457

SEAT KIT

SEE ILLUST

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
