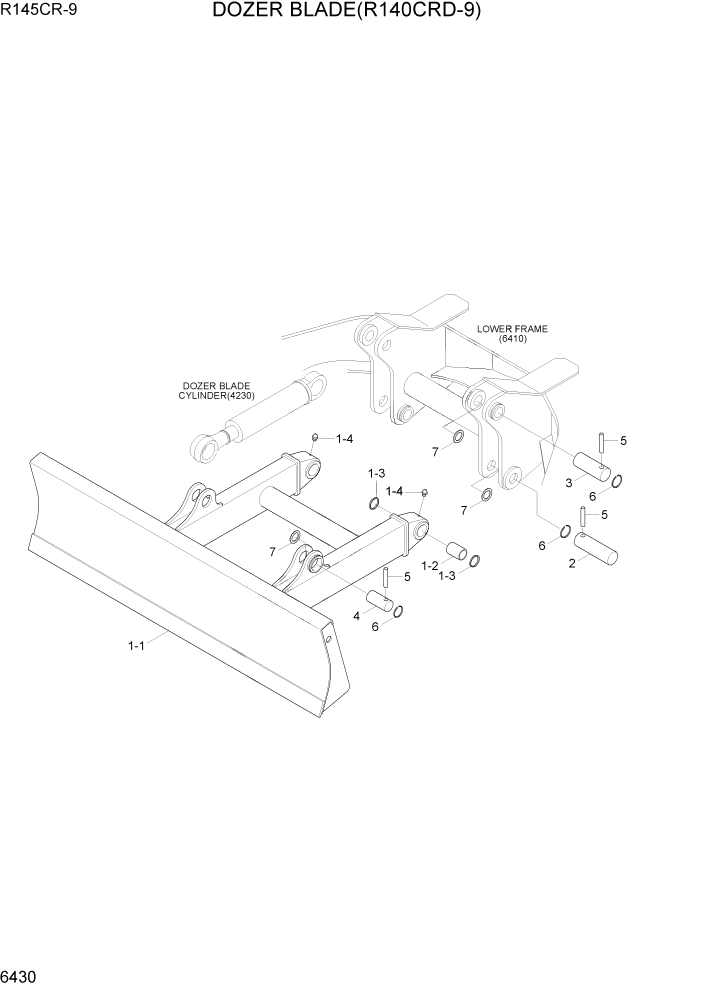

Запчасти Hyundai R145CR9 PAGE 6430 DOZER BLADE(R145CRD-9) СТРУКТУРА

1

56Q4-51001

DOZER BLADE ASSY

500MM SHOE

1шт.

1

56Q4-52001

DOZER BLADE ASSY

600MM, 700MM

1шт.

1-1

56Q4-51011

BLADE WA-DOZER

500MM SHOE

1шт.

1-1

56Q4-52011

BLADE WA-DOZER

600MM, 700MM

1шт.

1-2

51Q4-55100

BUSHING

2шт.

1-3

Y020-070011

SEAL-DUST,DLI,KPU

4шт.

1-4

S653-810002

NIPPLE-GREASE

2шт.

2

51E6-51311

PIN-BLADE

2шт.

3

51E6-51321

PIN-CYLINDER HEAD

2шт.

4

51E6-51331

PIN-CYLINDER ROD

2шт.

5

61E3-1190

PIN-STOP

6шт.

6

61E3-1191

SPRING

6шт.

7

S391-070120

SHIM-ROUND(1.0T)

6шт.
