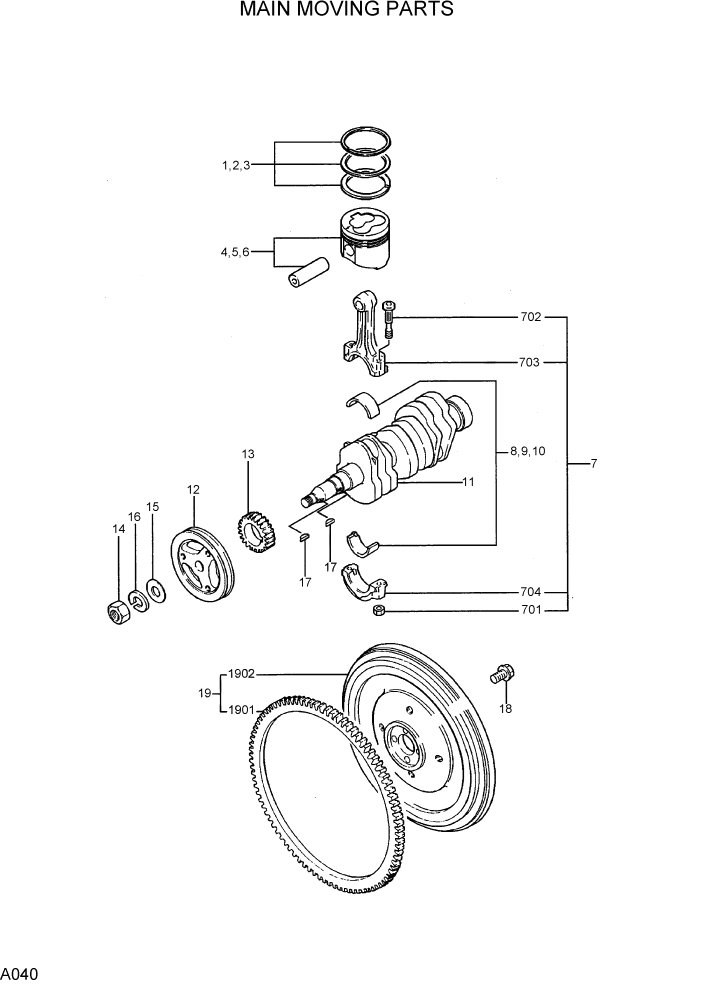

Запчасти Hyundai R22-7 PAGE A040 MAIN MOVING PARTS ДВИГАТЕЛЬ БАЗА

1

XJAF-02166

RING SET-PIATON

STD

3шт.

2

XJAF-02179

RING SET-PISTON

0.25MM O/S

3шт.

3

XJAF-02180

RING SET-PISTON

0.50MM O/S

3шт.

4

XJAF-01580

PISTON & PIN SET

STD

3шт.

5

XJAF-01581

PISTON & PIN SET

0.25MM O/S

3шт.

6

XJAF-01582

PISTON & PIN SET

0.50MM O/S

3шт.

7

XJAF-01583

ROD ASSY-CONNECTING

3шт.

701

XJAF-01935

NUT-CONNECTING ROD

6шт.

702

XJAF-01936

BOLT-CONNECTING ROD

6шт.

N703

@

CONNECTING ROD

NOT

3шт.

N704

@

CAP-CONNECTING ROD

NOT

3шт.

8

XJAF-02212

MATAL SET-CONN ROD

STD

3шт.

9

XJAF-02213

METAL SET-CONN ROD

0.25MM U/S

3шт.

10

XJAF-02214

METAL SET-CONN ROD

0.50MM U/S

3шт.

11

XJAF-01584

CRANKSHAFT

1шт.

12

XJAF-01585

PULLEY

1шт.

13

XJAF-02125

GEAR

1шт.

14

XJAF-01996

NUT-JAM

1шт.

15

XJAF-02000

WASHER-PLAIN 16

1шт.

16

XJAF-02004

WASHER-SPRING

1шт.

17

XJAF-02008

KEY-WOODRUFF

2шт.

18

XJAF-01957

BOLT-FLYWHEEL

4шт.

19

XJAF-02205

FLYWHEEL ASSY

1шт.

1901

XJAF-01953

GEAR-RING

1шт.

N1902

@

FLYWHEEL

NOT

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
