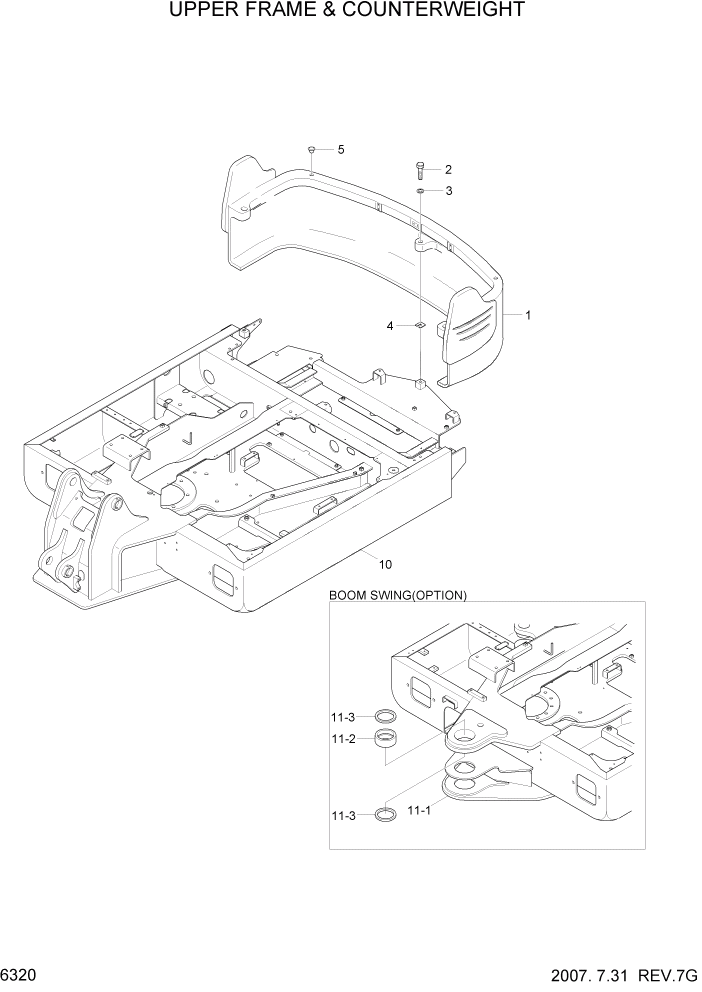

Запчасти Hyundai R55-7 PAGE 6320 UPPER FRAME & COUNTERWEIGHT СТРУКТУРА

1

41M8-21001

COUNTERWEIGHT

WITH LOGO #0481

1шт.

1

41M8-23000

COUNTERWEIGHT

WITHOUT LOGO #0482 - #1251

1шт.

1

41M8-23001

COUNTERWEIGHT

WITHOUT LOGO #1252 - #1598

1шт.

1

41M8-23002

COUNTERWEIGHT

WITHOUT LOGO #1599

1шт.

2

S017-200902

BOLT-HEXAGON HEAD

3шт.

3

S441-200002

WASHER-HARDENED

3шт.

4

41M5-51920

SHIM(1.0T)

3шт.

5

41M5-80030

CAP

2шт.

10

41M8-00012

UPPER FRAME WA

BOOM FIXED #0037

1шт.

10

41M8-00013

UPPER FRAME WA

BOOM FIXED #0038 - #0098

1шт.

10

41M8-00014

UPPER FRAME WA

BOOM FIXED #0099 - #0200

1шт.

10

41M8-00015

UPPER FRAME WA

#0201 - #1931

1шт.

10

41M8-00016

UPPER FRAME WA

#1932

1шт.

11

41M8-30000

UPPER FRAME ASSY

BOOM SWING #0037

1шт.

11

41M8-30001

UPPER FRAME ASSY

BOOM SWING #0038 - #0200

1шт.

11

41M8-30003

UPPER FRAME ASSY

BOOM SWING #0201 - #1931

1шт.

11

41M8-30004

UPPER FRAME ASSY

#1932

1шт.

11-1

41M8-30011

UPPER FRAME WA

#0037

1шт.

11-1

41M8-30012

UPPER FRAME WA

#0038 - #0200

1шт.

11-1

41M8-30014

UPPER FRAME WA

#0201 - #1931

1шт.

11-1

41M8-30015

UPPER FRAME WA

#1932

1шт.

11-2

X114-112070

BUSHING

#2603

1шт.

11-2

41M8-30500

BUSHING-CENTER

#2604

1шт.

11-3

S700-110208

SEAL-DUST

2шт.
