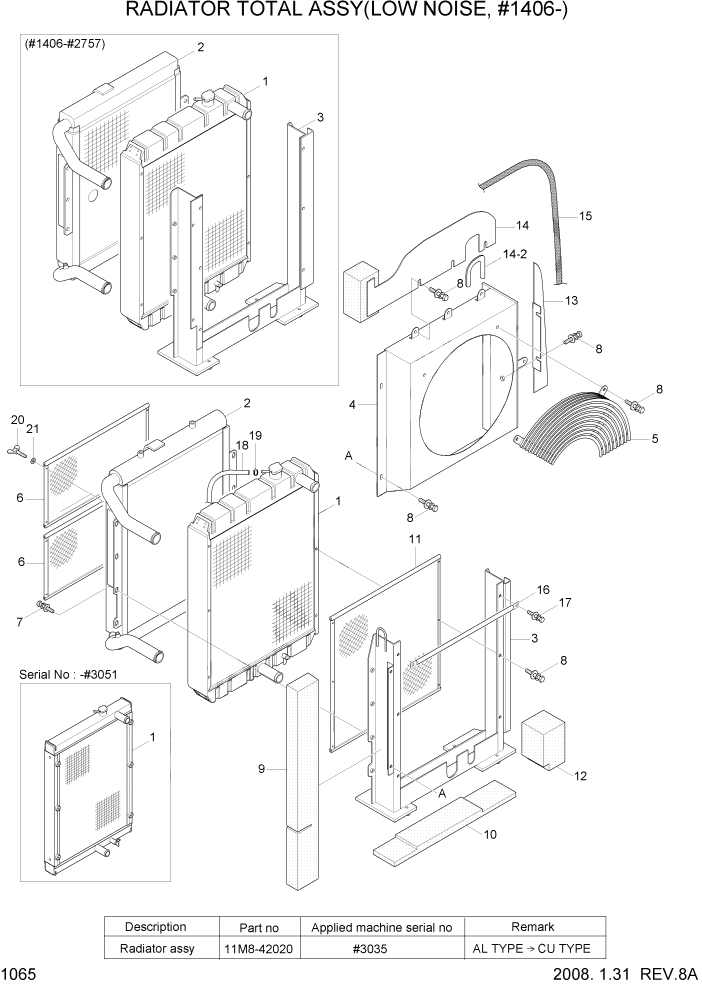

Запчасти Hyundai R55-7 PAGE 1065 RADIATOR TOTAL ASSY(LOW NOISE, #1406-) СИСТЕМА ДВИГАТЕЛЯ

*

11M8-42010

RADIATOR TOTAL ASSY

#1406 - #2327

1шт.

*

11M8-42011

RADIATOR TOTAL ASSY

#2328 - #2776

1шт.

*

11M8-43200

RADIATOR TOTAL ASSY

ALUMINUM TYPE #2777 - #3051

1шт.

*

11M8-43201

RADIATOR TOTAL ASSY

CU TYPE #3052

1шт.

1

11M8-42020

RADIATOR ASSY

CU TYPE #2776

1шт.

1

11M8-43110

RADIATOR ASSY

ALUMINUM TYPE #2777 - #3051

1шт.

1

11M8-42020

RADIATOR ASSY

CU TYPE #3052

1шт.

1-1

@

RADIATOR

NOT #2777

1шт.

1-2

11M6-52460

CAP-PRESSURE

#2776

1шт.

2

11M8-42030

OIL COOLER ASSY

#2776

1шт.

2

11M8-43120

OIL COOLER ASSY

#2777

1шт.

3

11M8-42040

SUPPORT WA

#2776

1шт.

3

11M8-43150

SUPPORT WA

#2777

1шт.

4

11M8-42051

SHROUD

#2327

1шт.

4

11M8-42052

SHROUD

#2328

1шт.

5

11M8-42060

GUARD-FAN

1шт.

6

11M8-42071

NET-WIRE

2шт.

7

S037-102052

BOLT-W/WASHER

6шт.

8

S035-081522

BOLT-W/WASHER

16шт.

9

11M8-42080

SPONGE

1шт.

10

11M8-42090

SPONGE

1шт.

12

11M8-42130

SPONGE

1шт.

13

11M8-42100

SCREEN ASSY

1шт.

14

11M8-42110

SCREEN ASSY

1шт.

15

S772-0073500

WEATHER STRIP

1шт.

16

11M6-52450

ROD

1шт.

17

S035-082522

BOLT-W/WASHER

2шт.

18

11M6-52072

HOSE-OVER FLOW

1шт.

19

S543-200002

CLAMP-TUBE

1шт.

20

S091-060152

BOLT-WING

8шт.

21

S403-062002

WASHER-PLAIN

8шт.
