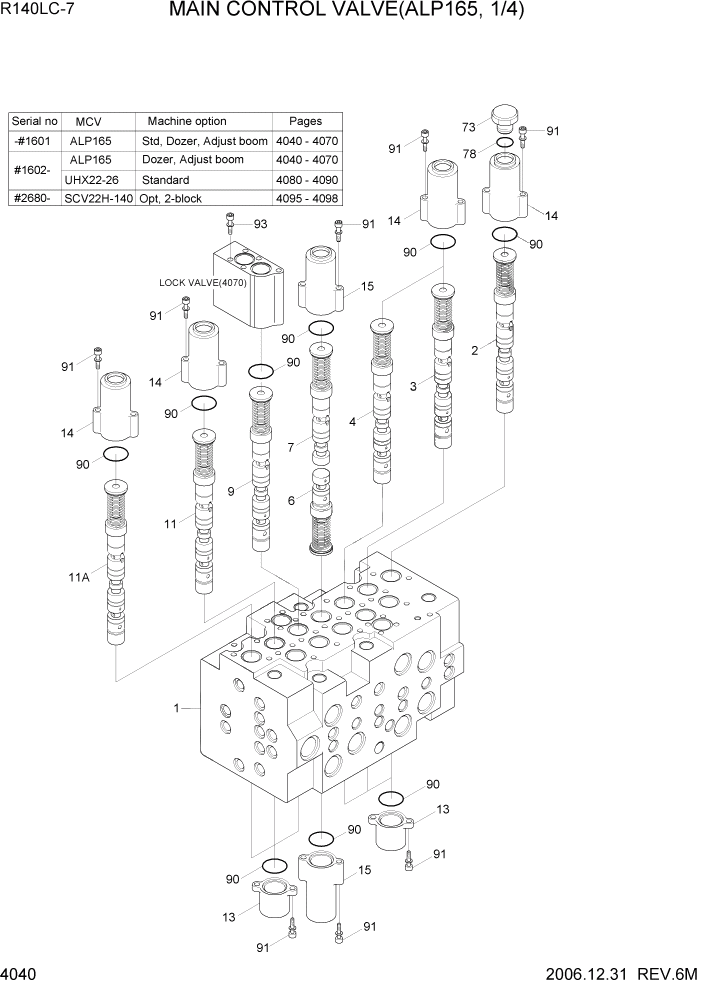

Запчасти Hyundai R140LC-7 PAGE 4040 MAIN CONTROL VALVE(ALP165,1/4) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31N4-00110

MAIN CONTROL VALVE

STD, DOZ, AJ/BM #1601

1шт.

*

31N4-00110

MAIN CONTROL VALVE

DOZ, ADJUST BM #1602 - #2337

1шт.

*

31N4-00110

MAIN CONTROL VALVE

DOZER #2338

1шт.

*

31N4-19110

MAIN CONTROL VALVE

ADJUST BOOM #2338

1шт.

N1

XKBF-00001

BODY

NOT

1шт.

2

XKBF-00002

SPOOL ASSY

TRAVEL STRAIGHT #0200

1шт.

2

XKBF-00103

SPOOL ASSY

TRAVEL STRAIGHT #0201

1шт.

3

XKBF-00003

SPOOL ASSY

TRAVEL

1шт.

4

XKBF-00004

SPOOL ASSY

SWING

1шт.

6

XKBF-00006

SPOOL ASSY

SWING PRIORITY

1шт.

7

XKBF-00007

SPOOL ASSY

BOOM 2

1шт.

9

XKBF-00009

SPOOL ASSY

ARM 1

1шт.

11

XKBF-00011

SPOOL ASSY

OPTION #0001

1шт.

0-45833333

XKBF-00011

SPOOL ASSY

OPTION #0001

1шт.

0-45833333

XKBF-00699

SPOOL ASSY

ADJUST BOOM #2338

1шт.

13

XKBF-00013

COVER-PILOT

6шт.

14

XKBF-00014

COVER-PILOT

5шт.

15

XKBF-00015

COVER-PILOT

2шт.

73

XKBF-00073

PLUG

1шт.

78

XKBF-00078

O-RING

1шт.

90

XKBF-00090

O-RING

14шт.

91

XKBF-00091

BOLT-SOCKET HEAD

26шт.

93

XKBF-00093

BOLT-SOCKET HEAD

5шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
