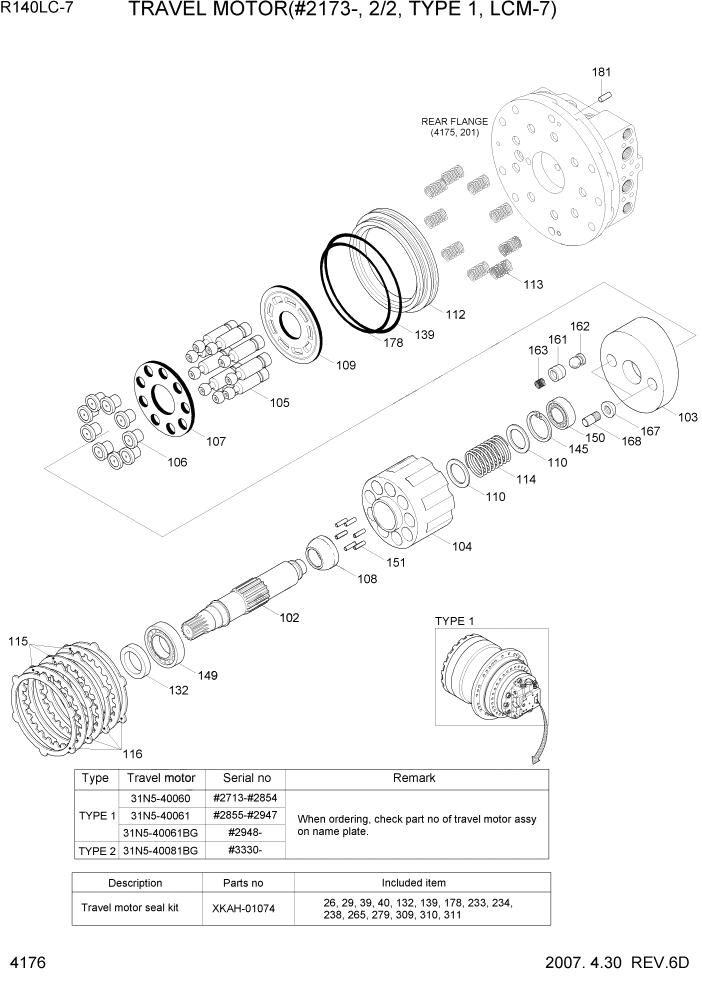

Запчасти Hyundai R140LC-7 PAGE 4176 TRAVEL MOTOR(#3713-, 2/2, TYPE 1, LCM-7) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

@

TRAVEL MOTOR ASSY

NOT #2713

1шт.

*-1

XKAH-00870

TRAVEL ROTARY ASSY

1шт.

*-5

XKAH-00891

C/BLOCK & PISTON KIT

1шт.

N104

XKAH-00892

BLOCK-CYL

NOT

1шт.

N110

XKAH-00407

WASHER

NOT

2шт.

N114

XKAH-00406

SPRING

NOT

1шт.

N145

XKAH-00405

RING-SNAP

NOT

1шт.

*-51

XKAH-00893

PISTON ASSY

1шт.

N105

XKAH-00894

PISTON

NOT

9шт.

N106

XKAH-00419

SHOE

NOT

9шт.

N151

XKAH-00404

ROLLER

NOT

6шт.

N107

XKAH-00403

PLATE-RETAINER

NOT

1шт.

N108

XKAH-00402

BALL-THRUST

NOT

1шт.

*-52

XKAH-00895

PISTON ASSY

1шт.

N161

XKAH-00422

PISTON

NOT

1шт.

N162

XKAH-00421

SHOE

NOT

1шт.

163

XKAH-00094

SPRING

1шт.

102

XKAH-00410

SHAFT-MAIN

1шт.

103

XKAH-00896

PLATE-SWASH

1шт.

109

XKAH-00897

PLATE-TIMING

1шт.

115

XKAH-00399

PLATE-FRICTION

3шт.

116

XKAH-00401

PLATE-MATING

4шт.

112

XKAH-00898

PISTON-PARKING

1шт.

113

XKAH-00397

SPRING

9шт.

132

XKAH-00388

OIL SEAL

1шт.

149

XKAH-00899

SLEEVE ASSY

1шт.

150

XKAH-00900

BEARING-BALL

1шт.

139

XKAH-00396

O-RING

1шт.

178

XKAH-00395

O-RING

1шт.

181

XKAH-00377

PIN-PARALLEL

2шт.

167

XKAH-00095

PIVOT

2шт.

168

XKAH-00034

PIN-PARALLEL

2шт.

K

XKAH-01074

SEAL KIT

SEE ILLUST

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
