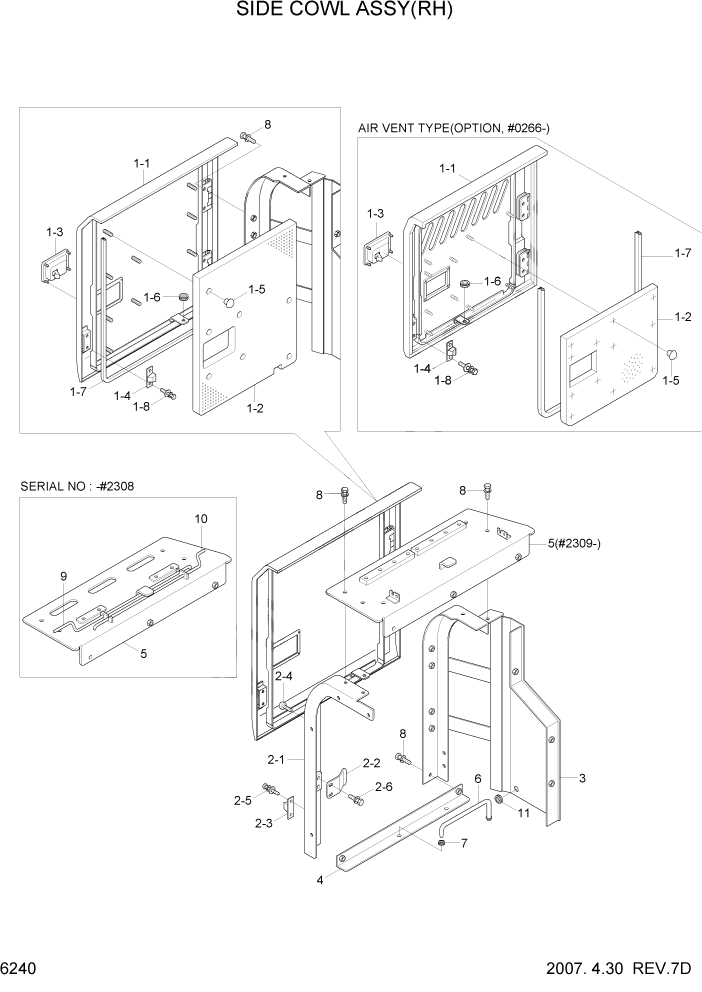

Запчасти Hyundai R140LC-7 PAGE 6240 SIDE COWL ASSY(RH) СТРУКТУРА

*

71N4-53002

SIDE COWL ASSY-RH

STD #0225

1шт.

*

71N4-53003

SIDE COWL ASSY-RH

STD #0226 - #1000

1шт.

*

72N4-53000

SIDE COWL ASSY-RH

STD #1001 - #2308

1шт.

*

72N4-53001

SIDE COWL ASSY-RH

STD #2309 - #2416

1шт.

*

72N4-53001Y

SIDE COWL ASSY-RH

STD #2417

1шт.

*

71N4-83000

SIDE COWL ASSY-RH

AIR VENT TYPE #0226 - #1005

1шт.

*

72N4-83000

SIDE COWL ASSY-RH

AIR VENT TYPE #1006 - #2308

1шт.

*

72N4-83001

SIDE COWL ASSY-RH

AIR VENT TYPE #2309 - #2416

1шт.

*

72N4-83001Y

SIDE COWL ASSY-RH

AIR VENT TYPE #2417

1шт.

*

72N4-58000

SIDE COWL ASSY-RH

PRE HEATER #2735

1шт.

1

71N4-53102

SIDE COVER ASSY-RH

STD #2416

1шт.

1

71N4-53102Y

SIDE COVER ASSY-RH

STD, PRE HEATER #2417

1шт.

1

71N4-73100

SIDE COVER ASSY-RH

AIR VENT TYPE #0226 - #2416

1шт.

1

71N4-73100Y

SIDE COVER ASSY-RH

AIR VENT TYPE #2417

1шт.

1-1

71N4-53112

SIDE COVER WA

STD

1шт.

1-1

71N4-73110

SIDE COVER WA

AIR VENT TYPE #0226

1шт.

1-2

71N4-53132

SPONGE-SIDE COVER

STD

1шт.

1-2

71N4-73130

SPONGE-SIDE COVER

AIR VENT TYPE #0226

1шт.

1-3

71EE-52520

CATCH ASSY

BLACK #2416

1шт.

1-3

74N8-52520

CATCH ASSY

YELLOW #2417

1шт.

1-4

71EE-53530

STOPPER-A

#0001

1шт.

1-5

71EM-51580

CAP-STUD BOLT

9шт.

1-6

S681-100400

GROMMET

1шт.

1-7

S772-022630

WEATHER STRIP

1шт.

1-8

S035-061526

BOLT-W/WASHER

2шт.

2

71N4-53281

SUPPORT ASSY-RH(FR)

1шт.

2-1

71N4-53271

SUPPOTR WA-RH(FR)

1шт.

2-2

71N8-52492

PLATE-LOCK

1шт.

2-3

71EE-53540

STOPPER-B

1шт.

2-4

71EH-13150

RUBBER-BUMPER

1шт.

2-5

S035-062026

BOLT-W/WASHER

2шт.

2-6

S037-122056

BOLT-W/WASHER

2шт.

3

71N4-53202

SUPPORT WA-RH(RR)

STD, AIR VENT #1000

1шт.

3

72N4-53200

SUPPORT WA-RH(RR)

STD, AIR VENT #1001 - #1005

1шт.

3

72N4-53201

SUPPORT WA-RH(RR)

STD, AIR VENT #1006

1шт.

3

72N4-58200

SUPPORT WA-RH(RR)

PRE HEATER #2735

1шт.

4

71N4-53302

SUPPORT-BOTTOM

1шт.

5

71N4-53402

HOOD WA-PUMP

#0225

1шт.

5

71N4-53403

HOOD WA-PUMP

#0226 - #1000

1шт.

5

72N4-53400

HOOD WA-PUMP

#1001 - #2308

1шт.

5

72N4-53401

HOOD WA-PUMP

#2309

1шт.

6

71N8-52950

STAY-SIDE COVER

1шт.

7

S681-100400

GROMMET

1шт.

8

S037-122556

BOLT-W/WASHER

10шт.

9

71N4-53810

BAR-TORSION

#1000

1шт.

10

71N4-53820

BAR-TORSION

#1000

1шт.

11

S681-290400

GROMMET

#1006

1шт.
