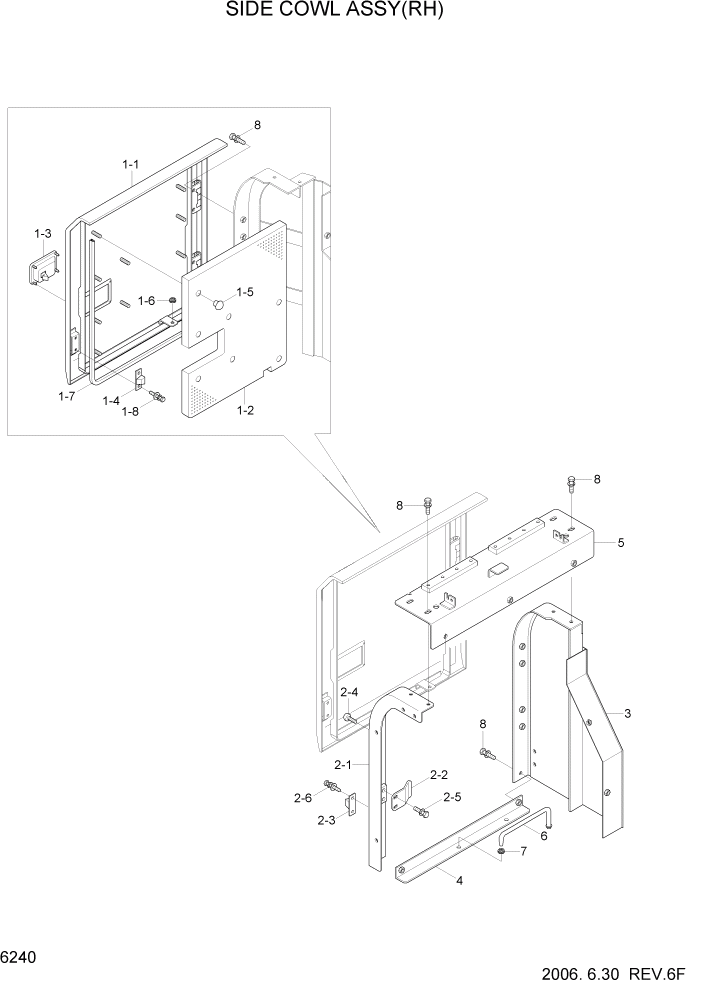

Запчасти Hyundai R180LC7 PAGE 6240 SIDE COWL ASSY(RH) СТРУКТУРА

*

71N5-53002

SIDE COWL ASSY-RH

STD #0310

1шт.

*

71N5-53002Y

SIDE COWL ASSY-RH

STD #0311

1шт.

*

71N5-53010

SIDE COWL ASSY-RH

PRE HEATING #0237 - #0310

1шт.

*

71N5-53010Y

SIDE COWL ASSY-RH

PRE HEATING #0311

1шт.

1

71N5-53101

SIDE COVER ASSY-RH

#0310

1шт.

1

71N5-53101Y

SIDE COVER ASSY-RH

#0311

1шт.

1-1

71N5-53111

SIDE COVER WA-RH

1шт.

1-2

71N5-53131

SPONGE-S/COVER(RH)

1шт.

1-3

71EE-52520

CATCH ASSY

BLACK #0310

1шт.

1-3

74N8-52520

CATCH ASSY

YELLOW #0311

1шт.

1-4

71EE-53531

STOPPER-A

1шт.

1-5

71EM-51580

CAP-STUD BOLT

12шт.

1-6

S681-100400

GROMMET

1шт.

1-7

S772-024000

WEATHER STRIP

1шт.

1-8

S035-061522

BOLT-W/WASHER

2шт.

2

71N5-53280

SUPPORT ASSY-RH(FR)

1шт.

2-1

71N5-53270

SUPPOTR WA-RH(FR)

1шт.

2-2

71N8-52492

PLATE-LOCK

1шт.

2-3

71EE-53540

STOPPER-B

1шт.

2-4

71EH-13150

RUBBER-BUMPER

1шт.

2-5

S037-122052

BOLT-W/WASHER

2шт.

2-6

S035-062022

BOLT-W/WASHER

2шт.

3

71N5-53202

SUPPORT WA-RH(RR)

STD

1шт.

3

71N5-53020

SUPPORT WA-RH(RR)

PRE HEATING #0237

1шт.

4

71N5-53301

SUPPORT-RH(BOTTOM)

1шт.

5

71N5-53401

HOOD WA-PUMP

1шт.

6

71N8-52950

STAY-SIDE COVER

1шт.

7

S681-100400

GROMMET

1шт.

8

S037-122552

BOLT-W/WASHER

10шт.
