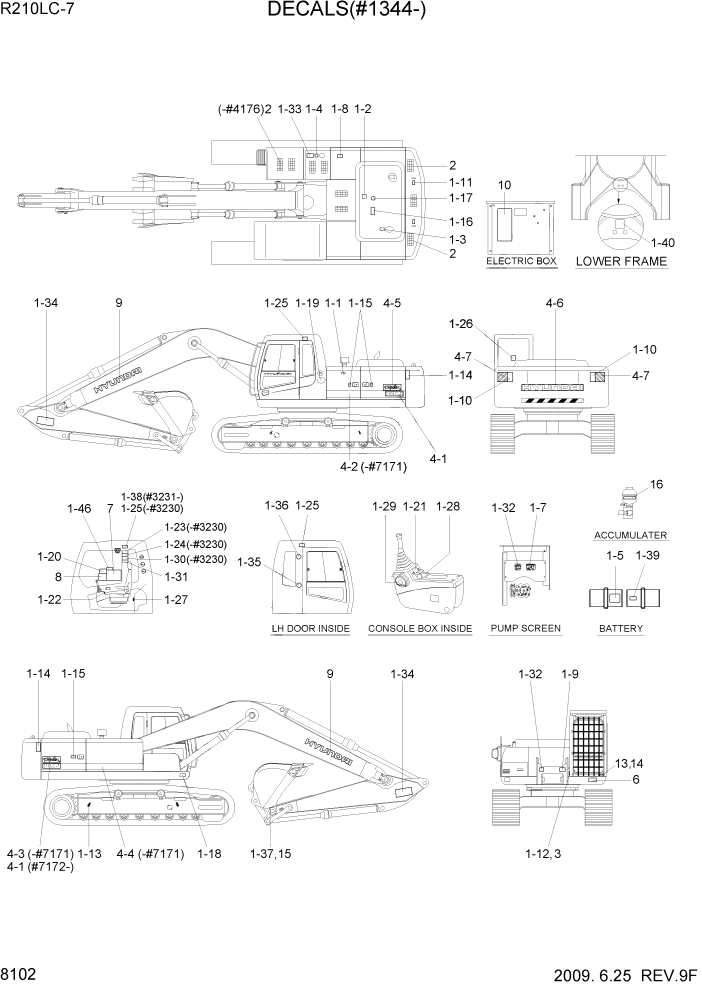

Запчасти Hyundai R210LC7 PAGE 8102 DECALS(#1344-) ДРУГИЕ ЧАСТИ

1

91N6-00104

DECAL KIT

#3230

1шт.

1

91N6-00105

DECAL KIT

#3231 - #3779

1шт.

1

91N6-00106

DECAL KIT

#3780 - #4176

1шт.

1

91N6-00107

DECAL KIT

#4177 - #4373

1шт.

1

91N6-00108

DECAL KIT

#4374

1шт.

1

94N6-00100

DECAL KIT

UPGRADE CABIN #7002 - #9324

1шт.

1

94N6-00101

DECAL KIT

UPGRADE CABIN #9325

1шт.

1-1

91N6-01102

AIR CLEANER FILTER

1шт.

1-2

91N6-01111

TURBOCHARGER COVER

1шт.

1-3

91N6-01121

RADIATOR CAP

1шт.

1-4

91N6-01131

FUELING

1шт.

1-5

91N6-02120

BATTERY ACCIDENT

1шт.

1-7

91N6-03102

HYD OIL LEVEL

1шт.

1-8

91N6-03111

HYD OIL LUBRICATION

1шт.

1-9

91N6-03121

REDUCTION GEAR GREASE

1шт.

1-1

91N6-04122

KEEP CLEAR/RR

2шт.

1-11

91N6-04132

LIFTING EYE

2шт.

1-12

91E1-14110

NAME PLATE

STD

1шт.

1-12

91E1-14130

NAME PLATE

EU

1шт.

1-13

91N6-05110

SLINGING IDEOGRAM

4шт.

1-14

91N6-07102

KEEP CLEAR

2шт.

1-15

91N6-07112

STAY FIX

3шт.

1-16

91N6-07121

SHEARING

1шт.

1-17

91N6-07131

NO STEP

1шт.

1-18

91N6-07141

TRANSPORTING

1шт.

1-19

91E1-27110

LOW EMISSION ENG

1шт.

1-2

91N6-07201

CONTROL IDEOGRAM

ISO PATTERN

1шт.

1-2

91N6-08200

CONTROL IDEOGRAM

SOUTH ASIA

1шт.

1-2

91N6-07360

MACHINE CONTROL-CAB

ISO, W/O PAT VV #4374

1шт.

1-21

91N6-07212

CONTROL IDEOGRAM-LH

ISO PATTERN

1шт.

1-21

91N6-08200

CONTROL IDEOGRAM

SOUTH ASIA

1шт.

1-21

92N6-07210

CONTROL IDEOGRAM-LH

UPGRADE CABIN #7002

1шт.

1-22

91N6-07221

CONTROL IDEOGRAM-RH

1шт.

1-22

92N6-07220

CONTROL IDEOGRAM-RH

UPGRADE CABIN #7002

1шт.

1-23

91N6-07231

REF OPERATOR MANUAL

#3230

1шт.

1-24

91N6-07241

MAX HEIGHT

#3230

1шт.

1-25

91N6-07252

SAFETY FRONT WINDOW

#3230

2шт.

1-25

91N6-07252

SAFETY FRONT WINDOW

#3231

1шт.

1-26

91N6-07261

ALTERNATE EXIT

1шт.

1-27

91N6-07272

AIR CONDITIONER FILTER

1шт.

1-28

91N6-07301

CONSOLE BOX TILTING

1шт.

1-28

92N6-07300

CONSOLE BOX TILTING

UPGRADE CABIN #7002 - #9324

1шт.

1-28

92N6-07510

CONSOLE BOX TILTING

UPGRADE CABIN #9325

1шт.

1-29

91N6-07311

SAFETY LEVER

1шт.

1-29

92N6-07310

SAFETY LEVER

UPGRADE CABIN #7002

1шт.

1-3

91N6-07320

INTERFERENCE

#3230

1шт.

1-31

91N6-07330

LOCKING CLAMP

1шт.

1-32

91N6-03130

HIGH PRESSURE HOSE

2шт.

1-33

91N6-03140

FALLING

1шт.

1-34

91N6-06110

KEEP CLEAR-ATTACH

2шт.

1-35

91N6-07280

HAMMER

1шт.

1-36

91N6-07290

FIRE

1шт.

1-37

91N6-06410

NAME PLATE-BUCKET

#1659

1шт.

1-38

91N6-07370

CABIN RH PILLAR

#3231

1шт.

1-39

91LB-01350

ECM CONNECTOR

#3780

1шт.

1-4

91N6-05120

TIE

#4177

1шт.

1-46

91N6-07390

TURBOCHARGER

#4374

1шт.

4-1

91N6-17112

MODEL NAME-LH/RR

R210LC-7 #7171

1шт.

4-1

91N6-17113

MODEL NAME

#7172

2шт.

4-1

91N6-17310

MODEL NAME-LH/RR

R210-7 #7171

1шт.

4-1

91N6-17311

MODEL NAME

#7172

2шт.

4-2

91N6-17210

DECAL-M/NAME, LH/FR

#7171

1шт.

4-3

91N6-17122

MODEL NAME-RH/RR

R210LC-7 #7171

1шт.

4-3

91N6-17320

MODEL NAME-RH/RR

R210-7 #7171

1шт.

4-4

91N5-17220

DECAL-M/NAME, RH/FR

#7171

1шт.

4-5

91N6-17140

ROBEX LOGO

2шт.

4-6

91N6-21110

TRADE MARK

COUNTERWEIGHT #9234

1шт.

4-7

91N6-04101

KEEP CLEAR-REF

#5298

2шт.

4-7

91N6-04170

REFLECTING

#5299

2шт.

6

91N6-22140

DECAL-NOISE LWA/104DB

EU, 104DB #3740

1шт.

6

91N6-22120

NOISE LEVEL-LWA

EU, 102DB #3741

1шт.

7

91N6-17261

SERVICE INSTRUCTION

#1870

1шт.

7

91N6-17262

SERVICE INSTRUCTION

#1871 - #2078

1шт.

7

91N6-17263

SERVICE INSTRUCTION

#2079 - #3341

1шт.

7

91N6-17264

SERVICE INSTRUCTION

#3342 - #4765

1шт.

7

91N6-17265

SERVICE INSTRUCTION

#4766 - #9324

1шт.

7

91N6-17266

SERVICE INSTRUCTION

#9325

1шт.

8-1

91N6-17411

LIFTING CHART(3.8CWT)

5.68BM+2.92AM

1шт.

8-2

91N6-17420

LIFTING CHART

5.68BM+2.4AM

1шт.

8-3

91N6-17430

LIFTING CHART

5.68BM+2.0AM

1шт.

8-4

91N6-17440

LIFTING CHART-L/REACH

8.20BM+6.3AM

1шт.

8-5

91N6-17450

LIFTING CHART

5.68BM+3.9AM

1шт.

8-6

91N6-17510

LIFT CHART-HIGH WALK

5.68BM+2.92AM

1шт.

8-7

91N6-17530

LIFTING CHART-H/WALKER

5.68BM+2.4AM

1шт.

8-8

91N6-17610

LIFTING CHART(4.2CWT)

5.68BM+2.92AM #2598

1шт.

8-9

91N6-17620

LIFTING CHART

5.68BM+2.0AM #2598

1шт.

8-1

91N6-17630

LIFTING CHART

5.68BM+2.4AM #2598

1шт.

8-11

91N6-17640

LIFTING CHART

5.68BM+3.9AM #2598

1шт.

8-12

91N6-17710

LIFTING CHART(4.5CWT)

5.68BM+2.92AM #2746

1шт.

8-13

91N6-17720

LIFTING CHART

5.68BM+2.0AM #2746

1шт.

8-14

91N6-17730

LIFTING CHART

5.68BM+2.4AM #2746

1шт.

8-15

91N6-17740

LIFTING CHART

5.68BM+3.9AM #2746

1шт.

9

91N6-21110

TRADE MARK

BOOM

2шт.

2

91E1-26300

STEP TREAD

#4176

9шт.

2

91E1-26300

STEP TREAD

#4177

3шт.

3

91EK-12010

RIVET

4шт.

10

91N6-07380

DECAL-M/CNTL PATT

#3671

1шт.

13

91N6-01280

FOPS FOG PLATE

OPT, FOG GUARD #4177

1шт.

14

91EK-12010

RIVET

OPT, FOG GUARD #4177

4шт.

15

91N6-06420

METAL TACK

#1659

1шт.

16

91N6-03200

ACCUMULATOR

#0532

1шт.
