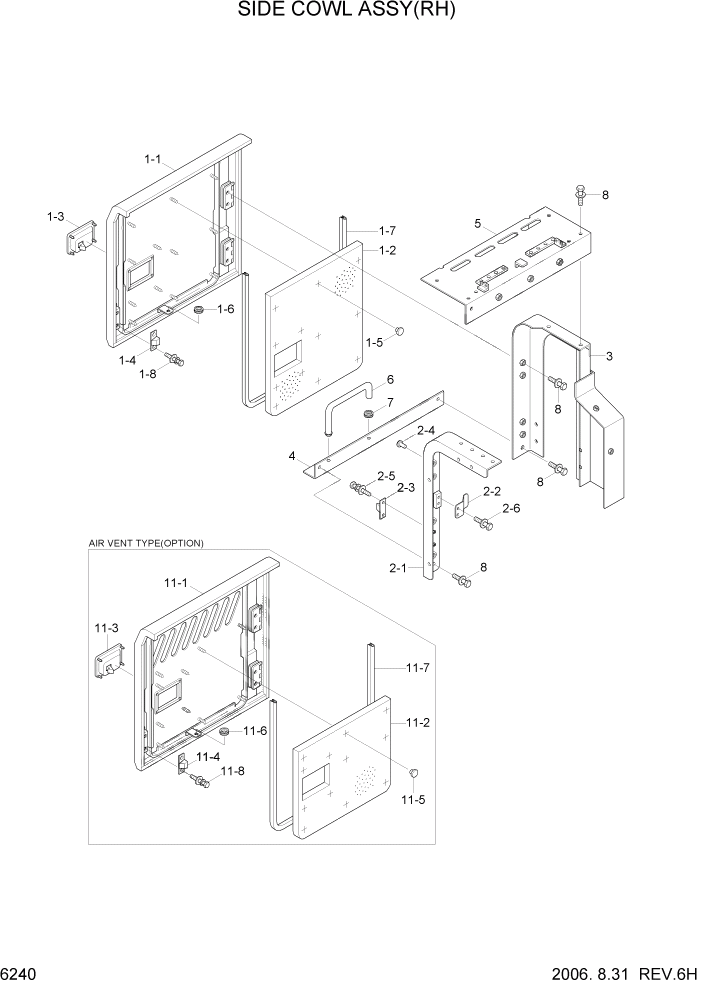

Запчасти Hyundai R305LC7 PAGE 6240 SIDE COWL ASSY(RH) СТРУКТУРА

*

71N8-53002

SIDE COWL ASSY-RH

STD #0182

1шт.

*

71N8-53002Y

SIDE COWL ASSY-RH

STD #0183

1шт.

*

71N8-83001

SIDE COWL ASSY-RH

AIR VENT #0182

1шт.

*

71N8-83001Y

SIDE COWL ASSY-RH

AIR VENT #0183

1шт.

*

73N8-53010

SIDE COWL ASSY-RH

PRE HEATING #0108 - #0182

1шт.

*

73N8-53010Y

SIDE COWL ASSY-RH

PRE HEATING #0183

1шт.

1

71N8-53103

SIDE COVER ASSY-RH

STD #0182

1шт.

1

71N8-53103Y

SIDE COVER ASSY-RH

STD #0183

1шт.

1-1

71N8-53112

COVER WA-RH

1шт.

1-2

71N8-53142

SPONGE

1шт.

1-3

71EE-52520

CATCH ASSY

BLACK #0182

1шт.

1-3

74N8-52520

CATCH ASSY

YELLOW #0183

1шт.

1-4

71EE-53531

STOPPER-A

1шт.

1-5

73EM-51580

CAP

12шт.

1-6

S681-100400

GROMMET

1шт.

1-7

S772-018000

WEATHER STRIP

1шт.

1-8

S035-061622

BOLT-W/WASHER

2шт.

2

71N8-53500

SUPPORT ASSY-RH,FR

1шт.

2-1

71N8-53510

SUPPORT WA-RH,FR

1шт.

2-2

71N8-52492

PLATE-LOCK

1шт.

2-3

71EE-53540

STOPPER-B

1шт.

2-4

71EH-13150

BUMPER-RUBBER

1шт.

2-5

S035-062022

BOLT-W/WASHER

2шт.

2-6

S037-122052

BOLT-W/WASHER

2шт.

3

71N8-53202

SUPPORT WA-RH,RR

1шт.

3

73N8-53900

SUPPORT WA-RH,RR

PRE HEATING #0108

1шт.

4

71N8-53312

BASE PLATE WA-RH

1шт.

5

71N8-53401

HOOD WA-PUMP

1шт.

6

71N8-52950

STAY-SIDE COVER

1шт.

7

S681-100400

GROMMET

1шт.

8

S037-122552

BOLT-W/WASHER

12шт.

11

71N8-73101

SIDE COVER ASSY-RH

AIR VENT #0182

1шт.

11

71N8-73101Y

SIDE COVER ASSY-RH

AIR VENT #0183

1шт.

11-1

71N8-73111

COVER WA-RH

1шт.

11-2

71N8-73140

SPONGE

1шт.

11-3

71EE-52520

CATCH ASSY

BLACK #0182

1шт.

11-3

74N8-52520

CATCH ASSY

YELLOW #0183

1шт.

11-4

71EE-53531

STOPPER-A

1шт.

11-5

71EM-51580

CAP-STUD BOLT

12шт.

11-6

S681-100400

GROMMET

1шт.

11-7

S772-026300

WEATHER STRIP

1шт.

11-8

S035-061622

BOLT-W/WASHER

2шт.
