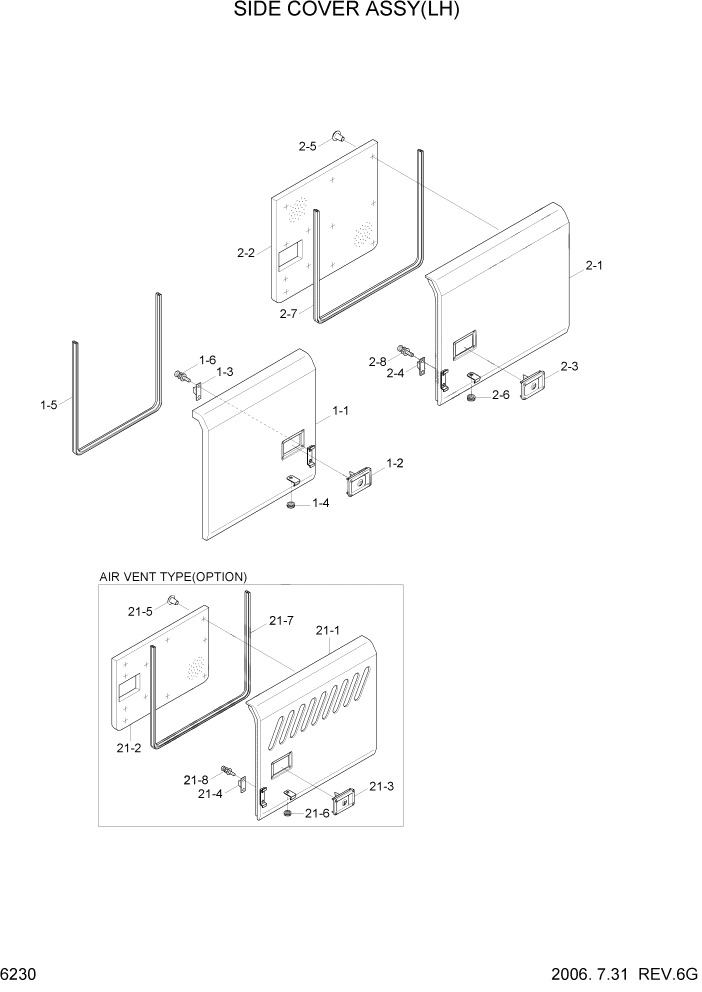

Запчасти Hyundai R320LC7 PAGE 6230 SIDE COVER ASSY(LH) СТРУКТУРА

1

71N8-62100

SIDE COVER ASSY-LH,FR

BLACK #0779

1шт.

1

71N8-62100Y

SIDE COVER ASSY-LH,FR

YELLOW #0780

1шт.

1-1

71N8-62110

SIDE COVER WA-LH,FR

1шт.

1-2

71EE-52520

CATCH ASSY

BLACK #0779

1шт.

1-2

74N8-52520

CATCH ASSY

YELLOW #0780

1шт.

1-3

71EE-53531

STOPPER-A

1шт.

1-4

S681-100400

GROMMET

1шт.

1-5

S772-024000

WEATHER STRIP

1шт.

1-6

S035-061522

BOLT-W/WASHER

2шт.

2

71N9-52200

SIDE COVER ASSY-LH/RR

STD, BLACK #0779

1шт.

2

71N9-52200Y

SIDE COVER ASSY-LH/RR

STD, YELLOW #0780

1шт.

2-1

71N9-52210

SIDE COVER WA-LH,RR

1шт.

2-2

71N9-52240

SPONGE-LH,RR

1шт.

2-3

71EE-52520

CATCH ASSY

BLACK #0779

1шт.

2-3

74N8-52520

CATCH ASSY

YELLOW #0780

1шт.

2-4

71EE-53531

STOPPER-A

1шт.

2-5

71EM-51580

CAP-STUD BOLT

#0199

12шт.

2-5

71EM-51580

CAP-STUD BOLT

#0200

15шт.

2-6

S681-100400

GROMMET

1шт.

2-7

S772-027500

WEATHER STRIP

1шт.

2-8

S035-061522

BOLT-W/WASHER

4шт.

21

71NA-72200

SIDE COVER ASSY-LH(RR)

AIR VENT, BLACK #0001 - #0779

1шт.

21

71NA-72200Y

SIDE COVER ASSY-LH,RR

AIR VENT,YELLOW #0780

1шт.

21-1

71NA-72210

SIDE COVER WD-LH(RR)

1шт.

21-2

71NA-72240

SPONGE

1шт.

21-3

71EE-52520

CATCH ASSY

BLACK #0779

1шт.

21-3

74N8-52520

CATCH ASSY

YELLOW #0780

1шт.

21-4

71EE-53531

STOPPER-A

1шт.

21-5

71EM-51580

CAP-STUD BOLT

12шт.

21-6

S681-100400

GROMMET

1шт.

21-7

S772-027500

WEATHER STRIP

1шт.

21-8

S035-061522

BOLT-W/WASHER

4шт.
