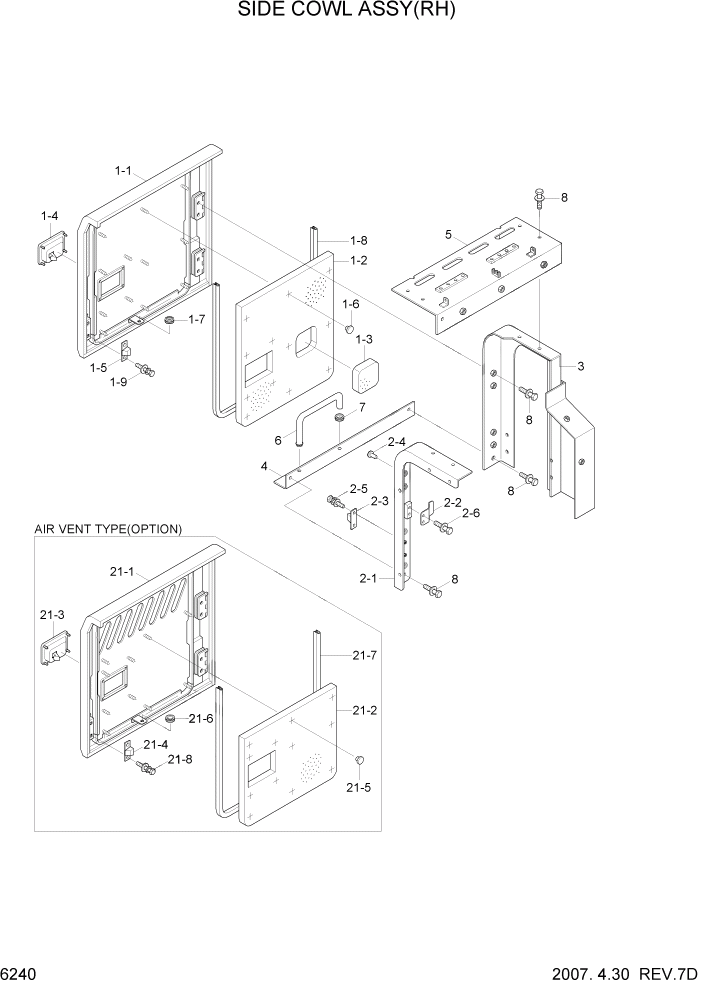

Запчасти Hyundai R320LC7 PAGE 6240 SIDE COWL ASSY(RH) СТРУКТУРА

*

71NA-53002

SIDE COWL ASSY-RH

STD, BLACK #0779

1шт.

*

71NA-53002Y

SIDE COWL ASSY-RH

STD, YELLOW #0780

1шт.

*

71NA-53010Y

SIDE COWL ASSY-RH

PRE HEATER #0919

1шт.

1

71NA-53100

SIDE COVER ASSY-RH

STD, BLACK #0779

1шт.

1

71NA-53100Y

SIDE COVER ASSY-RH

STD, YELLOW #0780

1шт.

1-1

71NA-53110

COVER WA-RH

1шт.

1-2

71NA-53130

SPONGE-RH

1шт.

1-3

71NA-53140

SPONGE-RH

1шт.

1-4

71EE-52520

CATCH ASSY

BLACK #0779

1шт.

1-4

74N8-52520

CATCH ASSY

YELLOW #0780

1шт.

1-5

71EE-53531

STOPPER-A

1шт.

1-6

71EM-51580

CAP-STUD BOLT

12шт.

1-7

S681-100400

GROMMET

1шт.

1-8

S772-027500

WEATHER STRIP

1шт.

1-9

S035-061622

BOLT-W/WASHER

4шт.

2

71NA-53500

SUPPORT ASSY-RH,FR

1шт.

2-1

71NA-53510

SUPPORT WA-RH,FR

1шт.

2-2

71N8-52492

PLATE-LOCK

1шт.

2-3

71EE-53540

STOPPER-B

1шт.

2-4

71EH-13150

BUMPER-RUBBER

1шт.

2-5

S035-062022

BOLT-W/WASHER

2шт.

2-6

S037-122052

BOLT-W/WASHER

2шт.

3

71NA-53201

SUPPORT WA-RR

1шт.

3

71NA-53900

SUPPORT WA-RR

PRE HEATER #0919

1шт.

4

71N9-53300

BASE PLATE WA-RH

1шт.

5

71NA-53402

HOOD WA-PUMP

1шт.

6

71N8-52950

STAY-SIDE COVER

1шт.

7

S681-100400

GROMMET

1шт.

8

S037-122552

BOLT-W/WASHER

10шт.

*

71NA-83000

SIDE COWL ASSY-RH

AIR VENT, BLACK #0001 - #0779

1шт.

*

71NA-83000Y

SIDE COWL ASSY-RH

AIR VENT,YELLOW #0780

1шт.

21

71NA-73100

SIDE COVER ASSY-RH

1шт.

21-1

71NA-73110

SIDE COVER WA-RH

1шт.

21-2

71NA-73140

SPONGE

1шт.

21-3

71EE-52520

CATCH ASSY

BLACK #0779

1шт.

21-3

74N8-52520

CATCH ASSY

YELLOW #0780

1шт.

21-4

71EE-53531

STOPPER-A

1шт.

21-5

71EM-51580

CAP-STUD BOLT

12шт.

21-6

S681-100400

GROMMET

1шт.

21-7

S772-027500

WEATHER STRIP

1шт.

21-8

S035-061622

BOLT-W/WASHER

4шт.
