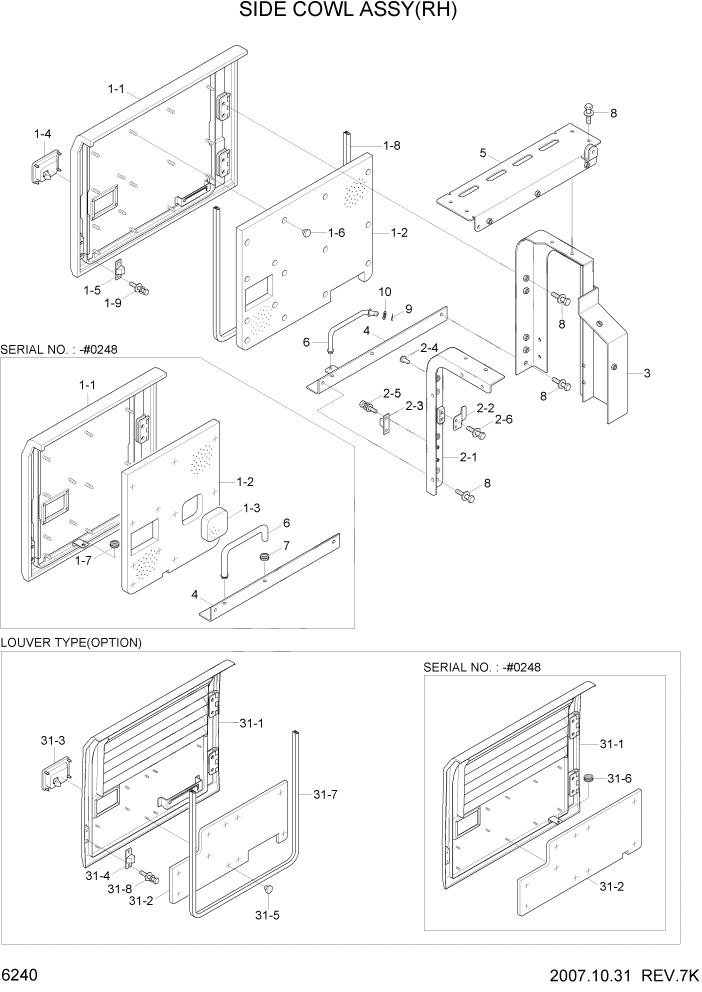

Запчасти Hyundai R320LC7A PAGE 6240 SIDE COWL ASSY(RH) СТРУКТУРА

*

72NA-53000

SIDE COWL ASSY-RH

STD, BLACK #0021

1шт.

*

72NA-53000Y

SIDE COWL ASSY-RH

STD, YELLOW #0022 - #0248

1шт.

*

72NA-53001

SIDE COWL ASSY-RH

#0249

1шт.

*

72NA-53010

SIDE COWL ASSY-RH

PRE HEATER #0021

1шт.

*

72NA-53010Y

SIDE COWL ASSY-RH

PRE HEATER #0022 - #0248

1шт.

*

72NA-53011

SIDE COWL ASSY-RH

#0249

1шт.

*

72NA-93000

SIDE COWL ASSY-RH

LOUVE TYPE #0021

1шт.

*

72NA-93000Y

SIDE COWL ASSY-RH

LOUVE TYPE #0022 - #0248

1шт.

*

72NA-93001

SIDE COWL ASSY-RH

#0249

1шт.

1

71NA-53100

SIDE COVER ASSY-RH

STD,PRE HEATER #0021

1шт.

1

71NA-53100Y

SIDE COVER ASSY-RH

STD,PRE HEATER #0022 - #0248

1шт.

1

72NA-53100

SIDE COVER ASSY-RH

#0249

1шт.

1-1

71NA-53110

COVER WA-RH

1шт.

1-2

71NA-53130

SPONGE-RH

1шт.

1-3

71NA-53140

SPONGE-RH

1шт.

1-4

71EE-52520

CATCH ASSY

BLACK #0021

1шт.

1-4

74N8-52520

CATCH ASSY

YELLOW #0022

1шт.

1-5

71EE-53531

STOPPER-A

1шт.

1-6

71EM-51580

CAP-STUD BOLT

17шт.

1-7

S681-100400

GROMMET

#0248

1шт.

1-8

S772-027500

WEATHER STRIP

1шт.

1-9

S035-061622

BOLT-W/WASHER

4шт.

31

73NB-63101

SIDE COVER ASSY-RH

LOUVE TYPE #0021

1шт.

31

73NB-63101Y

SIDE COVER ASSY-RH

LOUVE TYPE #0022 - #0248

1шт.

31

72NA-93100

SIDE COVER ASSY-RH

#0249

1шт.

31-1

73NB-63111

SIDE COVER WA-RH

1шт.

31-2

73NB-63131

SPONGE

1шт.

31-3

71EE-52520

CATCH ASSY

BLACK #0021

1шт.

31-3

74N8-52520

CATCH ASSY

YELLOW #0022

1шт.

31-4

71EE-53531

STOPPER-A

1шт.

31-5

71EM-51580

CAP-STUD BOLT

10шт.

31-6

S681-100400

GROMMET

#0248

1шт.

31-7

S772-027500

WEATHER STRIP

1шт.

31-8

S035-061622

BOLT-W/WASHER

2шт.

2

71NA-53500

SUPPORT ASSY-RH,FR

1шт.

2-1

71NA-53510

SUPPORT WA-RH,FR

1шт.

2-2

71N8-52492

PLATE-LOCK

1шт.

2-3

71EE-53540

STOPPER-B

1шт.

2-4

71EH-13150

RUBBER-BUMPER

1шт.

2-5

S035-062022

BOLT-W/WASHER

2шт.

2-6

S037-122052

BOLT-W/WASHER

2шт.

3

72NA-53200

SUPPORT WA-RR

STD,LOUVE TYPE

1шт.

3

72NA-53900

SUPPORT WA-RR

PRE HEATER

1шт.

4

71N9-53300

BASE PLATE WA-RH

#0248

1шт.

4

72NA-53300

BASE PLATE WA-RH

#0249

1шт.

5

72NA-53400

HOOD WA-PUMP

1шт.

6

71N8-52950

STAY-SIDE COVER

#0248

1шт.

6

71ND-53850

STAY WA

#0249

1шт.

7

S681-100400

GROMMET

#0248

1шт.

8

S037-122552

BOLT-W/WASHER

10шт.

9

S461-320202

PIN-SPLIT

#0249

1шт.

10

S403-121002

WASHER-PLAIN

#0249

1шт.
