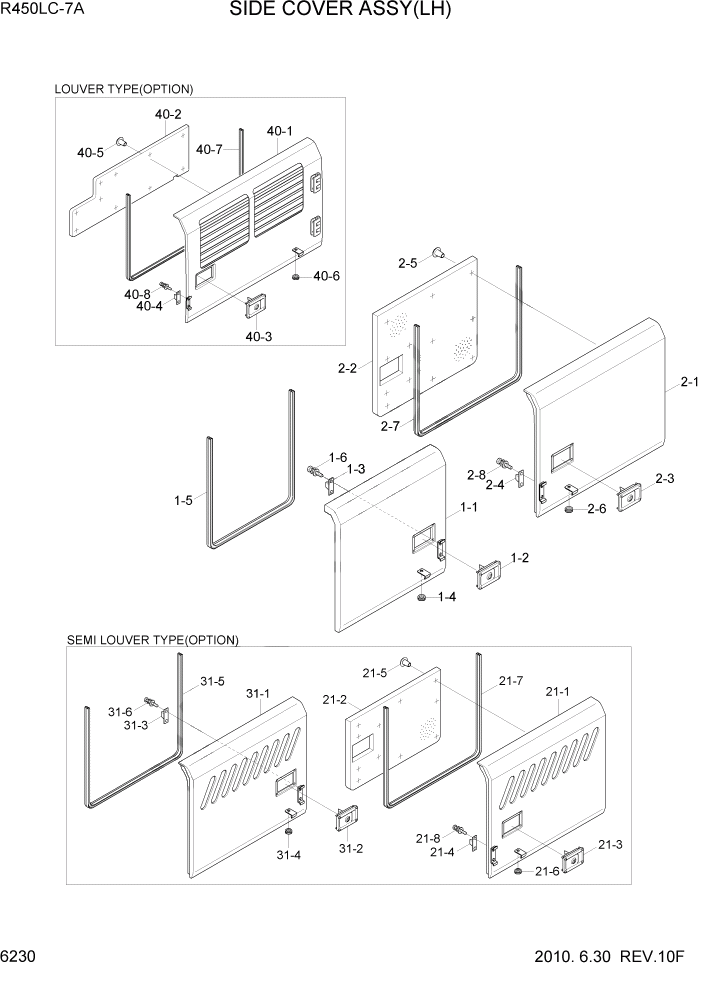

Запчасти Hyundai R450LC7 PAGE 6230 SIDE COVER ASSY(LH) СТРУКТУРА

*

@

SIDE COWL ASSY

NOT

1шт.

1

71NB-52101

SIDE COVER ASSY-LH,FR

STD #0595

1шт.

1

71NB-52101Y

SIDE COVER ASSY-LH/FR

STD #0596

1шт.

1-1

71NB-52111

SIDE COVER WA-LH,FR

1шт.

1-2

71EE-52520

CATCH ASSY

BLACK #0595

1шт.

1-2

74N8-52520

CATCH ASSY

YELLOW #0596

1шт.

1-3

71EE-53531

STOPPER-A

1шт.

1-4

S681-100400

GROMMET

1шт.

1-5

S772-025400

WEATHER STRIP

L=2540MM

1шт.

1-6

S035-061622

BOLT-W/WASHER

4шт.

1

73NB-65100

SIDE COVER ASSY-LH,FR

HIGH COOLER #1008

1шт.

1-1

73NB-65110

SIDE COVER WA-LH,FR

1шт.

1-2

74N8-52520

CATCH ASSY

1шт.

1-3

71EE-53531

STOPPER-A

1шт.

1-4

S681-100400

GROMMET

1шт.

1-5

S772-025400

WEATHER STRIP

1шт.

1-6

S035-061522

BOLT-W/WASHER

4шт.

2

71NB-52201

SIDE COVER ASSY-LH,RR

STD #0595

1шт.

2

71NB-52201Y

SIDE COVER ASSY-LH/RR

STD #0596

1шт.

2-1

71NB-52211

SIDE COVER WA-LH,RR

1шт.

2-2

71NB-52241

SPONGE

1шт.

2-3

71EE-52520

CATCH ASSY

BLACK #0595

1шт.

2-3

74N8-52520

CATCH ASSY

YELLOW #0596

1шт.

2-4

71EE-53531

STOPPER-A

1шт.

2-5

71EM-51580

CAP-STUD BOLT

#0206

12шт.

2-5

71EM-51580

CAP-STUD BOLT

#0207

15шт.

2-6

S681-100400

GROMMET

1шт.

2-7

S772-028000

WEATHER STRIP

L=2800MM

1шт.

2-8

S035-061622

BOLT-W/WASHER

4шт.

21

71NB-72200

SIDE COVER ASSY-LH/RR

SEMI LOUVER #0005 - #0595

1шт.

21

71NB-72200Y

SIDE COVER ASSY-LH/RR

SEMI LOUVER #0596

1шт.

21-1

71NB-72210

SIDE COVER WA-LH/RR

1шт.

21-2

71NB-72240

SPONGE

1шт.

21-3

71EE-52520

CATCH ASSY

BLACK #0595

1шт.

21-3

74N8-52520

CATCH ASSY

YELLOW #0596

1шт.

21-4

71EE-53531

STOPPER-A

1шт.

21-5

71EM-51580

CAP-STUD BOLT

#0206

12шт.

21-5

71EM-51580

CAP-STUD BOLT

#0207

15шт.

21-6

S681-100400

GROMMET

1шт.

21-7

S772-028000

WEATHER STRIP

1шт.

21-8

S035-061622

BOLT-W/WASHER

4шт.

31

71NB-92100

SIDE COVER ASSY-LH/FR

SEMI LOUVER #0121 - #0595

1шт.

31

71NB-92100Y

SIDE COVER ASSY-LH/FR

SEMI LOUVER #0596

1шт.

31-1

71NB-92110

SIDE COVER WA-LH,FR

1шт.

31-2

71EE-52520

CATCH ASSY

BLACK #0595

1шт.

31-2

74N8-52520

CATCH ASSY

YELLOW #0596

1шт.

31-3

71EE-53531

STOPPER-A

1шт.

31-4

S681-100400

GROMMET

1шт.

31-5

S772-025400

WEATHER STRIP

L=2540MM

1шт.

31-6

S035-061522

BOLT-W/WASHER

4шт.

40

73NB-62200

SIDE COVER ASSY-LH/RR

LOUVER TYPE #0295 - #0595

1шт.

40

73NB-62200Y

SIDE COVER ASSY-LH/RR

LOUVER TYPE #0596

1шт.

40-1

73NB-62210

SIDE COVER WA-LH/RR

1шт.

40-2

73NB-62230

SPONGE

1шт.

40-3

71EE-52520

CATCH ASSY

BLACK #0595

1шт.

40-3

74N8-52520

CATCH ASSY

YELLOW #0596

1шт.

40-4

71EE-53531

STOPPER-A

1шт.

40-5

71EM-51580

CAP-STUD BOLT

10шт.

40-6

S681-100400

GROMMET

1шт.

40-7

S772-028000

WEATHER STRIP

L=2800MM

1шт.

40-8

S035-061522

BOLT-W/WASHER

2шт.
