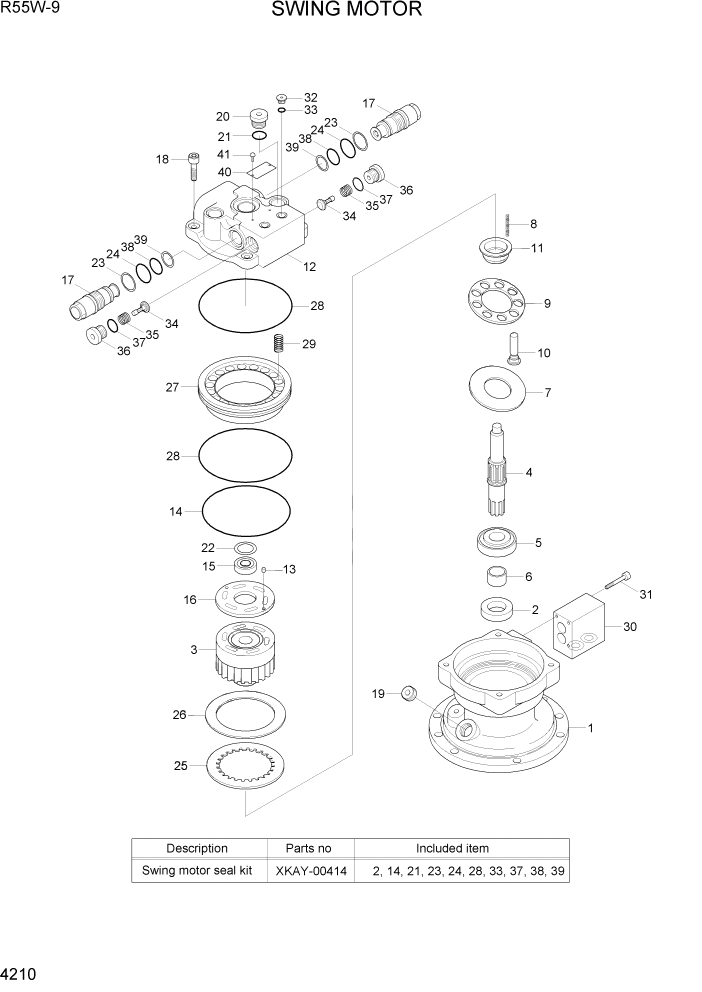

Запчасти Hyundai R55W-9 PAGE 4210 SWING MOTOR ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31M9-10150

SWING UNIT

*-1, *-2

1шт.

*-1

31M9-10130

SWING MOTOR UNIT

1шт.

1

XKAY01118

BODY

1шт.

K2

XKAY00116

SEAL-OIL

1шт.

*-11

XKAY00416

ROTARY KIT

1шт.

*-111

XKAY00417

CYLINDER BLOCK KIT

1шт.

N3

XKAY01119

CYLINDER BLOCK

NOT

1шт.

N8

XKAY00124

SPRING

NOT

9шт.

N16

XKAY00125

PLATE-VALVE

NOT

1шт.

*-112

XKAY00418

RETAINER KIT

1шт.

N9

XKAY00160

PLATE-SET

NOT

1шт.

N11

XKAY00129

GUIDE-BALL

NOT

1шт.

*-113

XKAY00419

PISTON KIT

1шт.

N10

XKAY00117

PISTON SHOE ASSY

NOT

9шт.

4

XKAY00120

SHAFT

1шт.

5

XKAY00121

BEARING-TAPER

1шт.

6

XKAY00122

BUSHING

1шт.

7

XKAY00123

PLATE-SHOE

1шт.

12

XKAY01120

REAR COVER

1шт.

13

XKAY00131

PIN

2шт.

K14

XKAY00420

O-RING

1шт.

15

XKAY00133

BEARING-TAPER

1шт.

*-12

XKAY01121

RELIEF VALVE ASSY KIT

2шт.

17

XKAY01122

RELIEF VALVE ASSY

1шт.

K23

XKAY00141

RING-BACK UP

1шт.

K24

XKAY00310

O-RING

1шт.

K38

XKAY00423

O-RING

1шт.

K39

XKAY00157

RING-BACK UP

1шт.

18

XKAY00136

BOLT-SOCKET

4шт.

19

XKAY00137

PLUG

1шт.

20

XKAY00138

PLUG

1шт.

K21

XKAY00267

O-RING

1шт.

22

XKAY00139

SHIM

ARшт.

25

XKAY00143

PLATE-FRICTION

1шт.

26

XKAY00144

PLATE

1шт.

27

XKAY00145

PISTON-PARKING

1шт.

K28

XKAY00422

O-RING

2шт.

29

XKAY00147

SPRING

18шт.

30

XKAY00148

VALVE-TIME DELAY

1шт.

31

XKAY00149

BOLT-WRENCH

3шт.

32

XKAY00150

PLUG

2шт.

K33

XKAY00256

O-RING

2шт.

34

XKAY00152

VALVE

2шт.

35

XKAY00153

SPRING

2шт.

36

XKAY00154

PLUG

2шт.

K37

XKAY00247

O-RING

2шт.

40

XKAY01123

NAME PLATE

1шт.

41

XKAY00159

RIVET

2шт.

*-2

@

SWING REDUCTION GEAR

NOT

2шт.

K

XKAY00414

SEAL KIT

SEE ILLUST

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
