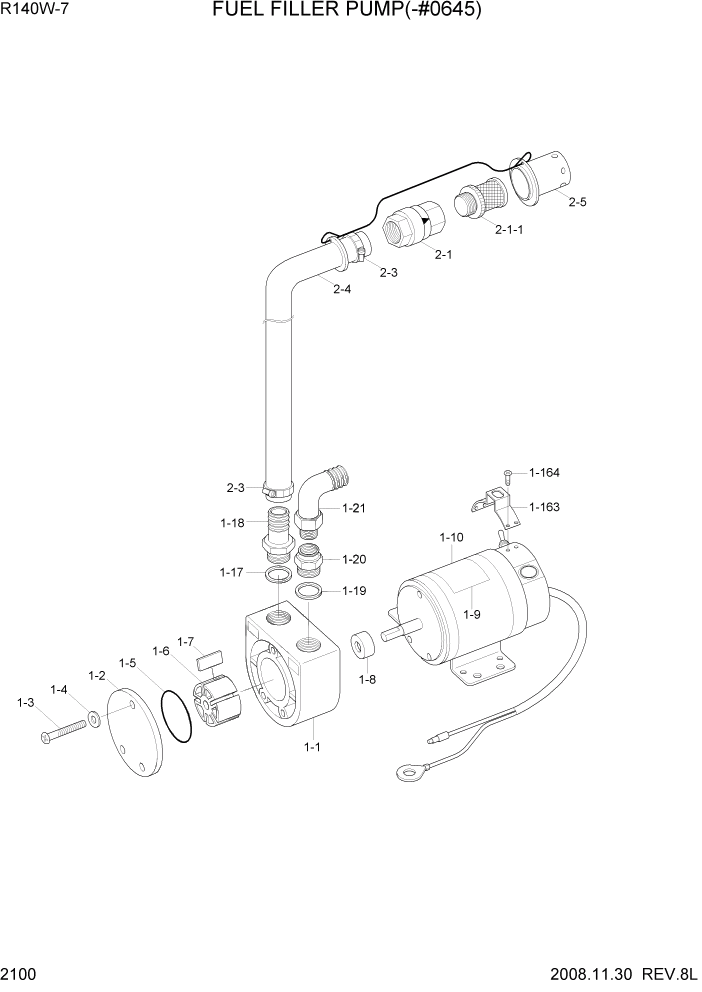

Запчасти Hyundai R140W7 PAGE 2100 FUEL FILLER PUMP(-#0645) ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

*

21N6-20311

FUEL FILLER PUMP

#0645

1шт.

1

21N6-20301

PUMP & MOTOR ASSY

1шт.

N1-1

@

BODY

NOT

1шт.

N1-2

@

COVER

NOT

1шт.

N1-3

@

SCREW

NOT

3шт.

N1-4

@

WASHER-SPRING

NOT

3шт.

K1-5

21EM-45050

O-RING

1шт.

K1-6

21EM-45060

ROTOR

1шт.

K1-7

21EM-45070

PLATE-VANE

5шт.

K1-8

21EM-45080

SEAL-OIL

1шт.

N1-9

21EM-45090

DECAL

NOT

1шт.

N1-10

@

HOUSING-MOTOR

NOT

1шт.

N1-16

21EM-45100

BOX-SWITCH

NOT

1шт.

1-163

21EM-45300

COVER-SWITCH

1шт.

1-164

S161-050166

SCREW-CROSS R/ROUND

4шт.

1-17

21EM-45500

WASHER-AL

2шт.

1-18

21EM-45600

FITTING

1шт.

1-19

21EM-45700

FITTING

1шт.

1-2

21EM-45800

NUT-ELBOW

1шт.

1-21

21EM-45900

ELBOW

1шт.

2

21EM-46400

HOSE ASSY

1шт.

2-1

21M5-50260

VALVE-CHECK

4шт.

2-1-1

2P1-SP-01

STRAINER ASSY

1шт.

2-3

S520-027000

CLAMP-HOSE

1шт.

2-4

21EM-46101

HOSE

1шт.

2-5

21EM-46300

CAP ASSY

1шт.

K

21EM-46201

SERVICE KIT

SEE ILLUST

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
