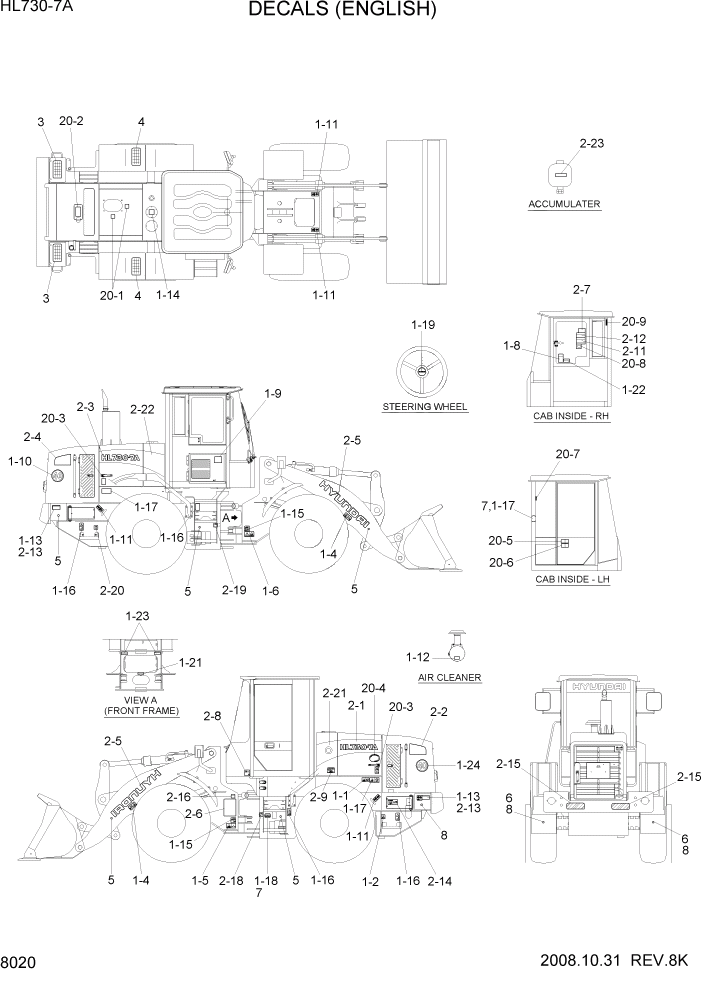

Запчасти Hyundai HL730-7A PAGE 8020 DECALS(ENGLISH) ДРУГИЕ ЧАСТИ

1

92LF-00010

DECAL KIT(A)

#0051

1шт.

1

92LF-00021

DECAL KIT(A)

#0052

1шт.

1-1

91LB-01110

DECAL-START MOTOR

1шт.

1-2

91LB-01190

DECAL-DRAIN/REMOTE

1шт.

1-4

91LB-01210

DECAL-BUCKET STOPPER

2шт.

1-5

91LB-01260

DECAL-STEER WARN/LH

1шт.

1-6

91LB-01270

DECAL-STEER WARN/RH

1шт.

1-7

91LB-01280

ROPS PLATE

1шт.

1-8

91LF-02300

DECAL-C/IDEOGRAM

1-LEVER RCV

1шт.

1-8

91LF-02310

DECAL-C/IDEOGRAM

2-LEVER RCV

1шт.

1-9

91LF-01320

DECAL-AIRCON FILTER

1шт.

1-1

91L7-00360

DECAL-SPEED LIMIT

EUROPE ONLY

2шт.

1-11

94L3-00420

SLINGING IDEOGRAM

#0051

4шт.

1-11

92LB-14000

DECAL-LIFT & TIE

#0052

4шт.

1-12

91N6-01102

AIR CLEANER FILTER

1шт.

1-13

91N6-02120

DECAL-BATT ACCIDENT

2шт.

1-14

91N6-03111

HYD OIL LUBR

1шт.

1-15

91N6-03130

DECAL-H/PRESSURE HOSE

2шт.

1-16

91N6-03140

FALLING

4шт.

1-17

91N6-07121

SHEARING

2шт.

1-18

91E1-14110

NAME PLATE

1шт.

1-18

91E1-14130

NAME PLATE

EUROPE

1шт.

1-19

91LB-08110

DECAL-STEERING WHEEL

1шт.

1-21

91LH-01220

DECAL-GREASE CENTER

1шт.

1-22

91N6-07390

TURBOCHARGER

1шт.

R1-23

91LB-01360

DECAL-RIDE CONTROL

RIDE CONTROL

2шт.

2

92LG-01100

DECAL KIT(B)

HL730-7A #0027

1шт.

2

92LG-01101

DECAL KIT(B)

HL730-7A #0028 - #0050

1шт.

2

92LG-01102

DECAL KIT(B)

HL730-7A #0051

1шт.

2

92LG-01200

DECAL KIT(B)

HL730XTD-7A #0027

1шт.

2

92LG-01201

DECAL KIT(B)

HL730XTD-7A #0028 - #0050

1шт.

2

92LG-01202

DECAL KIT(B)

HL730XTD-7A #0051

1шт.

2-1

92LG-15112

DECAL-MODEL NAME-LH

1шт.

2-1

92LG-15132

DECAL-MODEL NAME-LH

1шт.

2-2

92LF-15170

MODEL NAME-LH/RR

1шт.

2-3

92LG-15122

DECAL-MODEL NAME-RH

HL730-7A

1шт.

2-3

92LG-15142

DECAL-MODEL NAME-RH

HL730XTD-7A

1шт.

2-4

92LF-15180

MODEL NAME-RH/RR

1шт.

2-5

91N6-23100

DECAL-TRADE MARK

2шт.

2-6

92LG-10710

DECAL-S/INSTRUCTION

#0050

1шт.

2-6

92LG-10711

DECAL-S/INSTRUCTION

#0051

1шт.

2-7

92LG-10510

DECAL-SPEC SHEET

HL730-7A

1шт.

2-7

92LG-10520

DECAL-SPEC SHEET

HL730XTD-7A

1шт.

2-8

91N6-22130

DECAL-NOISE LWA/103DB

EUROPE

1шт.

2-9

91LB-01130

DECAL-HYD OIL LEVEL

1шт.

2-11

91LB-01250

DECAL-ROPS CAB

1шт.

2-12

91LB-01290

DECAL-REF MANUAL

1шт.

2-13

91LB-01350

ECU CONNECTOR

2шт.

2-14

91N6-01131

FUELING

1шт.

2-15

91LB-01400

DECAL-K/CLEAR/REFLECT

2шт.

2-16

91LB-02150

DECAL-GREASE(A)

1шт.

2-17

91LB-03160

DECAL-GREASE(B)

1шт.

2-18

91LB-01170

DECAL-GREASE(C)

1шт.

2-19

91LB-01180

DECAL-GREASE(D)

1шт.

2-2

91LB-01370

DECAL-DRAIN/ENGINE

1шт.

2-21

92LG-15190

M/NAME-LH/HYD TANK

1шт.

2-22

92LG-15200

M/NAME-RH/HYD TANK

1шт.

2-23

91N6-03200

DECAL-ACCUMULATER

#0028

4шт.

R2-23

91N6-03200

DECAL-ACCUMULATER

RIDE CONTROL #0028

5шт.

3

91E1-26300

STEP TREAD

A/S ITEM

2шт.

4

91E1-26300

STEP TREAD

FULL MUD GUARD #0046

2шт.

5

21EK-10150

REFLECTOR-SIDE

6шт.

6

51EK-52990

REFLECTOR-REAR

2шт.

7

E171-1246

RIVET

8шт.

8

S403-05200B

WASHER-PLAIN

2шт.

20

92LB-00080

DECAL KIT-A/S

1шт.

20-1

91N6-01111

TURBO COVER

2шт.

20-2

91N6-01121

DECAL-RADIATOR CAP

1шт.

20-3

91N6-07112

STAY FIX

2шт.

20-4

91E1-27110

LOW EMISSION ENG

1шт.

20-5

91LB-01230

DECAL-MAX H/REACH

1шт.

20-6

91LB-01240

DECAL-ROLL OVER

1шт.

20-7

91LB-01340

DECAL-HAMMER

1шт.

20-8

91N6-07261

ALTERNATE EXIT

1шт.

20-9

91N6-07290

DECAL-FIRE

1шт.
