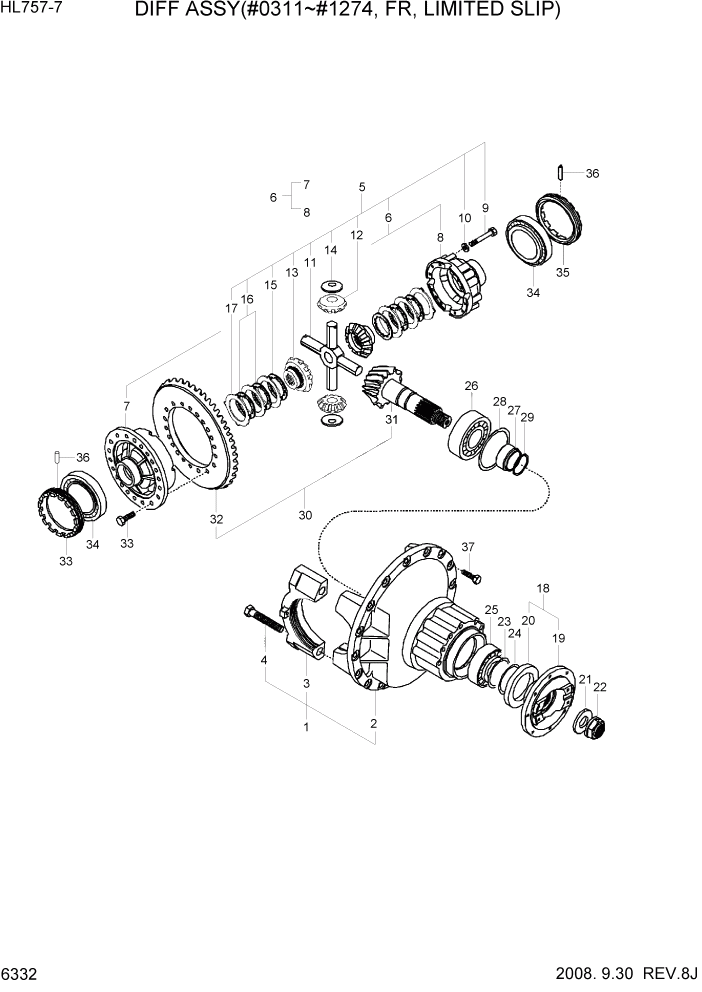

Запчасти Hyundai HL757-7 PAGE 6332 DIFF ASSY(#0311-#1274, FR, LIMITED SLIP) СИЛОВАЯ СИСТЕМА

*

XKBQ-00530

DIFF ASSY-FRONT

LIMITED SLIP #0311 - #1101

1шт.

*

XKBQ-00608

DIFF ASSY-FRONT

LIMITED SLIP #1102 - #1274

1шт.

1

XKBQ-00379

CARRIER ASSY

1шт.

N2

XKBQ-00380

CARRIER-FRONT

NOT

1шт.

N3

XKBQ-00295

CAP

NOT

2шт.

4

XKBQ-00296

BOLT-HEX

4шт.

5

XKBQ-00531

DIFF ASSY-SMT

1шт.

6

XKBQ-00532

CASE ASSY-FRONT

1шт.

N7

XKBQ-00533

CASE-LH,FRONT

NOT

1шт.

N8

XKBQ-00534

CASE-RH,FRONT

NOT

1шт.

9

XKBQ-00535

BOLT-HEX HD

16шт.

10

XKBQ-00481

WASHER-PLAIN

16шт.

11

XKBQ-00310

SPIDER

1шт.

12

XKBQ-00309

PINION-DIFF

4шт.

13

XKBQ-00523

SIDE GEAR

2шт.

14

XKBQ-00312

WASHER-THRUST

4шт.

15

XKBQ-00524

PLATE-FRICTION

2шт.

16

XKBQ-00525

PLATE-FRICTION

4шт.

17

XKBQ-00529

DISC(3.3T)

ARшт.

17

XKBQ-00528

DISC(3.2T)

6шт.

17

XKBQ-00527

DISC(3.1T)

ARшт.

17

XKBQ-00526

DISC(3.0T)

ARшт.

18

XKBQ-00381

FLANGE ASSY

1шт.

N19

XKBQ-00382

FLANGE

NOT

1шт.

N20

XKBQ-00383

COVER-DUST

NOT

1шт.

21

XKBQ-00384

HOLDER

2шт.

22

XKBQ-00027

NUT

2шт.

23

XKBQ-00385

SEAL-OIL

1шт.

24

XKBQ-00386

SEAL-GAMMA

1шт.

25

XKBQ-00387

BEARING

1шт.

26

XKBQ-00388

BEARING

1шт.

27

XKBQ-00392

SPACER(47.275)

ARшт.

27

XKBQ-00391

SPACER(47.250)

ARшт.

27

XKBQ-00390

SPACER(47.225)

ARшт.

27

XKBQ-00389

SPACER(47.200)

1шт.

28

XKBQ-00393

SHIM(0.1)

#0001

ARшт.

28

XKBQ-00394

SHIM(0.2)

#0001

ARшт.

28

XKBQ-00393

SHIM(0.1)

1шт.

29

XKBQ-00328

SHIM(1.9)

ARшт.

29

XKBQ-00327

SHIM(1.8)

ARшт.

29

XKBQ-00326

SHIM(1.7)

ARшт.

29

XKBQ-00325

SHIM(1.5)

ARшт.

29

XKBQ-00324

SHIM(1.3)

1шт.

29

XKBQ-00323

SHIM(1.1)

ARшт.

29

XKBQ-00322

SHIM(1.0)

1шт.

30

XKBQ-00396

SET-BEVEL

#1109

1шт.

30

XKBQ-00599

SET-BEVEL

#1110

1шт.

N31

XKBQ-00397

PINION-BEVEL

NOT #1109

1шт.

N31

XKBQ-00600

PINION-BEVEL

NOT #1110

1шт.

N32

XKBQ-00398

GEAR-BEVEL RING

NOT #1109

1шт.

N32

XKBQ-00601

GEAR-BEVEL RING

NOT #1110

1шт.

33

XKBQ-00399

BOLT-HEX

16шт.

34

XKBQ-00304

BEARING

2шт.

35

XKBQ-00303

NUT-ADJUSTING

2шт.

36

XKBQ-00067

PIN-SPRING

2шт.

37

XKBQ-00289

BOLT-HEX

16шт.

N

@

AR

NOT
