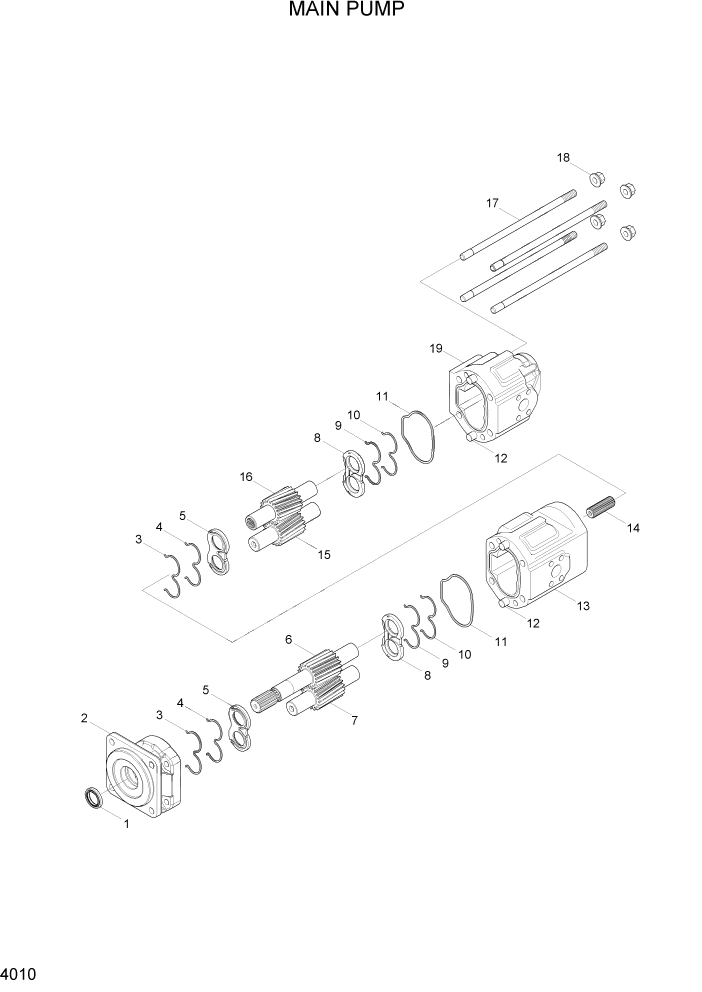

Запчасти Hyundai HL757-7 PAGE 4010 MAIN PUMP ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31LD-00010

MAIN PUMP

1шт.

NK1

P9445000101

SHAFT SEAL-VITON

NOT

1шт.

N2

P22X5000500

ADAPTER

NOT

1шт.

NK3

P8991000371

SEAL-BACK UP

NOT

2шт.

NK4

P55X5000001

SEAL/O-RING

NOT

2шт.

NK5

P50X5000002

WEARPLATE

NOT

2шт.

N6

P62X5051C00

DRIVE GEAR

NOT

1шт.

N7

P60X5051000

DRIVEN GEAR

NOT

1шт.

NK8

P50X5000001

WEARPLATE

NOT

2шт.

NK9

P55X5000001

SEAL/O-RING

NOT

2шт.

NK10

P8991000361

SEAL-BACK UP

NOT

2шт.

NK11

P9119000841

SEAL-INTERFACE

NOT

2шт.

N12

P9093000121

DOWEL

NOT

4шт.

N13

P33X5051EC0

FRONT BODY

NOT

1шт.

N14

P7407000781

COUPLING-SPLINE

NOT

1шт.

N15

P60X5051000

DRIVEN GEAR

NOT

1шт.

N16

P64X5051000

DRIVE GEAR

NOT

1шт.

N17

P9153000022

STUD

NOT

4шт.

N18

P9709000061

NUT-FLANGED

NOT

4шт.

N19

P34X5051AC0

REAR BODY

NOT

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.

K

SKX5002

SEAL KIT

2шт.
