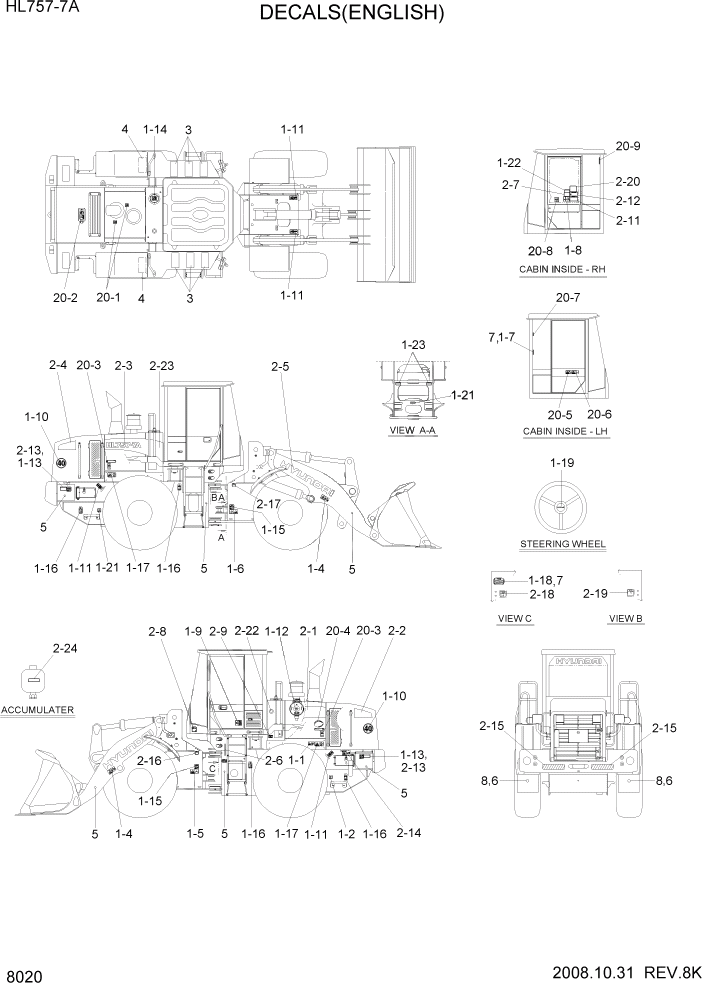

Запчасти Hyundai HL757-7A PAGE 8020 DECALS(ENGLISH) ДРУГИЕ ЧАСТИ

1

92LB-00012

DECAL KIT(A)

#0339

1шт.

1

92LB-00013

DECAL KIT(A)

#0340

1шт.

1-1

91LB-01110

DECAL-START MOTOR

1шт.

1-2

91LB-01190

DECAL-DRAIN/REMOTE

HYDRAULIC OIL

1шт.

1-4

91LB-01210

DECAL-BUCKET STOPPER

1шт.

1-5

91LB-01260

DECAL-STEER WARN/LH

1шт.

1-6

91LB-01270

DECAL-STEER WARN/RH

1шт.

1-7

91LB-01280

ROPS PLATE

1шт.

1-8

91LB-01300

CONTROL IDEOGRAM

1-LEVER RCV

1шт.

1-8

91LB-01310

CONTROL IDEOGRAM

2-LEVER RCV

1шт.

1-9

91LB-01320

DECAL-AIRCON FILTER

1шт.

1-1

91L7-00360

DECAL-SPEED LIMIT

EUROPE ONLY

2шт.

1-11

94L3-00420

SLINGING IDEOGRAM

#0339

4шт.

1-11

92LB-14000

DECAL-LIFT & TIE

#0340

4шт.

1-12

91N6-01102

AIR CLEANER FILTER

1шт.

1-13

91N6-02120

DECAL-BATT ACCIDENT

2шт.

1-14

91N6-03111

HYD OIL LUBR

1шт.

1-15

91N6-03130

DECAL-H/PRESSURE HOSE

2шт.

1-16

91N6-03140

FALLING

4шт.

1-17

91N6-07121

SHEARING

2шт.

1-18

91E1-14110

NAME PLATE

1шт.

1-18

91E1-14130

NAME PLATE

EUROPE ONLY

1шт.

1-19

91LB-08110

DECAL-STEERING WHEEL

1шт.

1-21

91LH-01220

DECAL-GREASE CENTER

1шт.

1-22

91N6-07390

TURBOCHARGER

1шт.

R1-23

91LB-01360

DECAL-RIDE CONTROL

RIDE CONTROL

2шт.

2

92LD-01101

DECAL KIT(B)

HL757-7A #0072

1шт.

2

92LD-01102

DECAL KIT(B)

HL757-7A #0073

1шт.

2

92LD-01201

DECAL KIT(B)

HL757XTD-7A #0072

1шт.

2

92LD-01202

DECAL KIT(B)

HL757XTD-7A #0073 - #0339

1шт.

2

92LD-01203

DECAL KIT(B)

HL757XTD-7A #0340

1шт.

2-1

92LD-15112

MODEL NAME-LH/FR

HL757-7A

1шт.

2-1

92LD-15132

MODEL NAME-LH/FR

HL757XTD-7A

1шт.

2-2

92LD-15170

MODEL NAME-LH/RR

1шт.

2-3

92LD-15122

MODEL NAME-RH/FR

HL757-7A

1шт.

2-3

92LD-15142

MODEL NAME-RH/FR

HL757XTD-7A

1шт.

2-4

92LD-15180

MODEL NAME-RH/RR

1шт.

2-5

91N6-23100

DECAL-TRADE MARK

2шт.

2-6

92LD-10710

DECAL-S/INSTRUCTION

#0339

1шт.

2-6

92LD-10712

DECAL-S/INSTRUCTION

#0340

1шт.

2-7

92LD-10510

DECAL-SPEC SHEET

HL757-7A

1шт.

2-7

92LD-10520

DECAL-SPEC SHEET

HL757XTD-7A

1шт.

2-8

91N6-22150

NOISE LEVEL-LWA

EUROPE ONLY

1шт.

2-9

91LB-01130

DECAL-HYD OIL LEVEL

1шт.

2-11

91LB-01250

DECAL-ROPS CAB

1шт.

2-12

91LB-01290

DECAL-REF MANUAL

1шт.

2-13

91LB-01350

ECU CONNECTOR

2шт.

2-14

91N6-01131

FUELING

1шт.

2-15

91LB-01410

DECAL-K/CLEAR/REFLECT

2шт.

2-16

91LB-02110

DECAL-GREASE(A)

1шт.

2-17

91LB-02120

DECAL-GREASE(B)

1шт.

2-18

91LB-01170

DECAL-GREASE(C)

1шт.

2-19

91LB-01180

DECAL-GREASE(D)

1шт.

2-2

91LC-11180

DECAL-START PROCEDURE

1шт.

2-21

91LB-01370

DECAL-DRAIN/ENGINE

ENGINE OIL

1шт.

2-22

92LD-15210

DECAL-LH/HYD TANK

1шт.

2-23

92LD-15220

DECAL-RH/HYD TANK

1шт.

2-24

91N6-03200

DECAL-ACCUMULATER

#0073

4шт.

R2-24

91N6-03200

DECAL-ACCUMULATER

RIDE CONTROL #0073

5шт.

3

91E1-26300

STEP TREAD

#0300

8шт.

3

91E1-26300

STEP TREAD

A/S ITEM #0301

10шт.

4

91E1-26300

STEP TREAD

FULL MUD GUARD #0300

2шт.

5

21EK-10150

REFLECTOR-SIDE

6шт.

6

51EK-52990

REFLECTOR-REAR

2шт.

7

E171-1246

RIVET

8шт.

8

S403-05200B

WASHER-PLAIN

2шт.

20

92LB-00080

DECAL KIT-A/S

1шт.

20-1

91N6-01111

TURBO COVER

2шт.

20-2

91N6-01121

DECAL-RADIATOR CAP

1шт.

20-3

91N6-07112

STAY FIX

2шт.

20-4

91E1-27110

LOW EMISSION ENG

1шт.

20-5

91LB-01230

DECAL-MAX H/REACH

1шт.

20-6

91LB-01240

DECAL-ROLL OVER

1шт.

20-7

91LB-01340

DECAL-HAMMER

1шт.

20-8

91N6-07261

ALTERNATE EXIT

1шт.

20-9

91N6-07290

DECAL-FIRE

1шт.
