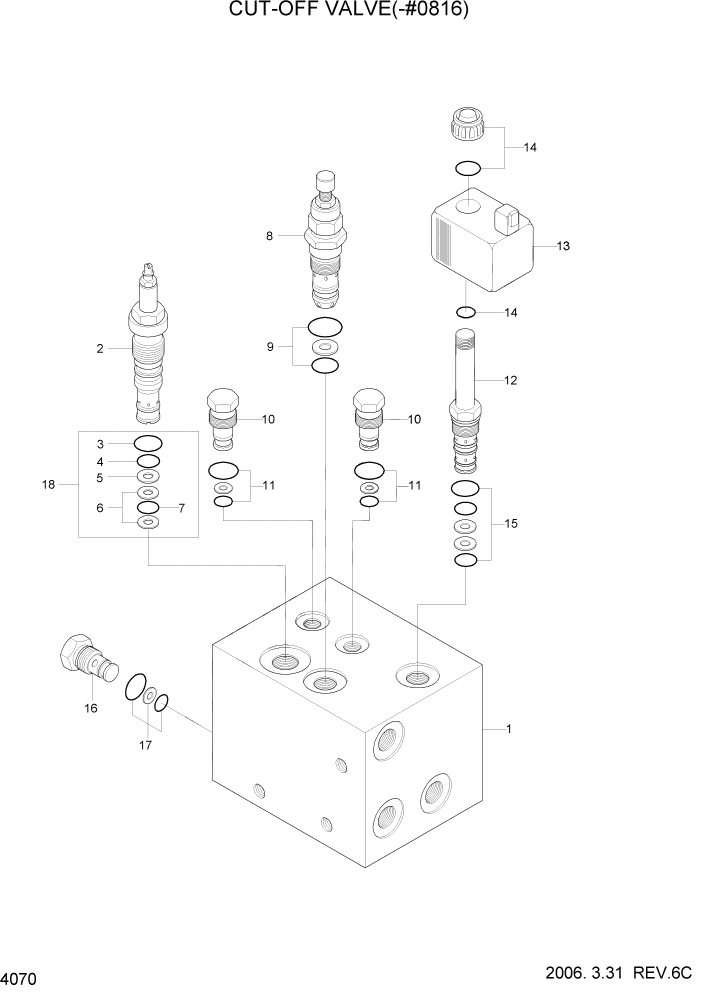

Запчасти Hyundai HL760-7 PAGE 4070 CUT OFF VALVE(-#0816) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31LB-40021

CUT-OFF VALVE

#0504

1шт.

*

31LB-40022

CUT-OFF VALVE

#0505 - #0816

1шт.

1

XKAL-00005

MANIFOLD

#0504

1шт.

1

XKAL-00052

MANIFOLD

#0505

1шт.

2

XKAL-00006

CUT-OFF VALVE

1шт.

N3

XKAL-00007

O-RING

NOT #0001

1шт.

N4

XKAL-00008

O-RING

NOT #0001

1шт.

N5

XKAL-00009

BACK-UP RING

NOT #0001

1шт.

N6

XKAL-00010

BACK-UP RING

NOT #0001

2шт.

N7

XKAL-00011

O-RING

NOT #0001

1шт.

8

XKAL-00012

RELIEF VALVE

1шт.

9

XKAL-00013

SEAL KIT

1шт.

10

XKAL-00014

CHECK VALVE

2шт.

11

XKAL-00015

SEAL KIT

2шт.

12

XKAL-00016

SOLENOID VALVE

#0504

1шт.

12

XKAL-00053

SOLENOID VALVE

#0505

1шт.

14

@

COIL CAP KIT

NOT #0001

1шт.

13

XKAL-00050

COIL-2

#0001 - #0504

1шт.

13

XKAL-00043

COIL

#0505

1шт.

14

@

COIL CAP KIT

NOT

1шт.

15

XKAL-00017

SEAL KIT

1шт.

16

XKAL-00018

CHECK VALVE

1шт.

17

XKAL-00019

SEAL KIT

1шт.

18

XKAL-00067

SEAL KIT

INCL ITEM 3-7 #0001

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
