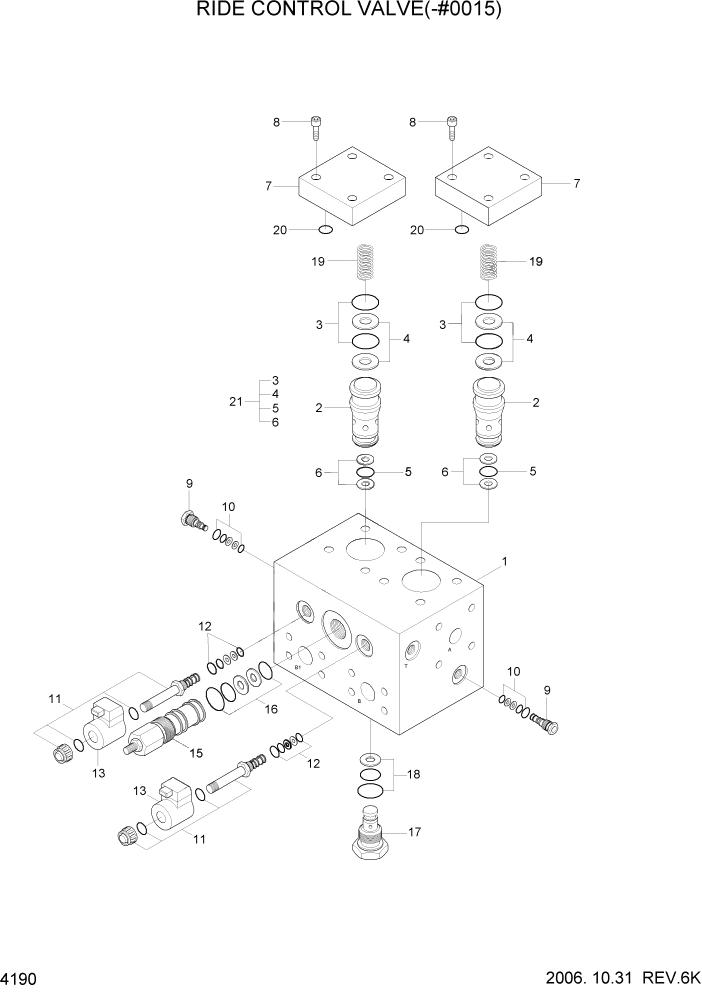

Запчасти Hyundai HL780-7A PAGE 4190 RIDE CONTROL VALVE(-#0015) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31LB-90000

RIDE CONTROL VALVE

#0015

1шт.

1

XKAL-00020

MAINFOLD

1шт.

2

XKAL-00021

LOGIC VALVE

2шт.

N3

XKAL-00022

O-RING

NOT #0001

4шт.

N4

XKAL-00023

BACK-UP RING

NOT #0001

4шт.

N5

XKAL-00024

O-RING

NOT #0001

2шт.

N6

XKAL-00025

BACK-UP RING

NOT #0001

4шт.

7

XKAL-00056

LOGIC COVER

2шт.

8

XKAL-00026

BOLT

8шт.

9

XKAL-00027

SHUTTLE VALVE

2шт.

10

XKAL-00028

SEAL KIT

2шт.

11

XKAL-00029

SOLENOID VALVE

2шт.

12

XKAL-00030

SEAL KIT

2шт.

13

XKAL-00043

COIL

2шт.

15

XKAL-00031

REDUCING VALVE

1шт.

16

XKAL-00032

SEAL KIT

1шт.

17

XKAL-00033

CHECK VALVE

1шт.

18

XKAL-00034

SEAL KIT

1шт.

19

XKAL-00057

SPRING

2шт.

20

XKAL-00061

O-RING

2шт.

21

XKAL-00069

SEAL KIT

INCL ITEM 3-6 #0001

2шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
