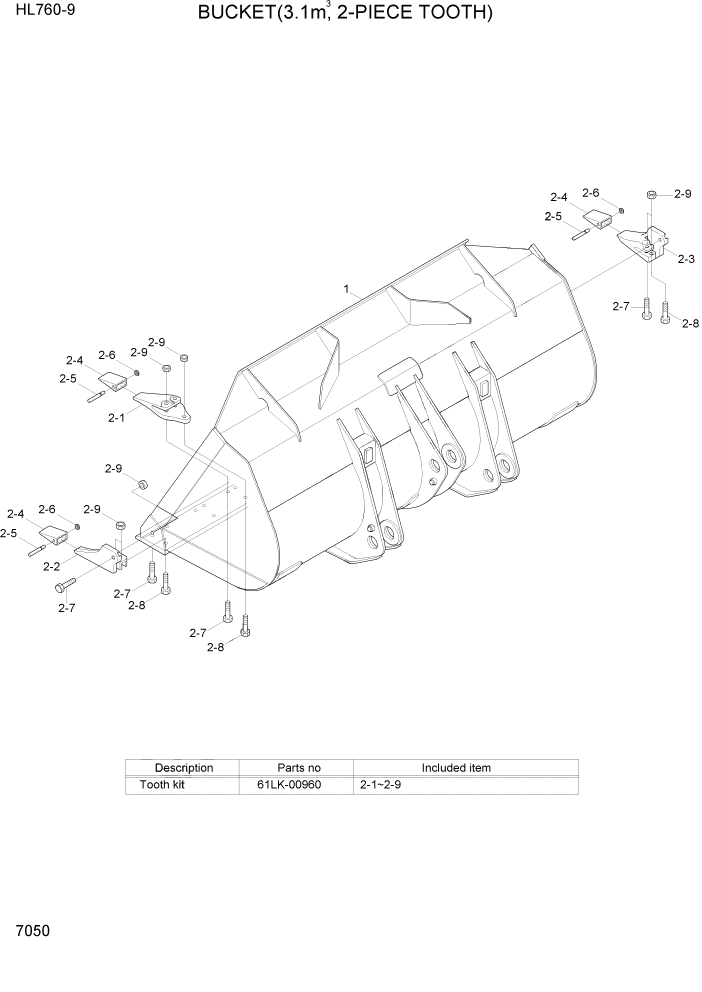

Запчасти Hyundai HL760-9 PAGE 7050 BUCKET(3.1M3, 2-PIECE TOOTH) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

61LL-00700

BUCKET ASSY

1шт.

1

61LL-00031

BUCKET WA

1шт.

2

61LK-00960

TOOTH KIT(2-PIECE)

SEE ILLUST

1шт.

2-1

64L1-01200GG

TOOTH ADAPTER-CENTER

7шт.

2-2

64L1-01210GG

TOOTH ADAPTER-LH

1шт.

2-3

64L1-01220GG

TOOTH ADAPTER-RH

1шт.

2-4

61L6-00800GG

TOOTH POINT

9шт.

2-5

61L6-00810

PIN-TOOTH

9шт.

2-6

61L6-00820

WASHER-LOCK

9шт.

2-7

61L1-3025

BOLT-TOOTH

16шт.

2-8

61L1-3027

BOLT-TOOTH

11шт.

2-9

S206-22100B

NUT-HEX

27шт.
