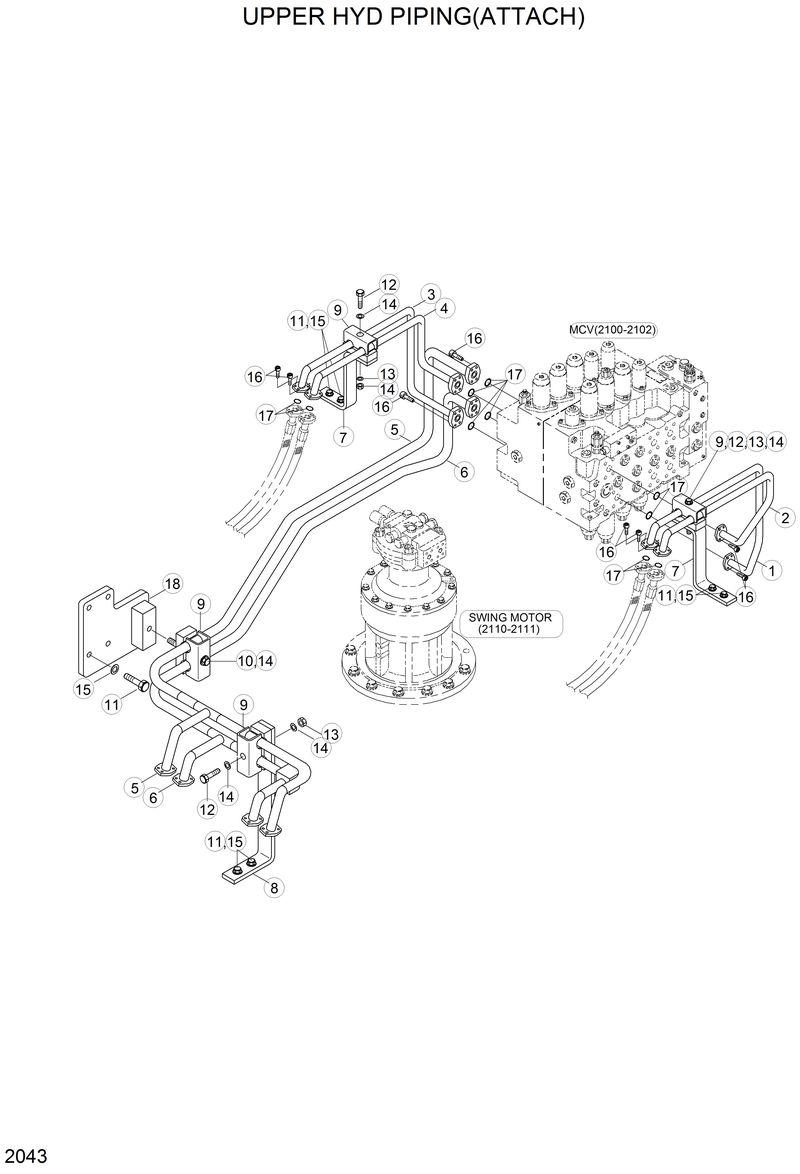

Запчасти Hyundai R210LC3LL UPPER HYD PIPING(ATTACH)

S017-100752

S017-100752-Bolt-Hex

S017-120302

S017-120302-Bolt-Hex

S017-120802

S017-120802-Bolt-Hex

1

31EM-13013

31EM-13013-Pipe Assy

10

S017-100652

S017-100652-Bolt-Hex

11

S017-120252

S017-120252-Bolt-Hex

12

S017-100852

S017-100852-Bolt-Hex

13

S205-101002

S205-101002-Nut-Hex

14

S411-100002

S411-100002-Washer-Spring

15

S411-120002

S411-120002-Washer-Spring

16

S107-100354

S107-100354-Bolt-Socket

17

CO0423A

CO0423A-O-Ring

18

31EM-13140

31EM-13140-Bracket

2

31EM-13022

31EM-13022-Pipe Assy

3

31EM-13032

31EM-13032-Pipe Assy

4

31EM-13043

31EM-13043-Pipe Assy

5

31EM-13120

31EM-13120-Pipe Assy

6

31EM-13130

31EM-13130-Pipe Assy

7

31EM-13100

31EM-13100-Bracket-Attach

8

31EM-13110

31EM-13110-Bracket-Boom

9

31EM-12170

31EM-12170-Clamp-Pipe
