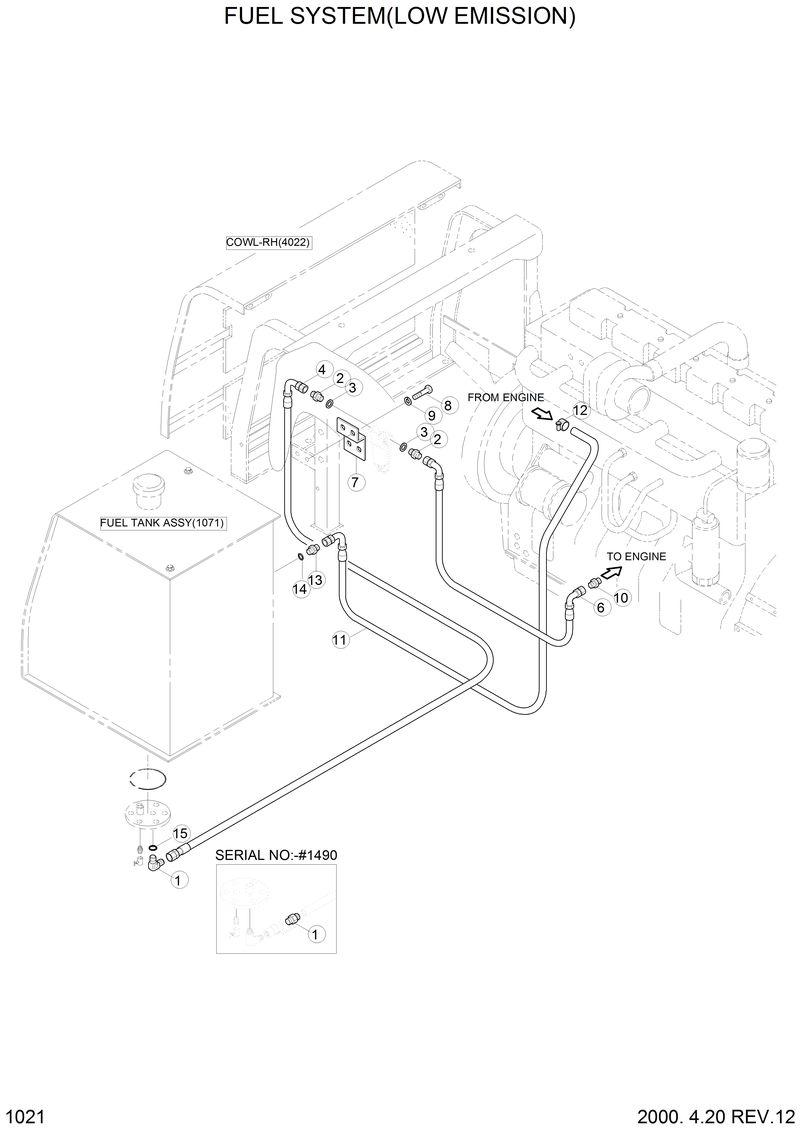

Запчасти Hyundai R210LC3LL FUEL SYSTEM(LOW EMISSION)

P020-110003

P020-110003-Elbow-90

1

P010-430004

P010-430004-Connector

10

P010-530004

P010-530004-Connector

11

11EM-52330

11EM-52330-Hose-Fuel

12

S520-015000

S520-015000-Clamp

13

P010-110012

P010-110012-Connector

14

S631-011001

S631-011001-O-Ring

15

S631-018001

S631-018001-O-Ring

2

11EM-52340

11EM-52340-Connector

3

P392-140000

P392-140000-Washer-Copper

4

11EM-52350

11EM-52350-Hose-Fuel

6

11EM-52360

11EM-52360-Hose Assy

7

11EM-52370

11EM-52370-Bracket

8

S015-080202

S015-080202-Bolt-Hex

9

S411-080002

S411-080002-Washer-Spring
