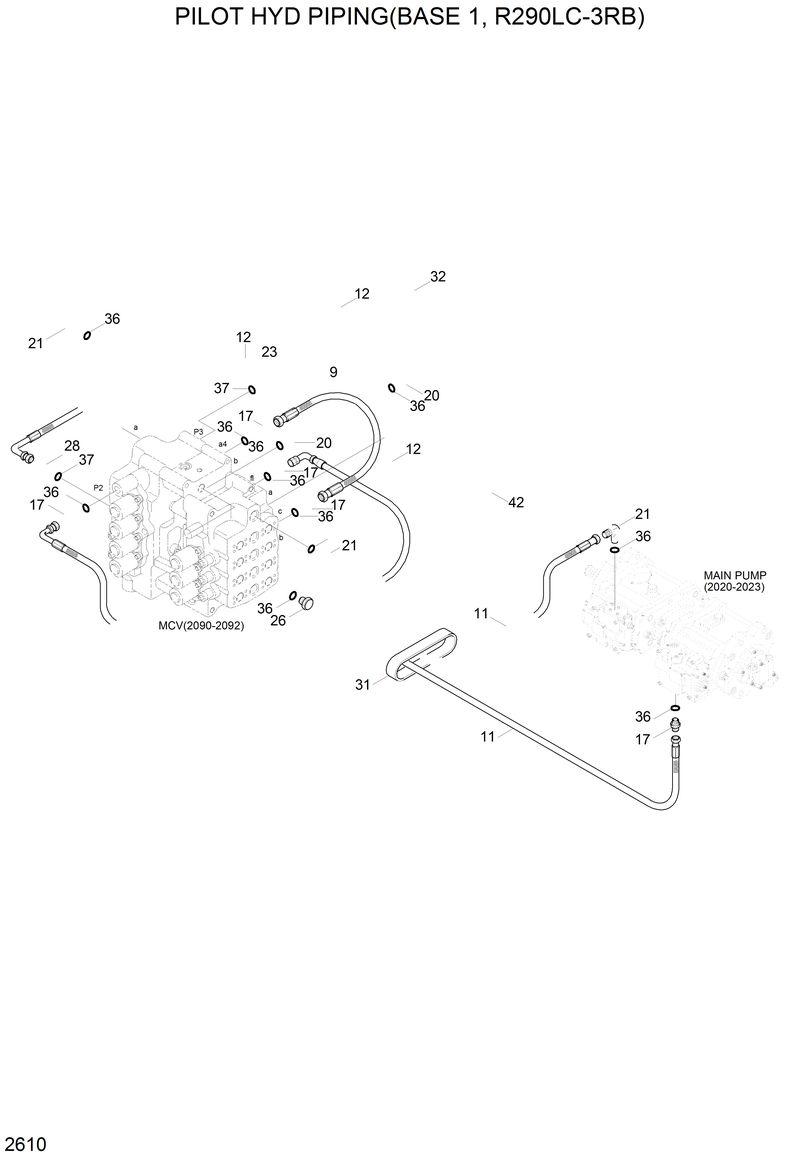

Запчасти Hyundai R290LC3LL PILOT HYD PIPING(BASE 1, R290LC-3RB)

11

P620-042046

P620-042046-Hose Assy

12

P620-047016

P620-047016-Hose Assy-Thd

17

P010-110002

P010-110002-Connector

20

P010-110009

P010-110009-Connector

21

P020-110001

P020-110001-Elbow-90

23

P020-110012

P020-110012-Elbow-90

26

P290-100103

P290-100103-Plug-Cap

28

31E9-0108

31E9-0108-Fitting

31

31E9-0140

31E9-0140-Grommet

32

31E9-20010

31E9-20010-Grommet

36

S631-011001

S631-011001-O-Ring

37

S631-014001

S631-014001-O-Ring

42

31E9-20020

31E9-20020-Grommet

9

P620-042017

P620-042017-Hose Assy
