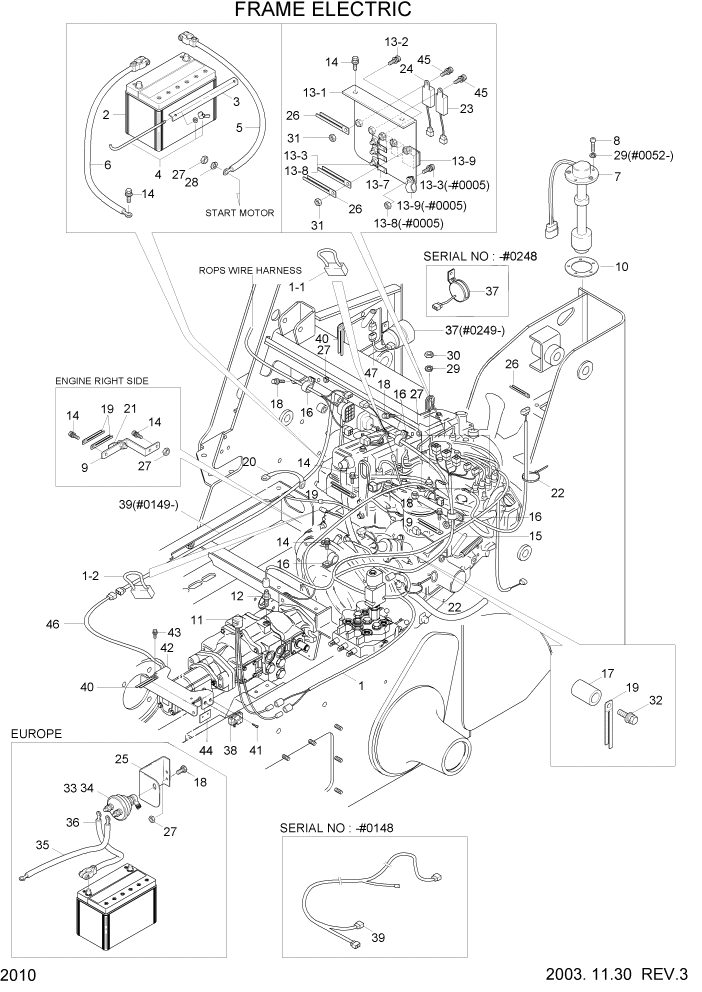

Запчасти Hyundai HSL610 PAGE 2010 FRAME ELECTRIC ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

1

21S4-02020

FRAME WIRE HARNESS

#0248

1шт.

1

21S4-02021

FRAME WIRE HARNESS

#0249

1шт.

1-1

S849-180000

FUSIBLE LINK

1шт.

1-2

S849-110000

FUSIBLE LINK

1шт.

2

21S4-01080

BATTEY ASSY

1шт.

3

21S4-01170

CLAMP-BATTERY

1шт.

4

21S4-01180

ROD-THREAD

2шт.

4-1

21S4-01280

THREAD

1шт.

4-2

S261-060002

NUT-WING

1шт.

4-3

S403-062002

WASHER-PLAIN

1шт.

5

21S4-02050

CABLE(+)-BATTERY

1шт.

6

21S4-02060

CABLE(-)-BATTERY

STD

1шт.

7

21S4-01020

FUEL SENDER ASSY

1шт.

8

S131-051546

SCREW-W/WASHER

#0051

5шт.

8

S161-050152

SCREW-RD HD

#0052

5шт.

9

21S4-01300

BKT ASSY ENG HARNESS

1шт.

10

E128-1053

GASKET

1шт.

11

21S4-01030

HORN SWITCH ASSY

HAND/FOOT C

1шт.

12

21S1-2106

TEMP SW-HYD OIL

1шт.

13

21S4-01131

RELAY BOARD ASSY

1шт.

13-1

21S4-01140

PLATE-RELAY BOARD

1шт.

13-2

S132-062546

SCREW-W/WASHER C/RD

3шт.

13-3

S033-081526

BOLT-W/WASHER HEX

#0005

4шт.

13-3

S033-081526

BOLT-W/WASHER HEX

#0006

3шт.

13-4

21E3-0004

RELAY-START

1шт.

13-5

21E3-0011

RELAY

2шт.

13-6

8053-01512

CLIP

2шт.

13-7

21E7-0606

PLATE-CONNECTOR

1шт.

13-8

S205-081002

NUT-HEX

#0005

4шт.

13-8

S205-081002

NUT-HEX

#0006

3шт.

13-9

S543-200002

CLAMP-TUBE

#0005

1шт.

13-9

22S4-02150

DECAL-STOP SOL.RELAY

#0006

1шт.

14

S035-102026

BOLT-W/WASHER HEX

7шт.

15

S033-061526

BOLT-W/WASHER HEX

1шт.

16

S543-200002

CLAMP-TUBE

5шт.

17

22S4-02110

SPACER

1шт.

18

S033-081526

BOLT-W/WASHER HEX

#0051

7шт.

18

S033-082026

BOLT-W/WASHER HEX

#0052

7шт.

19

S593-000902

CLIP-HARNESS

4шт.

20

21M5-51200

STRAP-EARTH

1шт.

21

8053-01512

CLIP

1шт.

22

S552-035146

CLAMP-BAND

6шт.

23

21S4-01200

TIMER-STOP SOLENOID

128300.7792

1шт.

24

21S4-01190

TIMER-AIR HEATER

119632.7792

1шт.

25

21S4-02130

BRACKET-MASTER SW

EUROPE

1шт.

26

S593-000652

CLIP-HARNESS

3шт.

27

S205-081002

NUT-HEX

5шт.

28

S411-080002

WASHER-SPRING

1шт.

29

S411-050002

WASHER-SPRING

#0051

1шт.

29

S411-050002

WASHER-SPRING

#0052

6шт.

30

S201-051002

NUT-HEX

1шт.

31

S541-120002

CLAMP-TUBE

1шт.

32

S033-084016

BOLT-W/WASHER HEX

1шт.

33

21L7-10500

SWITCH-MASTER

EUROPE

1шт.

34

21EN-00420

DECAL-MASTER SW

EUROPE

1шт.

35

21S4-02110

CABLE(BATT-MASTER SW)

EUROPE

1шт.

36

21S4-02120

CABLE(MASTER SW-EARTH)

EUROPE

1шт.

37

21FA-20570

BUZZER-BACK UP

BACK BUZZER #0126 - #0248

1шт.

37

21E3-2003

BUZZER-BACK UP

BACK BUZZER #0249

1шт.

38

21S4-01160

SWITCH-MICRO

BACK BUZZER #0126

2шт.

39

22S4-02190

HARNESS-BACK BUZZER

BACK BUZZER #0126 - #0148

1шт.

39

22S4-02191

HARNESS-BACK BUZZER

BACK BUZZER #0149

1шт.

40

S593-000652

CLIP-HARNESS

BACK BUZZER #0126

3шт.

41

S131-043046

SCREW-W/WASHER C/RD

BACK BUZZER #0126

4шт.

42

22S4-02201

BRACKET-BACK UP S/W

BACK BUZZER #0126 - #0309

1шт.

42

22S4-02202

BKACKET-BACK UP S/W

BACK BUZZER #0310

1шт.

43

S033-081526

BOLT-W/WASHER HEX

BACK BUZZER #0126

2шт.

44

22S4-02210

PLATE

BACK BUZZER #0126

2шт.

45

S132-062546

SCREW-W/WASHER C/RD

#0001

2шт.

46

224S-02220

W/HARNESS-MICRO SW

BACK BUZZER #0149

1шт.

47

224S-02230

W/HARNESS-EXTENSION

BACK BUZZER #0249

1шт.
