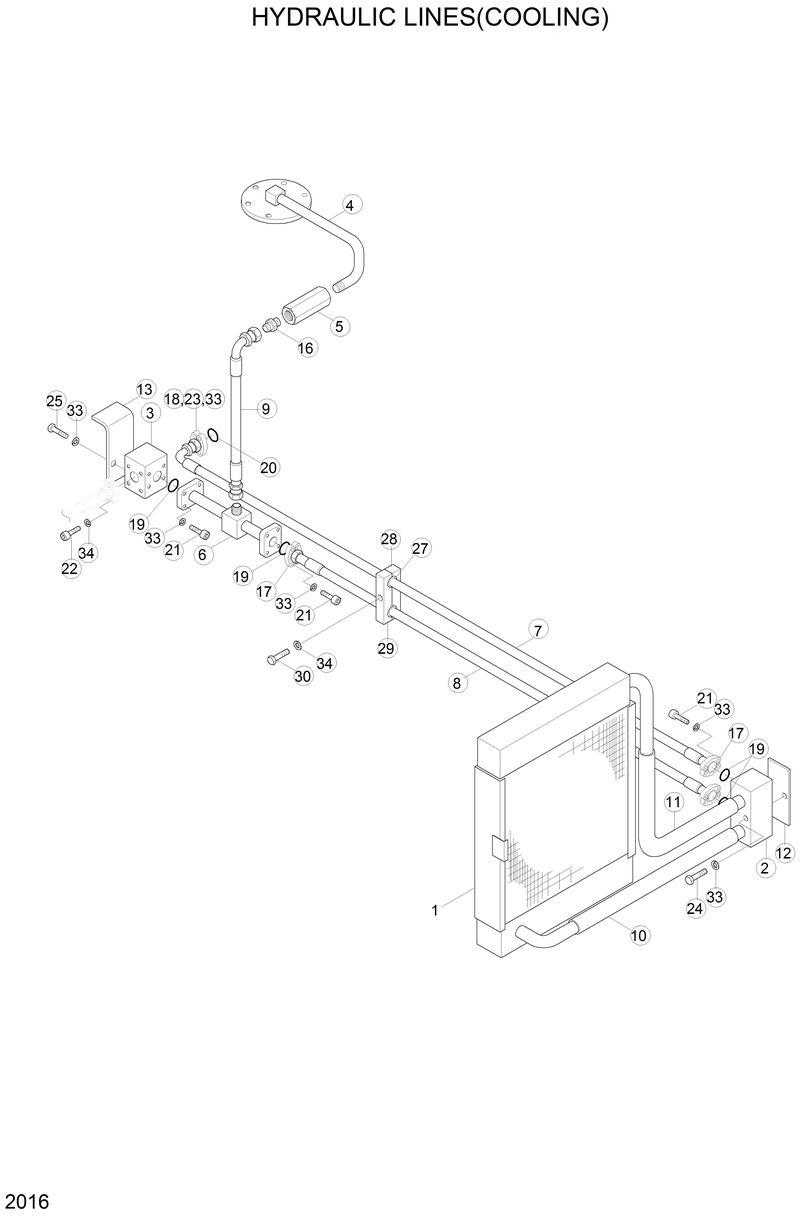

Запчасти Hyundai HL35C HYDRAULIC LINES(COOLING)

1

11E4-4003

11E4-4003-Oil Cooler Assy

10

31L1-02560

31L1-02560-Hose-Rubber

11

31L1-02570

31L1-02570-Hose Rubber

12

54L1-00520

54L1-00520-Plate

13

31L1-02370

31L1-02370-Plate

16

34L1-01790

34L1-01790-Connector

17

P173-200106

P173-200106-Flange-Split

18

P173-160104

P173-160104-Flange-Split

19

Y171-027004

Y171-027004-O-Ring

2

31L1-02580

31L1-02580-Block Wa

20

Y171-024004

Y171-024004-O-Ring

21

S109-100306

S109-100306-Bolt-Socket

22

S109-120356

S109-120356-Bolt-Socket

23

S109-100356

S109-100356-Bolt-Socket

24

S017-100952

S017-100952-Bolt-Hex

25

S017-100252

S017-100252-Bolt-Hex

27

S690-049100

S690-049100-Grommet

28

31L1-02380

31L1-02380-Clamp

29

31L1-02390

31L1-02390-Clamp

3

31L1-02320

31L1-02320-Block

30

S017-120602

S017-120602-Bolt-Hex

33

S411-100002

S411-100002-Washer-Spring

34

S411-120002

S411-120002-Washer-Spring

4

31L1-02540

31L1-02540-Cover Wa

5

E131-0116

E131-0116-Check Valve

7

31L1-02330

31L1-02330-Hose Assy

8

P680-201350

P680-201350-Hose Assy-Flg

9

P620-201011

P620-201011-Hose Assy-Thd 0x90

N6

31L1-02550

31L1-02550-Pipe Wa
