PRIORITY VALVE

Запчасти Hyundai HL750 PRIORITY VALVE

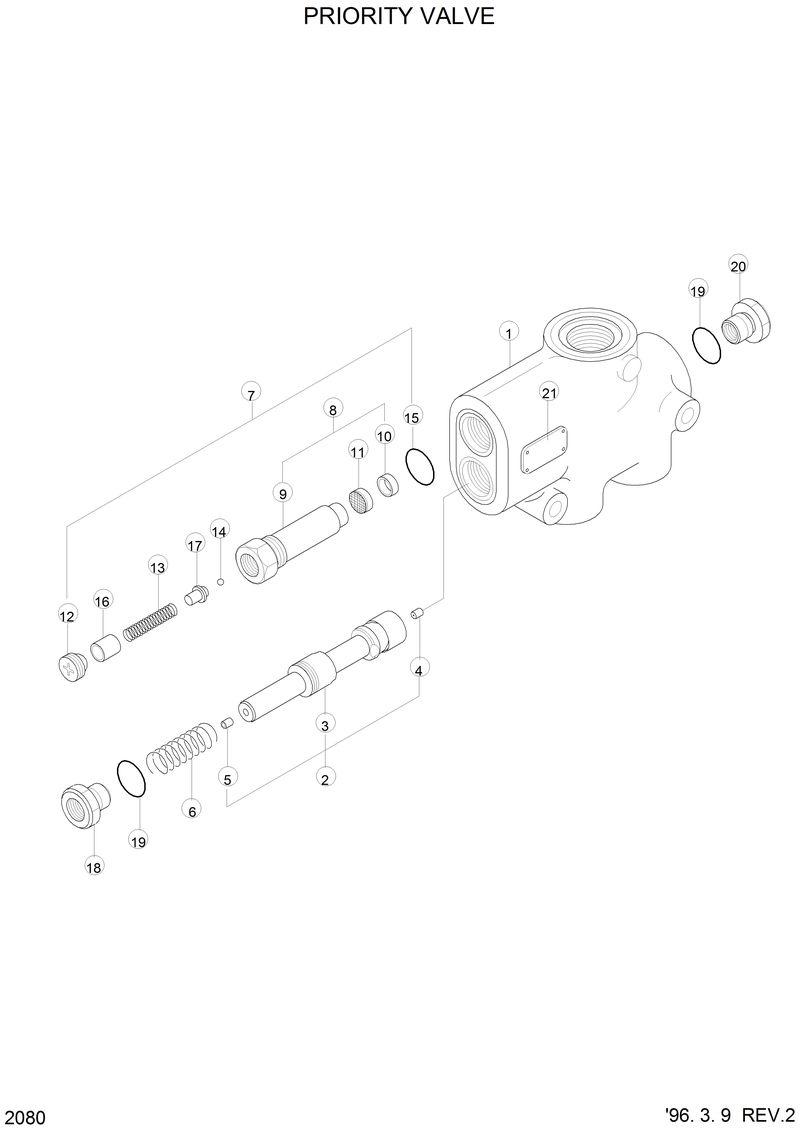

Схема запчастей Hyundai HL750 - PRIORITY VALVE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

*

34L3-01400

34L3-01400-Priority Valve

1

8729-1

8729-1-. Housing

18

9137

9137-. Plug

2

@

@-. Spool Assy

20

235045-007

235045-007-. Plug

6

BT0044A

BT0044A-. Spring-Control

N

@

@-Not Individually Supplied

N10

@

@-... Ring

N11

@

@-... Screen

N12

@

@-.. Screw

N13

@

@-.. Spring

N14

@

@-.. Ball

N15

250003-908

250003-908-.. O-Ring

N16

@

@-.. Guide

N17

@

@-.. Holder

N19

250003-910

250003-910-. O-Ring

N21

@

@-. Plate-Name

N3

@

@-.. Spool

N5

@

@-.. Orifice

N5

@

@-.. Orifice

N7

8962

8962-. Cartridge-Relief

N8

@

@-.. Body-Sub Assy

N9

@

@-... Body
