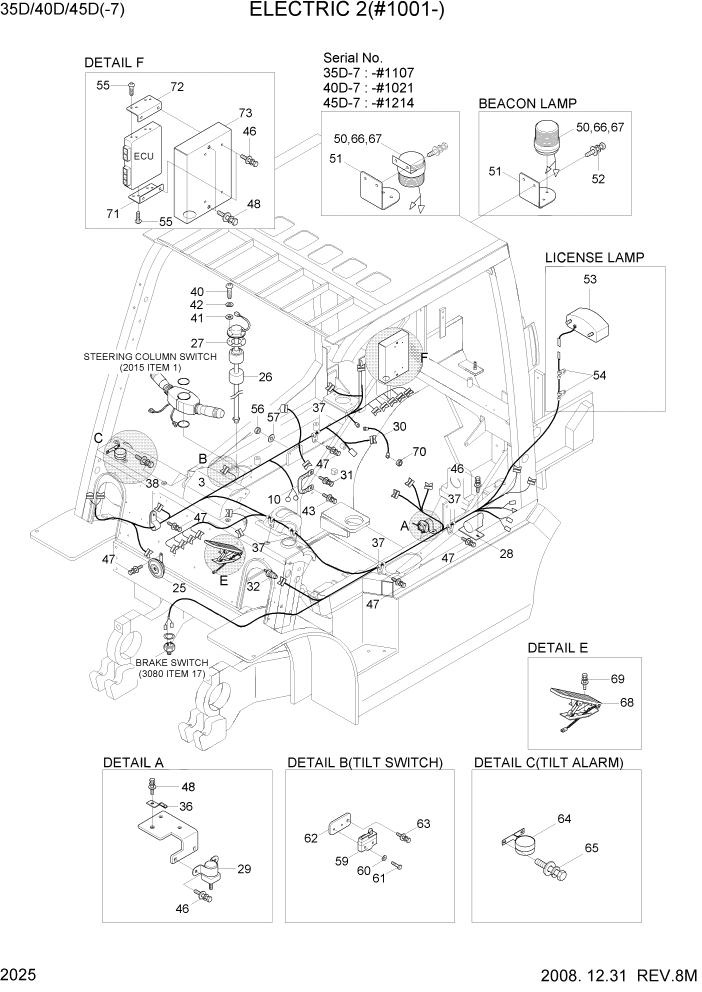

Запчасти Hyundai 35/40/45D-7 PAGE 2025 ELECTRIC 2(#1001-) ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

*

@

ELECTRIC PART

NOT #1001

1шт.

3

27FV-20011

HARNESS-FRAME

3.5TON,SEE 2055 #1039

1шт.

3

27FV-20012

HARNESS-FRAME

3.5TON,SEE 2055 #1040 - #1112

1шт.

3

27FV-20013

HARNESS-FRAME

3.5TON,SEE 2055 #1113

1шт.

3

27FV-20011

HARNESS-FRAME

4.0TON,SEE 2055 #1006

1шт.

3

27FV-20012

HARNESS-FRAME

4.0TON,SEE 2055 #1007 - #1022

1шт.

3

27FV-20013

HARNESS-FRAME

4.0TON,SEE 2055 #1023

1шт.

3

27FV-20011

HARNESS-FRAME

4.5TON,SEE 2055 #1066

1шт.

3

27FV-20012

HARNESS-FRAME

4.5TON,SEE 2055 #1067 - #1220

1шт.

3

27FV-20013

HARNESS-FRAME

4.5TON,SEE 2055 #1221

1шт.

10

21FQ-10080

STRAP-EARTH

1шт.

25

21N5-10060

HORN-HIGH

1шт.

26

21FV-10410

SENDER-FUEL

1шт.

27

E128-1053

GASKET

1шт.

28

21FD-30320

HORN-BACK

3.5TON #1012

1шт.

28

21FD-30321

BACKUP ALARM(24V)

3.5TON #1013 - #1194

1шт.

28

21FD-30322

BACKUP ALARM(24V)

3.5TON #1195

1шт.

28

21FD-30320

HORN-BACK

4.0TON #1003

1шт.

28

21FD-30321

BACKUP ALARM(24V)

4.0TON #1004 - #1038

1шт.

28

21FD-30322

BACKUP ALARM(24V)

4.0TON #1039

1шт.

28

21FD-30320

HORN-BACK

4.5TON #1025

1шт.

28

21FD-30321

BACKUP ALARM(24V)

4.5TON #1026 - #1352

1шт.

28

21FD-30322

BACKUP ALARM(24V)

4.5TON #1353

1шт.

29

21F7-20090

RELAY-START

1шт.

30

27FQ-10170

CABLE(G/R-S/MOTOR)

1шт.

31

S035-081522

BOLT-W/WASHER

2шт.

32

FAC0300110

SENSOR-T/M OIL TEMP

1шт.

36

21E7-0612

PLATE-CONNECTOR

1шт.

37

S593-001302

CLIP-HARNESS

7шт.

38

S543-240002

CLAMP-TUBE

1шт.

40

S161-040156

SCREW-CROSS R/ROUND

5шт.

41

S403-04200B

WASHER-PLAIN

5шт.

42

S411-040006

WASHER-SPRING

5шт.

43

S037-102022

BOLT-W/WASHER

1шт.

46

S035-061526

BOLT-W/WASHER

8шт.

47

S035-081526

BOLT-W/WASHER

7шт.

48

S037-102026

BOLT-W/WASHER

3шт.

50

F23842010

STROBE LAMP-RED

RED,3.5TON #1107

1шт.

50

21HA-20320

LAMP-BEACON, RED

RED,3.5TON #1108

1шт.

50

F23842010

STROBE LAMP-RED

RED,4.0TON #1021

1шт.

50

21HA-20320

LAMP-BEACON, RED

RED,4.0TON #1022

1шт.

50

F23842010

STROBE LAMP-RED

RED,4.5TON #1214

1шт.

50

21HA-20320

LAMP-BEACON, RED

RED,4.5TON #1215

1шт.

50-1

21FG-10850

GLOBE-RED

NOT SHOWN,3.5 #1107

1шт.

50-1

21FG-10850

GLOBE-RED

NOT SHOWN,4.0 #1021

1шт.

50-1

21FG-10850

GLOBE-RED

NOT SHOWN,4.5 #1214

1шт.

50-1

21HA-21120

LENS-BEACON, RED

NOT SHOWN,3.5 #1108

1шт.

50-1

21HA-21120

LENS-BEACON, RED

NOT SHOWN,4.0 #1022

1шт.

50-1

21HA-21120

LENS-BEACON, RED

NOT SHOWN,4.5 #1215

1шт.

50-2

21HA-21140

XENON LAMP

NOT SHOWN,3.5 #1108

1шт.

50-2

21HA-21140

XENON LAMP

NOT SHOWN,4.0 #1022

1шт.

50-2

21HA-21140

XENON LAMP

NOT SHOWN,4.5 #1215

1шт.

51

F12110120

BRACKET-BEACON

B/LAMP,3.5 #1107

1шт.

51

21HA-20210

PLATE

B/LAMP,3.5 #1108

1шт.

51

F12110120

BRACKET-BEACON

B/LAMP,4.0 #1021

1шт.

51

21HA-20210

PLATE

B/LAMP,4.0 #1022

1шт.

51

F12110120

BRACKET-BEACON

B/LAMP,4.5 #1214

1шт.

51

21HA-20210

PLATE

B/LAMP,4.5 #1215

1шт.

52

S037-102026

BOLT-W/WASHER

2шт.

53

21FE-10310

LAMP-LICENSE

1шт.

53-1

S860-100300

BULB

NOT SHOWN

2шт.

54

S593-000752

CLIP-HARNESS

2шт.

55

S131-051046

SCREW-W/WASHER

8шт.

56

S275-080002

NUT-SELF LOCKING

1шт.

57

S403-080002

WASHER-PLAIN

1шт.

58

F12140020

GROMMET

1шт.

59

25FQ-10250

SWITCH-MICRO

1шт.

60

S403-04200B

WASHER-PLAIN

2шт.

61

S015-040256

BOLT-HEX

2шт.

62

25FQ-10230

BRACKET-TILT S/W MT

1шт.

63

S035-081526

BOLT-W/WASHER

1шт.

64

25FQ-10290

ALARM

1шт.

65

S035-061526

BOLT-W/WASHER

2шт.

66

21FG-10810

STROBE LAMP-AMBER

AMBER,3.5,STD #1107

1шт.

66

21HA-20310

LAMP-BEACON, AMBER

AMBER,3.5,STD #1108

1шт.

66

21FG-10810

STROBE LAMP-AMBER

AMBER,4.0,STD #1021

1шт.

66

21HA-20310

LAMP-BEACON, AMBER

AMBER,4.0,STD #1022

1шт.

66

21FG-10810

STROBE LAMP-AMBER

AMBER,4.5,STD #1214

1шт.

66

21HA-20310

LAMP-BEACON, AMBER

AMBER,4.5,STD #1215

1шт.

66-1

21FG-10860

GLOBE-AMBER

NOT SHOWN,3.5 #1107

1шт.

66-1

21FG-10860

GLOBE-AMBER

NOT SHOWN,4.0 #1021

1шт.

66-1

21FG-10860

GLOBE-AMBER

NOT SHOWN,4.5 #1214

1шт.

66-1

21HA-21110

LENS-BEACON, AMBER

NOT SHOWN,3.5 #1108

1шт.

66-1

21HA-21110

LENS-BEACON, AMBER

NOT SHOWN,4.0 #1022

1шт.

66-1

21HA-21110

LENS-BEACON, AMBER

NOT SHOWN,4.5 #1215

1шт.

66-2

21HA-21140

XENON LAMP

NOT SHOWN,3.5 #1108

1шт.

66-2

21HA-21140

XENON LAMP

NOT SHOWN,4.0 #1022

1шт.

66-2

21HA-21140

XENON LAMP

NOT SHOWN,4.5 #1215

1шт.

67

21FG-10820

STROBE LAMP-BLUE

BLUE,3.5TON #1107

1шт.

67

21HA-20330

LAMP-BEACON, BLUE

BLUE,3.5TON #1108

1шт.

67

21FG-10820

STROBE LAMP-BLUE

BLUE,4.0TON #1021

1шт.

67

21HA-20330

LAMP-BEACON, BLUE

BLUE,4.0TON #1022

1шт.

67

21FG-10820

STROBE LAMP-BLUE

BLUE,4.5TON #1214

1шт.

67

21HA-20330

LAMP-BEACON, BLUE

BLUE,4.5TON #1215

1шт.

67-1

21FG-10870

GLOBE-BLUE

NOT SHOWN,3.5 #1107

1шт.

67-1

21FG-10870

GLOBE-BLUE

NOT SHOWN,4.0 #1021

1шт.

67-1

21FG-10870

GLOBE-BLUE

NOT SHOWN,4.5 #1214

1шт.

67-1

21HA-21130

LENS-BEACON, BLUE

NOT SHOWN,3.5 #1108

1шт.

67-1

21HA-21130

LENS-BEACON, BLUE

NOT SHOWN,4.0 #1022

1шт.

67-1

21HA-21130

LENS-BEACON, BLUE

NOT SHOWN,4.5 #1215

1шт.

67-2

21HA-21140

XENON LAMP

NOT SHOWN,3.5 #1108

1шт.

67-2

21HA-21140

XENON LAMP

NOT SHOWN,4.0 #1022

1шт.

67-2

21HA-21140

XENON LAMP

NOT SHOWN,4.5 #1215

1шт.

68

27FQ-17510

ELEC ACCEL PEDAL ASSY

35D #1224

1шт.

68

27FQ-17511

ELEC ACCEL PEDAL ASSY

35D #1225

1шт.

68

27FQ-17510

ELEC ACCEL PEDAL ASSY

40D #1043

1шт.

68

27FQ-17511

ELEC ACCEL PEDAL ASSY

40D #1044

1шт.

68

27FQ-17510

ELEC ACCEL PEDAL ASSY

45D #1412

1шт.

68

27FQ-17511

ELEC ACCEL PEDAL ASSY

45D #1413

1шт.

69

S035-082026

BOLT-W/WASHER

2шт.

70

S285-061002

NUT-FLANGED

1шт.

71

27FV-20110

BACRKET-ECU MTG

1шт.

72

27FV-20120

BRACKET-ECU MTG

1шт.

73

27FV-20130

COVER-ECU

1шт.

74

S593-000752

CLIP-HARNESS

1шт.
