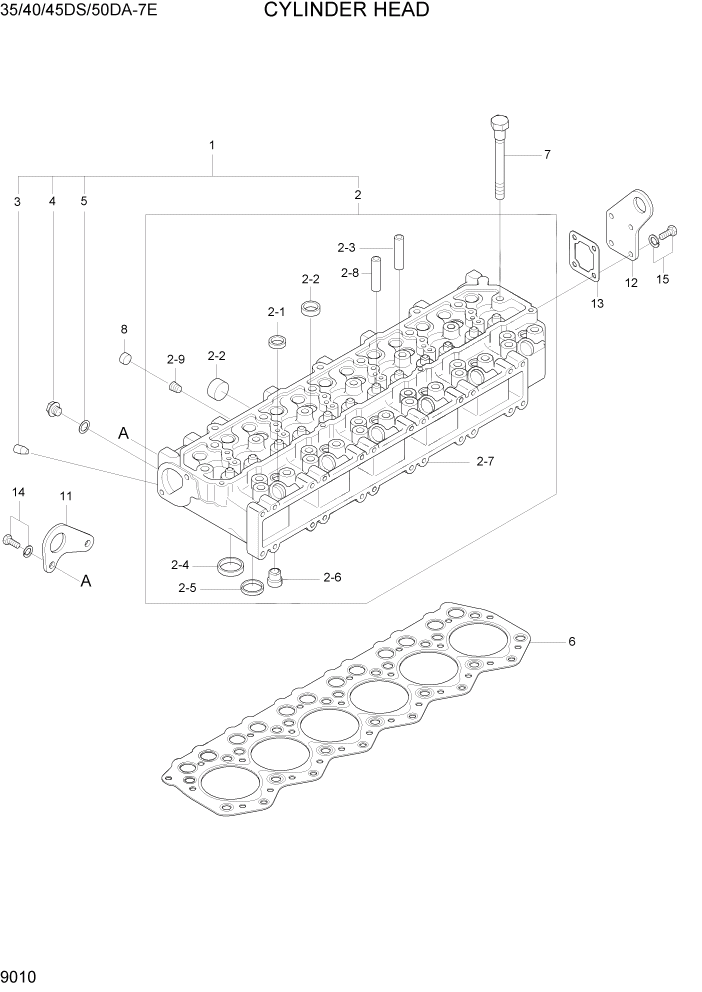

Запчасти Hyundai 35DS/40DS/45DS/50DA-7E PAGE 9010 CYLINDER HEAD ДВИГАТЕЛЬ БАЗА

1

XJAF-02589

HEAD ASSY-CYLINDER

1шт.

N2

@

CYLINDER HEAD SUB

NOT

1шт.

2-1

XJAF-00568

CAP-SEALING

12шт.

2-2

XJAF-00569

CAP-SEALING

11шт.

2-3

XJAF-00570

GUIDE-VALVE

6шт.

2-4

XJAF-00571

SEAT VALVE-INLET

6шт.

2-5

XJAF-00572

SEAT VALVE-EXHAUST

6шт.

2-6

XJAF-01747

JET-COMBUSTION

6шт.

N2-7

@

CYLINDER HEAD

NOT

1шт.

2-8

XJAF-02590

GUIDE-VALVE EXHAUST

6шт.

2-9

XJAF-00201

PLUG-TAPERED

6шт.

N3

@

PLUG

NOT

1шт.

4

XJAF-00418

PLUG-DRAIN

1шт.

5

XJAF-00560

GASKET-INLET MANIFOLD

1шт.

6

XJAF-01134

GASKET-CYLINDER HEAD

1шт.

7

XJAF-00576

BOLT-CYLINDER HEAD

25шт.

8

XJAF-01100

CAP-SEALING

6шт.

11

XJAF-00573

EYE-LIFTING,FR

1шт.

12

XJAF-00574

EYE-LIFTING,RR

1шт.

13

XJAF-01744

GASKET-CYLINDER HEAD

1шт.

14

XJAF-01976

BOLT-W/WASHER

2шт.

15

XJAF-02591

BOLT-W/WASHER

4шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
