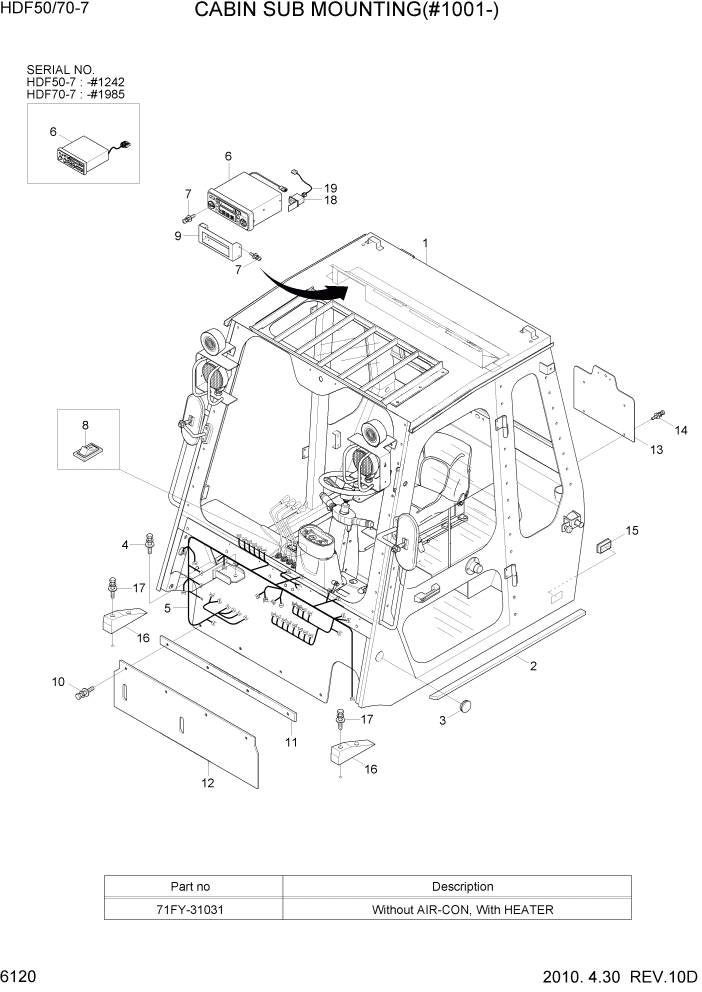

/ / / / / / / / PAGE 6120 CABIN SUB MOUNTING(#1001-)
Запчасти Hyundai HDF50/HDF70-7 PAGE 6120 CABIN SUB MOUNTING(#1001-) СТРУКТУРА
*
@
CABIN SUB MTG
NOT #1001
1шт.
1
77FQ-35041
CABIN TOTAL SUB ASSY
5.0,WET,SINWHA
1шт.
1
77FQ-35041
CABIN TOTAL SUB ASSY
7.0,WET,SINWHA
1шт.
1
77FQ-35051
CABIN TOTAL SUB ASSY
5.0,DRY,SINWHA
1шт.
1
77FQ-35051
CABIN TOTAL SUB ASSY
7.0,DRY,SINWHA
1шт.
1
77FQ-55011
CABIN TOTAL SUB ASSY
5.0,WET,SAMWOO #1045
1шт.
1
77FQ-35041
CABIN TOTAL SUB ASSY
HDF70-7,WET #1136
1шт.
1
77FQ-55011
CABIN TOTAL SUB ASSY
7.0,WET,SAMWOO #1149
1шт.
1
77FQ-35051
CABIN TOTAL SUB ASSY
HDF50-7,DRY #1041
1шт.
1
77FQ-55021
CABIN TOTAL SUB ASSY
5.0,DRY,SAMWOO #1045
1шт.
1
77FQ-35051
CABIN TOTAL SUB ASSY
HDF70-7,DRY #1136
1шт.
1
77FQ-55021
CABIN TOTAL SUB ASSY
7.0,DRY,SAMWOO #1149
1шт.
2
F14130110
SEAL-RUBBER
2шт.
3
FHC0904100
RUBBER-STAY
4шт.
4
S037-122526
BOLT-W/WASHER
4шт.
5
21FQ-10912
HARNESS-DASHBOARD
1шт.
6
21N8-50020
CASSETTE RADIO ASSY
HDF50-7 #1208
1шт.
6
21N8-50060
CASSETTE RADIO ASSY
HDF50-7 #1209 - #1242
1шт.
6
21N8-51000
RADIO/USB PLAYER ASSY
HDF50-7 #1243
1шт.
6
21N8-50020
CASSETTE RADIO ASSY
HDF70-7 #1750
1шт.
6
21N8-50060
CASSETTE RADIO ASSY
HDF70-7 #1751 - #1985
1шт.
6
21N8-51000
RADIO/USB PLAYER ASSY
HDF70-7 #1986
1шт.
7
S131-051046
SCREW-W/WASHER
8шт.
8
21L7-03080
SWITCH-WIPER WASHER
1шт.
9
71FQ-50440
COVER-RADIO
1шт.
10
S035-082026
BOLT-W/WASHER
4шт.
11
77FQ-30920
RUBBER-PLATE
1шт.
12
77FQ-30930
PLATE
1шт.
13
71FQ-10810
LICENSE PLATE
HDF50-7 #1045
1шт.
13
71FQ-10810
LICENSE PLATE
HDF70-7 #1149
1шт.
14
S035-081526
BOLT-W/WASHER
HDF50-7 #1045
2шт.
14
S035-081526
BOLT-W/WASHER
HDF70-7 #1149
2шт.
15
71FY-31031
CAP-RUBBER
HDF50-7,SEE ILL #1110
1шт.
15
71FY-31031
CAP-RUBBER
HDF70-7,SEE ILL #1376
1шт.
16
77FQ-30891
CUSHION-RUBBER
HDF50-7 #1198
2шт.
16
77FQ-30891
CUSHION-RUBBER
HDF70-7 #1682
2шт.
17
S035-083026
BOLT-W/WASHER
HDF50-7 #1198
4шт.
17
S035-083026
BOLT-W/WASHER
HDF70-7 #1682
4шт.
17
S035-083026
BOLT-W/WASHER
HDF70-7 #1682
4шт.
18
21LM-31200
USB & SOCKET ASSY
HDF50-7 #1243
1шт.
18
21LM-31200
USB & SOCKET ASSY
HDF70-7 #1986
1шт.
19
21FV-36910
HARNESS-USB SOCKET
HDF50-7 #1243
1шт.
19
21FV-36910
HARNESS-USB SOCKET
HDF70-7 #1986
1шт.
