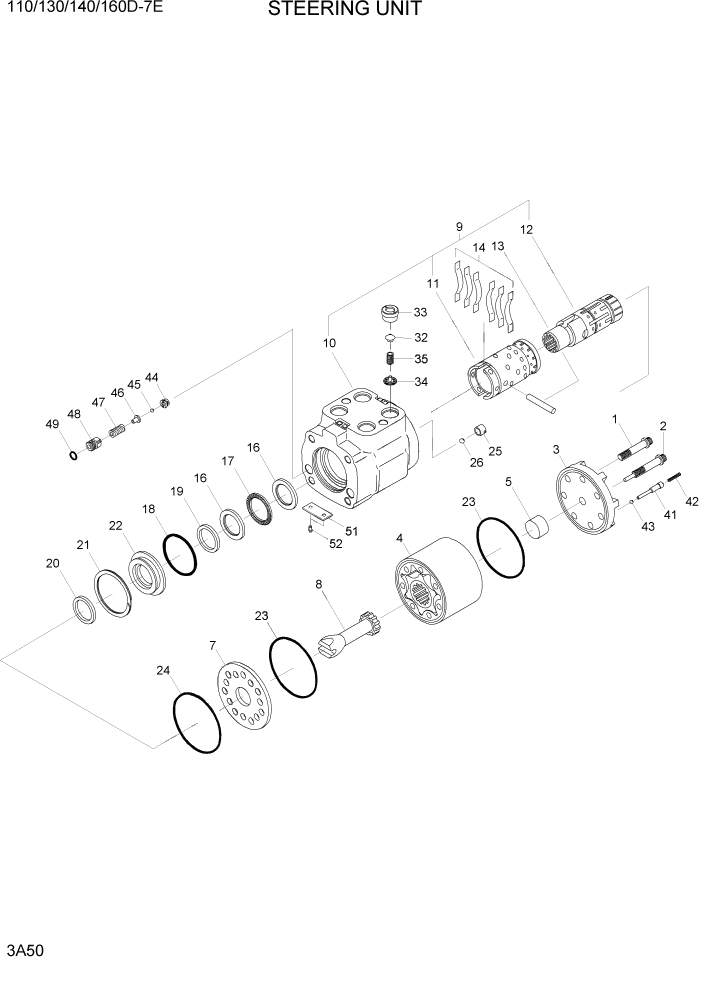

Запчасти Hyundai 110/130/140/160D-7E PAGE 3A50 STEERING UNIT ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

31FT-04000

STEERING UNIT

1шт.

N1

@

SCREW-CAP

NOT

6шт.

N2

@

RETAINER SCREW ASSY

NOT

1шт.

N3

@

CAP-END

NOT

1шт.

N4

@

GEROTOR

NOT

1шт.

N5

@

SPACER

NOT

1шт.

N7

@

PLATE-SPACER

NOT

1шт.

N8

@

GEAR-DRIVE

NOT

1шт.

N9

@

CONTROL PARTS ASSY

NOT

1шт.

N10

@

HOUSING

NOT

1шт.

N11

@

SLEEVE

NOT

1шт.

N12

@

SPOOL

NOT

1шт.

N13

@

PIN

NOT

1шт.

N14

@

SPRING-CENTERING

NOT

6шт.

N16

@

RACE-BEARING

NOT

2шт.

N17

@

BEARING-NEEDLE

NOT

1шт.

N18

@

O-RING

NOT

1шт.

N19

@

SEAL

NOT

1шт.

N20

@

SEAL-DUST

NOT

1шт.

N21

@

RING-RETAINING

NOT

1шт.

N22

@

BUSHING

NOT

1шт.

N23

@

O-RING

NOT

2шт.

N24

@

O-RING

NOT

1шт.

N25

@

SCREW-ADOPT

NOT

1шт.

N26

@

BALL

NOT

1шт.

N31

@

CHECK VALVE ASSY

NOT

1шт.

N32

@

POPPET

NOT

1шт.

N33

@

BODY

NOT

1шт.

N34

@

GUIDE

NOT

1шт.

N35

@

SPRING

NOT

1шт.

N41

@

PLUG-RETAINER

NOT

2шт.

N42

@

SPRING

NOT

2шт.

N43

@

BALL

NOT

2шт.

N44

@

SEAT

NOT

2шт.

N45

@

BALL

NOT

2шт.

N46

@

HOLDER

NOT

2шт.

N47

@

SPRING

NOT

2шт.

N48

@

PLUG

NOT

2шт.

N49

@

O-RING

NOT

2шт.

N51

@

NAME PLATE

NOT

1шт.

N52

@

RIVET

NOT

2шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
