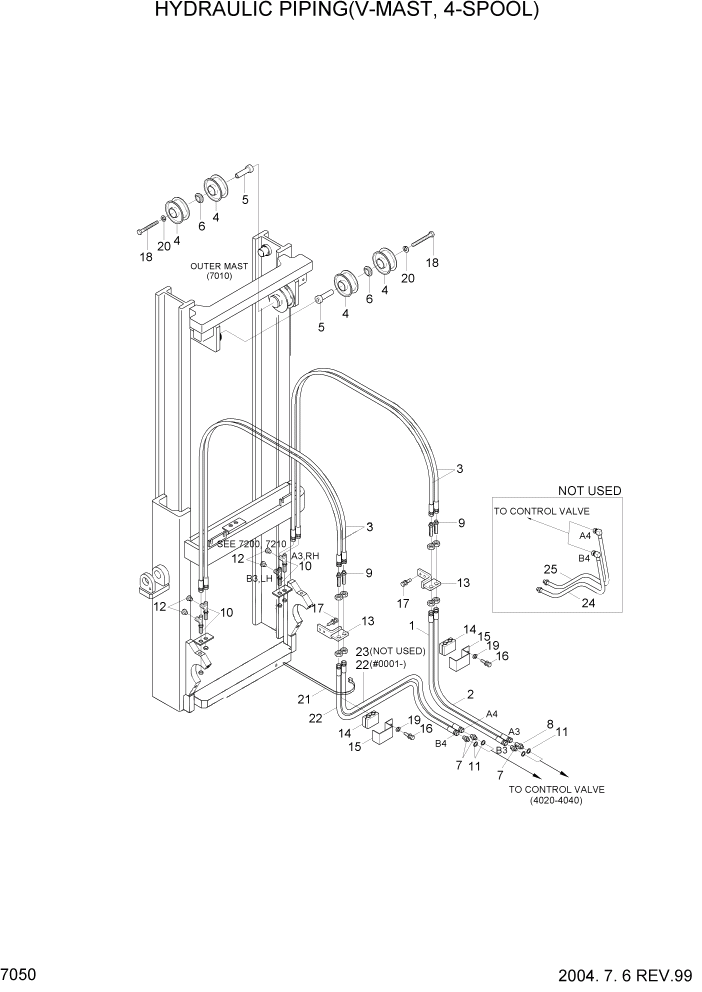

Запчасти Hyundai HDF35/HDF45-3 PAGE 7050 HYDRAULIC PIPING(V-MAST,4-SPOOL) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P620-064041

HOSE ASSY-THD 0X90

V270

1шт.

1

P620-064044

HOSE ASSY-THD 0X90

V300

1шт.

1

P620-064047

HOSE ASSY-THD 0X90

V330

1шт.

1

P620-064050

HOSE ASSY-THD 0X90

V350

1шт.

1

P620-064052

HOSE ASSY-THD 0X90

V370

1шт.

1

P620-064056

HOSE ASSY-THD 0X90

V400

1шт.

1

P620-064061

HOSE ASSY-THD 0X90

V450

1шт.

1

P620-064066

HOSE ASSY-THD 0X90

V500

1шт.

2

P620-064043

HOSE ASSY-THD 0X90

V270

1шт.

2

P620-064046

HOSE ASSY-THD 0X90

V300

1шт.

2

P620-064049

HOSE ASSY-THD 0X90

V330

1шт.

2

P620-064052

HOSE ASSY-THD 0X90

V350

1шт.

2

P620-064054

HOSE ASSY-THD 0X90

V370

1шт.

2

P620-064058

HOSE ASSY-THD 0X90

V400

1шт.

2

P620-064063

HOSE ASSY-THD 0X90

V450

1шт.

2

P620-064068

HOSE ASSY-THD 0X90

V500

1шт.

3

31FA-11220

HOSE ASSY-THD 0X0

V270

4шт.

3

31FA-11130

HOSE ASSY-THD 0X0

V300

4шт.

3

31FA-11310

HOSE ASSY-THD 0X0

V330

4шт.

3

31FA-11320

HOSE ASSY-THD 0X0

V350

4шт.

3

31FA-11160

HOSE ASSY-THD 0X0

V370

4шт.

3

31FA-11050

HOSE ASSY-THD 0X0

V400

4шт.

3

31FA-11070

HOSE ASSY-THD 0X0

V450

4шт.

3

31FA-11290

HOSE ASSY-THD 0X0

V500

4шт.

4

F42500010

PULLEY-HOSE

4шт.

5

31FE-90010

PIN-HOSE PULLEY

2шт.

6

F42500040

COLLAR

2шт.

7

F13530010

CONNECTOR

#0001

3шт.

8

F13530020

CONNECTOR

#0001

1шт.

9

31FA-30530

CONNECTOR-LONG

4шт.

10

31FA-30510

TEE

4шт.

11

S611-023001

O-RING

4шт.

12

P290-100103

CAP

4шт.

13

31FE-90020

BRACKET

2шт.

14

31FA-60020

RUBBER

2шт.

15

31FB-70040

CLAMP-HOSE

2шт.

16

S017-100152

BOLT-HEX

2шт.

17

S037-102522

BOLT-W/WASHER

4шт.

18

S017-120802

BOLT-HEX

2шт.

19

S403-102002

WASHER-PLAIN

2шт.

20

S403-122002

WASHER-PLAIN

2шт.

21

S552-035146

CLAMP-BAND

6шт.

22

P600-064038

HOSE ASSY-THD

V270 #0001

2шт.

22

P600-064041

HOSE ASSY-THD

V300 #0001

2шт.

22

P600-064044

HOSE ASSY-THD 0X0

V330 #0001

2шт.

22

P600-064047

HOSE ASSY-THD 0X0

V350 #0001

2шт.

22

P600-064049

HOSE ASSY-THD 0X0

V370 #0001

2шт.

22

P600-064053

HOSE ASSY-THD 0X0

V400 #0001

2шт.

22

P600-064058

HOSE ASSY-THD 0X0

V450 #0001

2шт.

22

P600-064063

HOSE ASSY-THD 0X0

V500 #0001

2шт.

24

31FE-90030

PIPE WA

NOT USED

1шт.

25

31FE-90040

PIPE WA

NOT USED

1шт.
