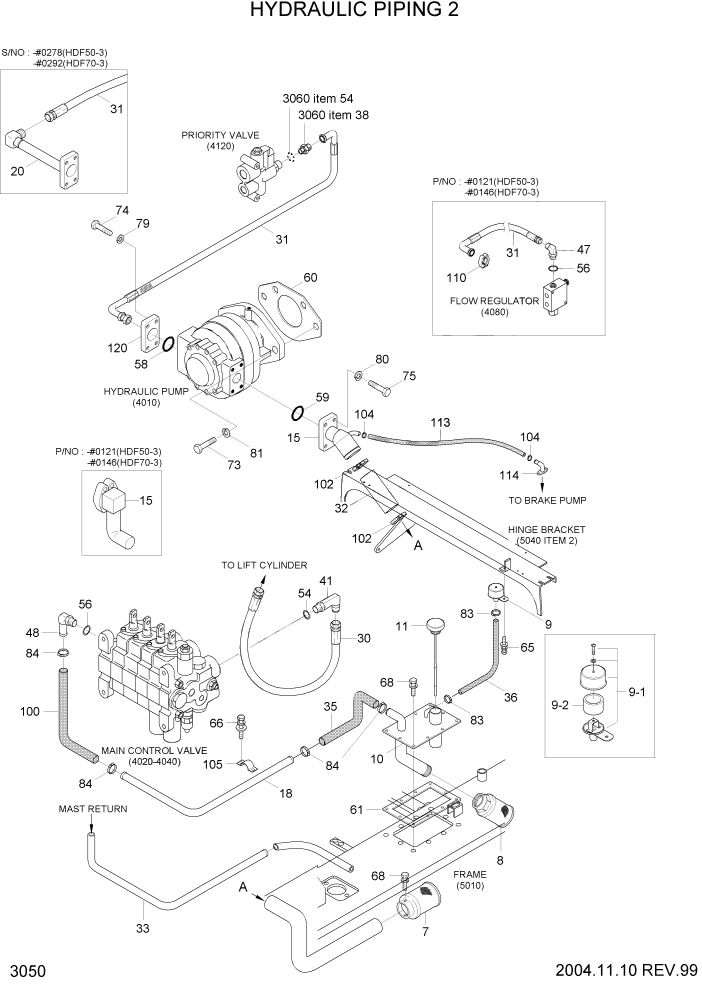

Запчасти Hyundai HDF50/HDF70-3 PAGE 3050 HYDRAULIC PIPING 2 ГИДРАВЛИЧЕСКАЯ СИСТЕМА

7

F14650010

FILTER-SUCTION

1шт.

8

904738400

RETURN FILTER

1шт.

8-1

900875802

ELEMENT-RE/FILTER

NOT SHOWN #0001

1шт.

N9

F23650000

AIR BREATHER ASSY

NOT

1шт.

10

31FF-01010

COVER-HYD TANK

1шт.

11

F11663051

CAP-HYD OIL

TF-MAST

1шт.

11

F11663060

CAP-HYD OIL

V-MAST #0122

1шт.

11

F11663060

CAP-HYD OIL

V-MAST #0147

1шт.

15

31FF-01210

SUCTION PIPE ASSY

HDF50-3 #0121

1шт.

15

31FF-01310

PIPE-SUCTION

HDF50-3 #0122

1шт.

15

31FF-01210

SUCTION PIPE ASSY

HDF70-3 #0146

1шт.

15

31FF-01310

PIPE-SUCTION

HDF70-3 #0147

1шт.

18

31FF-01020

PIPE

1шт.

30

P623-124020

HOSE ASSY-THD 0X90

1шт.

31

31FF-01090

HOSE ASSY

HDF50-3 #0121

1шт.

31

P623-124018

HOSE ASSY-THD 0X90

HDF50-3 #0122 - #0278

1шт.

31

31FF-01170

HOSY ASSY-THD 0X90

HDF50-3 #0279

1шт.

31

31FF-01090

HOSE ASSY

HDF70-3 #0146

1шт.

31

P623-124018

HOSE ASSY-THD 0X90

HDF70-3 #0147 - #0292

1шт.

31

31FF-01170

HOSY ASSY-THD 0X90

HDF70-3 #0293

1шт.

32

31FF-01220

HOSE-SUCTION

1шт.

33

P760-033160

HOSE-RUBBER LOW

1шт.

35

F14610200

HOSE-RUBBER

1шт.

36

P760-023090

HOSE-RUBBER LOW

1шт.

47

P020-310012

ELBOW-90

1шт.

48

F14610220

ELBOW

1шт.

54

S611-023001

O-RING

1шт.

56

S611-030001

O-RING

HDF50-3 #0121

2шт.

56

S611-030001

O-RING

HDF50-3 #0122

1шт.

56

S611-030001

O-RING

HDF70-3 #0146

2шт.

56

S611-030001

O-RING

HDF70-3 #0147

1шт.

58

Y171-024004

O-RING

1шт.

59

Y172-003004

O-RING

1шт.

60

31FF-01160

PACKING

HDF50-3 #0121

1шт.

60

31FF-01160

PACKING

HDF70-3 #0146

1шт.

61

31FF-01040

PACKING

1шт.

65

S035-061522

BOLT-W/WASHER

1шт.

68

S035-082022

BOLT-W/WASHER

13шт.

73

S017-140352

BOLT-HEX

4шт.

74

S109-100356

BOLT-SOCKET

HDF50-3 #0121

4шт.

74

S109-100456

BOLT-SOCKET

HDF50-3 #0122 - #0278

4шт.

74

S109-100356

BOLT-SOCKET

#0279

4шт.

74

S109-100356

BOLT-SOCKET

HDF70-3 #0146

4шт.

74

S109-100456

BOLT-SOCKET

HDF70-3 #0147 - #0292

4шт.

74

S109-100356

BOLT-SOCKET

#0293

4шт.

75

S037-123522

BOLT-W/WASHER

HDF50-3 #0121

4шт.

75

S017-120352

BOLT-HEX

HDF50-3 #0122

4шт.

75

S037-123522

BOLT-W/WASHER

HDF70-3 #0146

4шт.

75

S017-120352

BOLT-HEX

HDF70-3 #0147

4шт.

79

S411-100002

WASHER-SPRING

4шт.

80

S411-120002

WASHER-SPRING

1шт.

81

S411-140002

WASHER-SPRING

4шт.

83

S572-320002

CLAMP-HOSE WIRE TYPE

2шт.

84

S572-450006

CLAMP-HOSE

4шт.

100

F14610200

HOSE-RUBBER

2SPOOL

1шт.

100

F14610210

HOSE-RUBBER

3,4SPOOL

1шт.

102

S572-730006

CLAMP-HOSE WIRE TYPE

2шт.

105

S543-300002

CLAMP-TUBE

1шт.

110

P173-160104

FLANGE-SPLIT

HDF50-3 #0121

2шт.

110

P173-160104

FLANGE-SPLIT

HDF70-3 #0146

2шт.

20

31FF-01320

PIPE ASSY

HDF50-3 #0122

1шт.

20

31FF-01320

PIPE ASSY

HDF70-3 #0147

1шт.

104

S572-270002

CLAMP-HOSE WIRE TYPE

HDF50-3 #0122

2шт.

104

S572-270002

CLAMP-HOSE WIRE TYPE

HDF70-3 #0147

2шт.

113

31FF-10120

HOSE-SUCTION

HDF50-3 #0122

1шт.

113

31FF-10120

HOSE-SUCTION

HDF70-3 #0147

1шт.

114

31FF-01330

PIPE-SUCTION

HDF50-3 #0122

1шт.

114

31FF-01330

PIPE-SUCTION

HDF70-3 #0147

1шт.

120

P173-160104

FLANGE-SPLIT

HDF50-3 #0279

1шт.

120

P173-160104

FLANGE-SPLIT

HDF70-3 #0293

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
