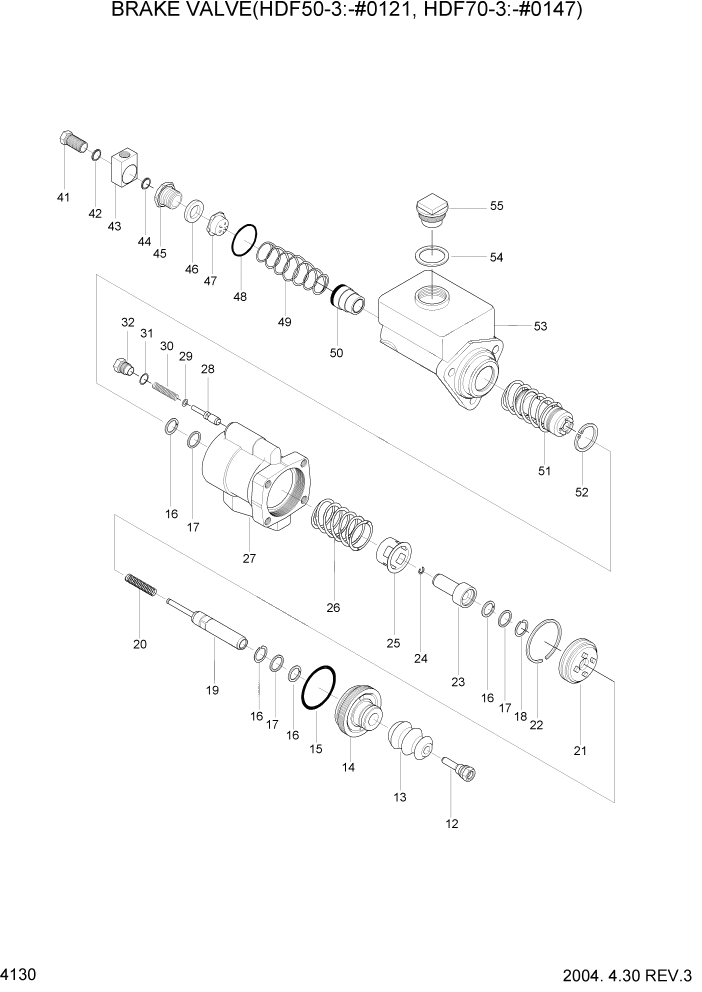

Запчасти Hyundai HDF50/HDF70-3 PAGE 4130 BRAKE VALVE(50-3:-#0121,70-3:-#0146) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

81FF-40150

BRAKE VALVE

HDF50-3 #0121

1шт.

*

81FF-40150

BRAKE VALVE

HDF70-3 #0146

1шт.

*-1

20-100-116

BOOSTER SECTION

#0001

1шт.

N12

@

PLUG

NOT

1шт.

KN3

@

BOOT

NOT

1шт.

N14

@

PLUG

NOT

1шт.

KN15

@

O-RING

NOT

1шт.

KN16

@

RING-BACK UP

NOT

3шт.

KN17

@

CUP

NOT

2шт.

KN18

@

RING-RETAINING

NOT

2шт.

N19

@

PISTON

NOT

1шт.

N20

@

SPRING

NOT

1шт.

N21

@

PISTON

NOT

1шт.

KN22

@

RING-PISTON

NOT

1шт.

N23

@

PISTON

NOT

1шт.

KN24

@

RING-RETAINING

NOT

1шт.

N25

@

RETAINER

NOT

1шт.

N26

@

SPRING

NOT

1шт.

N27

@

HOUSING

NOT

1шт.

N28

@

STEM-VALVE

NOT

1шт.

N29

@

SHIM

NOT

1шт.

N30

@

SPRING

NOT

1шт.

KN31

@

O-RING

NOT

1шт.

N32

@

PLUG

NOT

1шт.

*-2

20-100-704

MASTER SECTION

#0001

1шт.

N41

@

LINE BOLT

NOT

1шт.

KN42

@

WASHER-LOCK

NOT

3шт.

N43

@

FITTING BOLT

NOT

1шт.

KN44

@

WASHER-LOCK

NOT

3шт.

N45

@

PLUG

NOT

1шт.

KN46

@

SEAT

NOT

1шт.

KN47

@

CHECK VALVE

NOT

1шт.

KN48

@

O-RING

NOT

1шт.

N49

@

SPRING

NOT

1шт.

KN50

@

PISTON

NOT

1шт.

KN51

@

PISTON ASSY

NOT

1шт.

N52

@

RING-RETAINING

NOT

1шт.

N53

@

HOUSING

NOT

1шт.

KN54

@

SEAL

NOT

1шт.

N55

@

PLUG

NOT

1шт.

K

02-400-076

REPAIR KIT(13,15-18

1шт.

K

02-400-253

REPAR KIT(42,44,46,47,48

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
