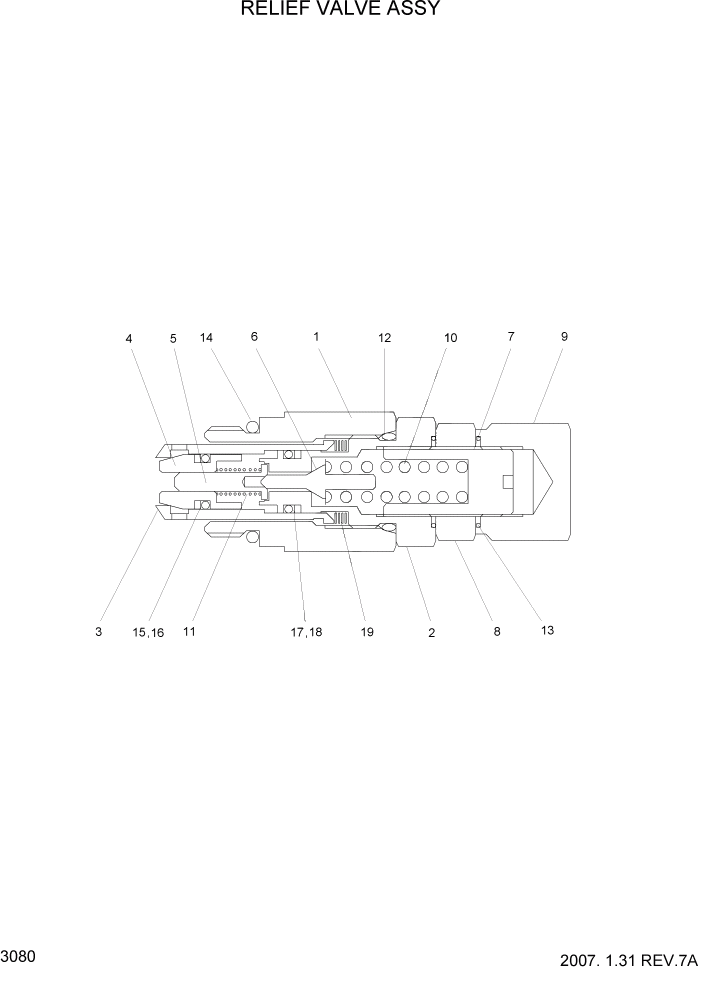

Запчасти Hyundai HBR14/HBR15/HBR18-7 PAGE 3080 RELIEF VALVE ASSY ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

XKBF-00448

RELIEF VALVE ASSY

MAIN,HBR14-7 #0001 - #0040

1шт.

*

XKBF-00866

RELIEF VALVE ASSY

MAIN,14,SEE3085 #0041

1шт.

*

XKBF-00448

RELIEF VALVE ASSY

MAIN,HBR15-7 #0001 - #0127

1шт.

*

XKBF-00866

RELIEF VALVE ASSY

MAIN,15,SEE3085 #0128

1шт.

*

XKBF-00448

RELIEF VALVE ASSY

MAIN,HBR18-7 #0001 - #0134

1шт.

*

XKBF-00866

RELIEF VALVE ASSY

MAIN,18,SEE3085 #0135

1шт.

*

XKBF-00302

RELIEF VALVE ASSY

AUX,HBR14-7 #0040

1шт.

*

XKBF-00867

RELIEF VALVE ASSY

AUX,HBR14-7 #0041

1шт.

*

XKBF-00302

RELIEF VALVE ASSY

AUX,HBR15-7 #0127

1шт.

*

XKBF-00867

RELIEF VALVE ASSY

AUX,HBR15-7 #0128

1шт.

*

XKBF-00302

RELIEF VALVE ASSY

AUX,HBR18-7 #0134

1шт.

*

XKBF-00867

RELIEF VALVE ASSY

AUX,HBR18-7 #0135

1шт.

1

XKBF-00595

HOUSING

1шт.

2

XKBF-00596

BODY

1шт.

3

XKBF-00597

SOCKET

1шт.

4

XKBF-00598

MAIN POPPET

1шт.

5

XKBF-00599

PLUNGER

1шт.

6

XKBF-00363

PILOT POPPET

#0001

1шт.

7

XKBF-00261

ADJUST SCREW

1шт.

8

XKBF-00600

NUT

1шт.

9

XKBF-00601

CAP NUT

1шт.

10

XKBF-00602

PILOT SPRING

1шт.

11

XKBF-00603

MAIN SPRING

1шт.

12

XKBF-00604

O-RING

1шт.

13

XKBF-00605

O-RING

2шт.

14

XKBF-00578

O-RING

1шт.

15

XKBF-00697

O-RING

#0001

1шт.

16

XKBF-00607

BACK UP RING

1шт.

17

XKBF-00698

O-RING

#0001

1шт.

18

XKBF-00609

BACK UP RING

1шт.

19

XKBF-00610

WAVE WASHER

1шт.

K

XKBF-00318

SPOOL SEAL KIT

SEE ILLUST

1шт.
