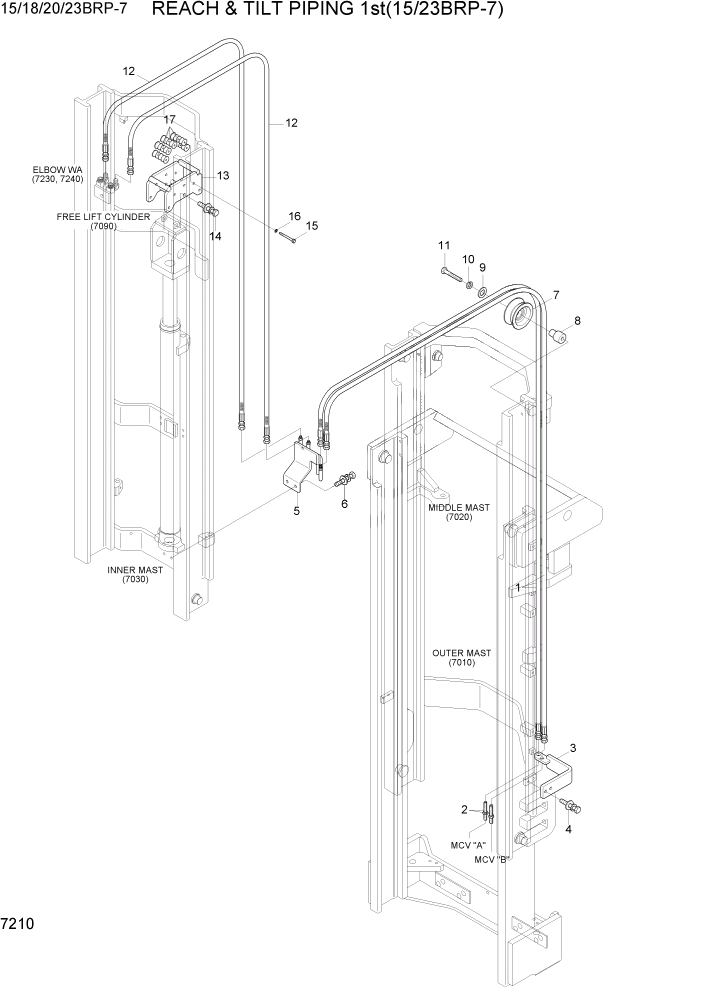

Запчасти Hyundai 15/18/20/23BRP-7 PAGE 7210 REACH & TILT PIPING 1ST (15/23BRP-7) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

P910-044057

HOSE ASSY-ORFS 0X0

TF500

2шт.

1

P910-044063

HOSE ASSY-ORFS 0X0

TF530

2шт.

1

P910-044075

HOSE ASSY-ORFS 0X0

TF610

2шт.

1

P910-044087

HOSE ASSY-ORFS 0X0

TF685

2шт.

1

P910-044099

HOSE ASSY-ORFS 0X0

TF760

2шт.

1

P910-044108

HOSE ASSY-ORFS 0X0

TF815

2шт.

1

P910-044118

HOSE ASSY-ORFS 0X0

TF865

2шт.

1

P910-044128

HOSE ASSY-ORFS 0X0

TF930

2шт.

1

P910-044139

HOSE ASSY-ORFS,THD(0X0)

TF1010

2шт.

2

X540-120001

CONNECTOR-ORFS

2шт.

3

33HR-91201

BRACKET WA

1шт.

4

S035-082536

BOLT-W/WASHER

2шт.

5

33HR-91002

PIPE WA

1шт.

6

S037-102526

BOLT-W/WASHER

2шт.

7

31HH-80300

PULLEY-HOSE

1шт.

8

31FV-90130

PIN-HOSE PULLEY

1шт.

9

S441-120006

WASHER-HARDENED

1шт.

10

S411-120006

WASHER-SPRING

1шт.

11

S017-120606

BOLT-HEX

1шт.

12

P910-044045

HOSE ASSY-ORFS 0X0

TF500

2шт.

12

P910-044051

HOSE ASSY-ORFS 0X0

TF530

2шт.

12

P910-044063

HOSE ASSY-ORFS 0X0

TF610

2шт.

12

P910-044075

HOSE ASSY-ORFS 0X0

TF685

2шт.

12

P910-044087

HOSE ASSY-ORFS 0X0

TF760

2шт.

12

P910-044096

HOSE ASSY-ORFS 0X0

TF815

2шт.

12

P910-044105

HOSE ASSY-ORFS 0X0

TF865

2шт.

12

P910-044116

HOSE ASSY-ORFS,THD(0X0)

TF930

2шт.

12

P910-044128

HOSE ASSY-ORFS 0X0

TF1010

2шт.

13

33HR-91401

BRACKET WA

1шт.

14

S035-082026

BOLT-W/WASHER

2шт.

15

33HJ-90900

BOLT-SPECIAL

5шт.

16

S403-061006

WASHER-PLAIN

5шт.

17

33HJ-90600

PULLET-HOSE

5шт.
