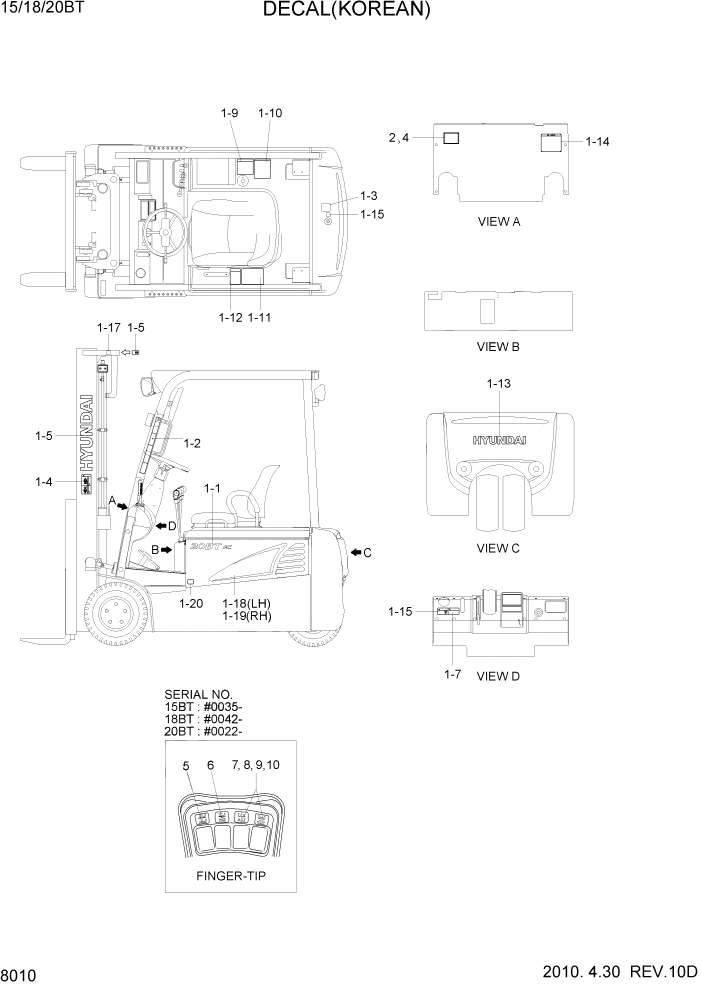

Запчасти Hyundai 15/18/20BT PAGE 8010 DECAL(KOREAN) РУКОВОДСТВА И НАКЛЕЙКИ

1

91FY-20010

DECAL KIT

15BT

1шт.

1

91FY-20030

DECAL KIT

18BT

1шт.

1

91FY-20050

DECAL KIT

20BT

1шт.

1-1

91FY-00260

NAME DECAL 15BT

15BT

2шт.

1-1

91FY-00290

NAME DECAL 18BT

18BT

2шт.

1-1

91FY-00320

NAME DECAL 20BT

20BT

2шт.

1-2

91HE-00500

DECAL-WARNING OHG

#0001 - #0144

1шт.

1-2

92HG-00910

WARNING O.H.G

15BT #0145

1шт.

1-2

91HE-00500

DECAL-WARNING OHG

#0001 - #0199

1шт.

1-2

92HG-00910

WARNING O.H.G

18BT #0200

1шт.

1-2

91HE-00500

DECAL-WARNING OHG

#0001 - #0114

1шт.

1-2

92HG-00910

WARNING O.H.G

20BT #0115

1шт.

1-3

91FY-00350

DECAL-HANGER

#0144

1шт.

1-3

91FY-00351

DECAL-HANGER

15BT #0145

1шт.

1-3

91FY-00350

DECAL-HANGER

#0199

1шт.

1-3

91FY-00351

DECAL-HANGER

18BT #0200

1шт.

1-3

91FY-00350

DECAL-HANGER

#0114

1шт.

1-3

91FY-00351

DECAL-HANGER

20BT #0115

1шт.

1-4

91FH-00321

DECAL-WARNING MAST

#0144

2шт.

1-4

92AM-00610

MAST WARNING

15BT #0145

2шт.

1-4

91FH-00321

DECAL-WARNING MAST

#0199

2шт.

1-4

92AM-00610

MAST WARNING

18BT #0200

2шт.

1-4

91FH-00321

DECAL-WARNING MAST

#0114

2шт.

1-4

92AM-00610

MAST WARNING

20BT #0115

2шт.

1-5

91FY-00171

HYUNDAI LOGO

2шт.

1-6

91FH-00330

DECAL-HAND CAUTION

#0144

1шт.

1-6

92AM-00620

HAND CAUTION

15BT #0145

1шт.

1-6

91FH-00330

DECAL-HAND CAUTION

#0199

1шт.

1-6

92AM-00620

HAND CAUTION

18BT #0200

1шт.

1-6

91FH-00330

DECAL-HAND CAUTION

#0114

1шт.

1-6

92AM-00620

HAND CAUTION

20BT #0115

1шт.

1-7

91FH-00341

DECAL-PARKING BRAKE

#0001 - #0144

1шт.

1-7

91FH-00342

DECAL-PARKING BRAKE

15BT #0145

1шт.

1-7

91FH-00341

DECAL-PARKING BRAKE

#0001 - #0199

1шт.

1-7

91FH-00342

DECAL-PARKING BRAKE

18BT #0200

1шт.

1-7

91FH-00341

DECAL-PARKING BRAKE

#0001 - #0114

1шт.

1-7

91FH-00342

DECAL-PARKING BRAKE

20BT #0115

1шт.

1-9

91FY-00340

LOAD CAPACITY CHART

TF/V, 15BT, MM #0144

1шт.

1-9

91FY-00341

DECAL-LOAD CHART

TF/V, 15BT, MM #0145

1шт.

1-9

91FY-00355

LOAD CAPACITY CHART

TF/V, 18BT, MM #0199

1шт.

1-9

91FY-00440

L/CAPA CHART 15BT-7

TF/V, 18BT, MM #0200

1шт.

1-9

91FY-00360

LOAD CAPACITY CHART

TF/V, 20BT, MM #0114

1шт.

1-9

91FY-00361

DECAL-LOAD CHART

TF/V, 20BT, MM #0115

1шт.

1-1

91FY-00400

MAINTENANCE INSTRUCTIONS

#0144

1шт.

1-1

91FY-00401

MAINTENANCE INSTRUCTIONS

15BT #0145

1шт.

1-1

91FY-00400

MAINTENANCE INSTRUCTIONS

#0199

1шт.

1-1

91FY-00401

MAINTENANCE INSTRUCTIONS

18BT #0200

1шт.

1-1

91FY-00400

MAINTENANCE INSTRUCTIONS

#0114

1шт.

1-1

91FY-00401

MAINTENANCE INSTRUCTIONS

20BT #0115

1шт.

1-11

91FY-00420

CIRCUIT DIAGRAM

15BT-7 #0132

1шт.

1-11

91FY-00431

CIRCUIT DIAGRAM

15BT-7 #0133 - #0144

1шт.

1-11

91FY-00432

DECAL-CIRCUIT DIAGRAM

15BT-7 #0145

1шт.

1-11

91FY-00420

CIRCUIT DIAGRAM

18BT-7 #0193

1шт.

1-11

91FY-00431

CIRCUIT DIAGRAM

18BT-7 #0194 - #0199

1шт.

1-11

91FY-00432

DECAL-CIRCUIT DIAGRAM

18BT-7 #0200

1шт.

1-11

91FY-00420

CIRCUIT DIAGRAM

20BT-7 #0100

1шт.

1-11

91FY-00431

CIRCUIT DIAGRAM

20BT-7 #0101 - #0114

1шт.

1-11

91FY-00432

DECAL-CIRCUIT DIAGRAM

20BT-7 #0115

1шт.

1-12

91FH-00350

CAUTION-BAT HANDLING

#0144

1шт.

1-12

91FH-00351

CAUTION BAT HANDLING

15BT #0145

1шт.

1-12

91FH-00350

CAUTION-BAT HANDLING

#0199

1шт.

1-12

91FH-00351

CAUTION BAT HANDLING

18BT #0200

1шт.

1-12

91FH-00350

CAUTION-BAT HANDLING

#0114

1шт.

1-12

91FH-00351

CAUTION BAT HANDLING

20BT #0115

1шт.

1-13

91HE-00070

DECAL-HYUNDAI LOGO

1шт.

1-14

2D0900070

WARNING-SAFETY

#0144

1шт.

1-14

91FH-01650

DECAL-SAFTEY(DC01)

15BT #0145

1шт.

1-14

2D0900070

WARNING-SAFETY

#0199

1шт.

1-14

91FH-01650

DECAL-SAFTEY(DC01)

18BT #0200

1шт.

1-14

2D0900070

WARNING-SAFETY

#0114

1шт.

1-14

91FH-01650

DECAL-SAFTEY(DC01)

20BT #0115

1шт.

1-15

91FH-00250

DECAL-BRAKE FLUID

#0144

1шт.

1-15

92AD-00890

BRAKE FLUID DRY

15BT #0145

1шт.

1-15

91FH-00250

DECAL-BRAKE FLUID

#0199

1шт.

1-15

92AD-00890

BRAKE FLUID DRY

18BT #0200

1шт.

1-15

91FH-00250

DECAL-BRAKE FLUID

#0114

1шт.

1-15

92AD-00890

BRAKE FLUID DRY

20BT #0115

1шт.

1-17

91FP-00340

DECAL-HOOK

#0144

3шт.

1-17

92AM-00630

HOOK

15BT #0145

3шт.

1-17

91FP-00340

DECAL-HOOK

#0199

3шт.

1-17

92AM-00630

HOOK

18BT #0200

3шт.

1-17

91FP-00340

DECAL-HOOK

#0114

3шт.

1-17

92AM-00630

HOOK

20BT #0115

3шт.

1-18

91HE-00190

DECAL-SIDE COVER,LH

15BT-7 #0074

1шт.

1-18

91HE-00191

DECAL-SIDE COVER,LH

15BT-7 #0075

1шт.

1-18

91HE-00190

DECAL-SIDE COVER,LH

18BT-7 #0111

1шт.

1-18

91HE-00191

DECAL-SIDE COVER,LH

18BT-7 #0112

1шт.

1-18

91HE-00190

DECAL-SIDE COVER,LH

20BT-7 #0050

1шт.

1-18

91HE-00191

DECAL-SIDE COVER,LH

20BT-7 #0051

1шт.

1-19

91HE-00290

DECAL-SIDE COVER,RH

15BT-7 #0074

1шт.

1-19

91HE-00291

DECAL-SIDE COVER,RH

15BT-7 #0075

1шт.

1-19

91HE-00290

DECAL-SIDE COVER,RH

18BT-7 #0111

1шт.

1-19

91HE-00291

DECAL-SIDE COVER,RH

18BT-7 #0112

1шт.

1-19

91HE-00290

DECAL-SIDE COVER,RH

20BT-7 #0050

1шт.

1-19

91HE-00291

DECAL-SIDE COVER,RH

20BT-7 #0051

1шт.

1-2

91FH-00520

DECAL-TEMPERATURE

COLD STORAGE #0001 - #0144

2шт.

1-2

91FH-00521

DECAL TEMPERATURE

15BT #0145

2шт.

1-2

91FH-00520

DECAL-TEMPERATURE

COLD STORAGE #0001 - #0199

2шт.

1-2

91FH-00521

DECAL TEMPERATURE

18BT #0200

2шт.

1-2

91FH-00520

DECAL-TEMPERATURE

COLD STORAGE #0001 - #0114

2шт.

1-2

91FH-00521

DECAL TEMPERATURE

20BT #0115

2шт.

2

91FJ-00170

NAME PLATE

1шт.

4

9055000300

RIVET

#0144

8шт.

4

9055000300

RIVET

15BT #0145

4шт.

4

9055000300

RIVET

#0199

8шт.

4

9055000300

RIVET

18BT #0200

4шт.

4

9055000300

RIVET

#0114

8шт.

4

9055000300

RIVET

20BT #0115

4шт.

5

91HE-00520

DECAL-LIFT

FINGER-TIP,15BT #0035

1шт.

5

91HE-00520

DECAL-LIFT

FINGER-TIP,18BT #0042

1шт.

5

91HE-00520

DECAL-LIFT

FINGER-TIP,20BT #0022

1шт.

6

91HE-00530

DECAL-TILT

FINGER-TIP,15BT #0035

1шт.

6

91HE-00530

DECAL-TILT

FINGER-TIP,18BT #0042

1шт.

6

91HE-00530

DECAL-TILT

FINGER-TIP,20BT #0022

1шт.

7

91HE-00540

DECAL-SIDE SHIFT

FINGER-TIP,15BT #0035

1шт.

7

91HE-00540

DECAL-SIDE SHIFT

FINGER-TIP,18BT #0042

1шт.

7

91HE-00540

DECAL-SIDE SHIFT

FINGER-TIP,20BT #0022

1шт.

8

91HE-00550

DECAL-FORK CLAMP

OPTION, 15BT #0035

1шт.

8

91HE-00550

DECAL-FORK CLAMP

OPTION, 18BT #0042

1шт.

8

91HE-00550

DECAL-FORK CLAMP

OPTION, 20BT #0022

1шт.

9

91HE-00560

DECAL-LOAD STABILIZER

OPTION, 15BT #0035

1шт.

9

91HE-00560

DECAL-LOAD STABILIZER

OPTION, 18BT #0042

1шт.

9

91HE-00560

DECAL-LOAD STABILIZER

OPTION, 20BT #0022

1шт.

10

91HE-00570

DECAL-ROTATOR

OPTION, 15BT #0035

1шт.

10

91HE-00570

DECAL-ROTATOR

OPTION, 18BT #0042

1шт.

10

91HE-00570

DECAL-ROTATOR

OPTION, 20BT #0022

1шт.
