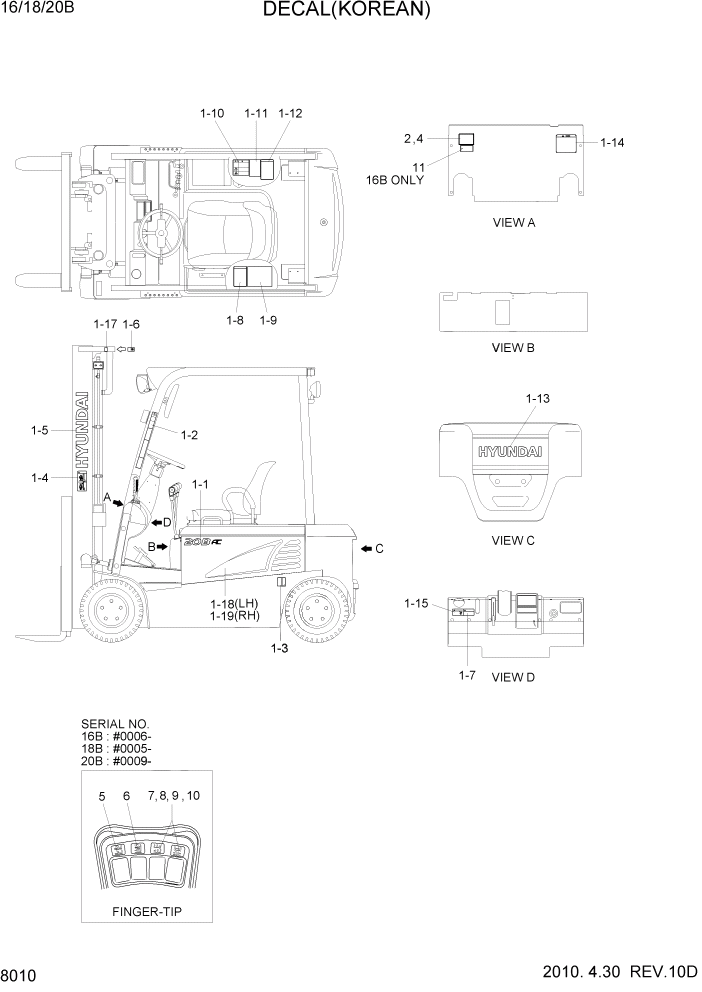

Запчасти Hyundai 16/18/20B-7 PAGE 8010 DECAL(KOREAN) РУКОВОДСТВА И НАКЛЕЙКИ

1

91HE-00010

DECAL KIT

16B

1шт.

1

91HE-00030

DECAL KIT

18B

1шт.

1

91HE-00050

DECAL KIT

20B

1шт.

1-1

91HE-00110

NAME DECAL 16B

16B

2шт.

1-1

91HE-00130

NAME DECAL 18B

18B

2шт.

1-1

91HE-00150

NAME DECAL 20B

20B

2шт.

1-2

91HE-00500

DECAL-WARNING OHG

#0098

1шт.

1-2

92HG-00910

WARNING O.H.G

16B #0099

1шт.

1-2

91HE-00500

DECAL-WARNING OHG

#0049

1шт.

1-2

92HG-00910

WARNING O.H.G

18B #0050

1шт.

1-2

91HE-00500

DECAL-WARNING OHG

#0132

1шт.

1-2

92HG-00910

WARNING O.H.G

20B #0133

1шт.

1-3

91FM-00350

DECAL-HANGER

#0098

1шт.

1-3

91FM-00351

DECAL-HANGER

16B #0099

1шт.

1-3

91FM-00350

DECAL-HANGER

#0049

1шт.

1-3

91FM-00351

DECAL-HANGER

18B #0050

1шт.

1-3

91FM-00350

DECAL-HANGER

#0132

1шт.

1-3

91FM-00351

DECAL-HANGER

20B #0133

1шт.

1-4

91FH-00321

DECAL-WARNING MAST

#0098

2шт.

1-4

92AM-00610

MAST WARNING

16B #0099

2шт.

1-4

91FH-00321

DECAL-WARNING MAST

#0049

2шт.

1-4

92AM-00610

MAST WARNING

18B #0050

2шт.

1-4

91FH-00321

DECAL-WARNING MAST

#0132

2шт.

1-4

92AM-00610

MAST WARNING

20B #0133

2шт.

1-5

91FY-00171

HYUNDAI LOGO

2шт.

1-6

91FH-00330

DECAL-HAND CAUTION

#0098

1шт.

1-6

92AM-00620

HAND CAUTION

16B #0099

1шт.

1-6

91FH-00330

DECAL-HAND CAUTION

#0049

1шт.

1-6

92AM-00620

HAND CAUTION

18B #0050

1шт.

1-6

91FH-00330

DECAL-HAND CAUTION

#0132

1шт.

1-6

92AM-00620

HAND CAUTION

20B #0133

1шт.

1-7

91FH-00341

DECAL-PARKING BRAKE

#0098

1шт.

1-7

91FH-00342

DECAL-PARKING BRAKE

16B #0099

1шт.

1-7

91FH-00341

DECAL-PARKING BRAKE

#0049

1шт.

1-7

91FH-00342

DECAL-PARKING BRAKE

18B #0050

1шт.

1-7

91FH-00341

DECAL-PARKING BRAKE

#0132

1шт.

1-7

91FH-00342

DECAL-PARKING BRAKE

20B #0133

1шт.

1-9

91HE-00200

LOAD CAPACITY CHART

TF/V, 16B, MM #0098

1шт.

1-9

91HE-00201

DECAL-LOAD CHART

TF/V, 16B, MM #0099

1шт.

1-9

91HE-00210

LOAD CAPACITY CHART

TF/V, 18B, MM #0049

1шт.

1-9

91HE-00211

DECAL-LOAD CHART

TF/V, 18B, MM #0050

1шт.

1-9

91HE-00220

LOAD CAPACITY CHART

TF/V, 20B, MM #0132

1шт.

1-9

91HE-00221

DECAL-LOAD CHART

TF/V, 20B, MM #0133

1шт.

1-1

91HE-00170

MAINTENANCE INSTRU

#0098

1шт.

1-1

91HE-00171

MAINTENANCE INSTRUCTIONS

16B #0099

1шт.

1-1

91HE-00170

MAINTENANCE INSTRU

#0049

1шт.

1-1

91HE-00171

MAINTENANCE INSTRUCTIONS

18B #0050

1шт.

1-1

91HE-00170

MAINTENANCE INSTRU

#0132

1шт.

1-1

91HE-00171

MAINTENANCE INSTRUCTIONS

20B #0133

1шт.

1-11

91FY-00430

CIRCUIT DIAGRAM

16B-7 #0082

1шт.

1-11

91FY-00431

CIRCUIT DIAGRAM

16B-7 #0083 - #0098

1шт.

1-11

91FY-00432

DECAL-CIRCUIT DIAGRAM

16B-7 #0099

1шт.

1-11

91FY-00430

CIRCUIT DIAGRAM

18B-7 #0046

1шт.

1-11

91FY-00431

CIRCUIT DIAGRAM

18B-7 #0047 - #0049

1шт.

1-11

91FY-00432

DECAL-CIRCUIT DIAGRAM

18B-7 #0050

1шт.

1-11

91FY-00430

CIRCUIT DIAGRAM

20B-7 #0114

1шт.

1-11

91FY-00431

CIRCUIT DIAGRAM

20B-7 #0115 - #0132

1шт.

1-11

91FY-00432

DECAL-CIRCUIT DIAGRAM

20B-7 #0133

1шт.

1-12

91FH-00350

CAUTION-BAT HANDLING

#0098

1шт.

1-12

91FH-00351

CAUTION BAT HANDLING

16B #0099

1шт.

1-12

91FH-00350

CAUTION-BAT HANDLING

#0049

1шт.

1-12

91FH-00351

CAUTION BAT HANDLING

18B #0050

1шт.

1-12

91FH-00350

CAUTION-BAT HANDLING

#0132

1шт.

1-12

91FH-00351

CAUTION BAT HANDLING

20B #0133

1шт.

1-13

91HE-00070

DECAL-HYUNDAI LOGO

1шт.

1-14

2D0900070

WARNING-SAFETY

#0098

1шт.

1-14

91FH-01650

DECAL-SAFTEY(DC01)

16B #0099

1шт.

1-14

2D0900070

WARNING-SAFETY

#0049

1шт.

1-14

91FH-01650

DECAL-SAFTEY(DC01)

18B #0050

1шт.

1-14

2D0900070

WARNING-SAFETY

#0132

1шт.

1-14

91FH-01650

DECAL-SAFTEY(DC01)

20B #0133

1шт.

1-15

91FH-00250

DECAL-BRAKE FLUID

#0098

1шт.

1-15

92AD-00890

BRAKE FLUID DRY

16B #0099

1шт.

1-15

91FH-00250

DECAL-BRAKE FLUID

#0049

1шт.

1-15

92AD-00890

BRAKE FLUID DRY

18B #0050

1шт.

1-15

91FH-00250

DECAL-BRAKE FLUID

#0132

1шт.

1-15

92AD-00890

BRAKE FLUID DRY

20B #0133

1шт.

1-17

91FP-00340

DECAL-HOOK

#0098

3шт.

1-17

92AM-00630

HOOK

16B #0099

3шт.

1-17

91FP-00340

DECAL-HOOK

#0049

3шт.

1-17

92AM-00630

HOOK

18B #0050

3шт.

1-17

91FP-00340

DECAL-HOOK

#0132

3шт.

1-17

92AM-00630

HOOK

20B #0133

3шт.

1-18

91HE-00190

DECAL-SIDE COVER,LH

16B-7 #0025

1шт.

1-18

91HE-00191

DECAL-SIDE COVER,LH

16B-7 #0026

1шт.

1-18

91HE-00190

DECAL-SIDE COVER,LH

18B-7 #0018

1шт.

1-18

91HE-00191

DECAL-SIDE COVER,LH

18B-7 #0019

1шт.

1-18

91HE-00190

DECAL-SIDE COVER,LH

20B-7 #0028

1шт.

1-18

91HE-00191

DECAL-SIDE COVER,LH

20B-7 #0029

1шт.

1-19

91HE-00290

DECAL-SIDE COVER,RH

16B-7 #0025

1шт.

1-19

91HE-00291

DECAL-SIDE COVER,RH

16B-7 #0026

1шт.

1-19

91HE-00290

DECAL-SIDE COVER,RH

18B-7 #0018

1шт.

1-19

91HE-00291

DECAL-SIDE COVER,RH

18B-7 #0019

1шт.

1-19

91HE-00290

DECAL-SIDE COVER,RH

20B-7 #0028

1шт.

1-19

91HE-00291

DECAL-SIDE COVER,RH

20B-7 #0029

1шт.

1-2

91FH-00520

DECAL-TEMPERATURE

COLD STORAGE #0001 - #0098

2шт.

1-2

91FH-00521

DECAL TEMPERATURE

16B #0099

2шт.

1-2

91FH-00520

DECAL-TEMPERATURE

COLD STORAGE #0001 - #0049

2шт.

1-2

91FH-00521

DECAL TEMPERATURE

18B #0050

2шт.

1-2

91FH-00520

DECAL-TEMPERATURE

COLD STORAGE #0001 - #0132

2шт.

1-2

91FH-00521

DECAL TEMPERATURE

20B #0133

2шт.

2

91FJ-00170

NAME PLATE

1шт.

4

9055000300

RIVET

#0098

8шт.

4

9055000300

RIVET

16B #0099

4шт.

4

9055000300

RIVET

#0049

8шт.

4

9055000300

RIVET

18B #0050

4шт.

4

9055000300

RIVET

#0132

8шт.

4

9055000300

RIVET

20B #0133

4шт.

5

91HE-00520

DECAL-LIFT

FINGER-TIP, 16B #0006

1шт.

5

91HE-00520

DECAL-LIFT

FINGER-TIP, 18B #0005

1шт.

5

91HE-00520

DECAL-LIFT

FINGER-TIP, 20B #0009

1шт.

6

91HE-00530

DECAL-TILT

FINGER-TIP, 16B #0006

1шт.

6

91HE-00530

DECAL-TILT

FINGER-TIP, 18B #0005

1шт.

6

91HE-00530

DECAL-TILT

FINGER-TIP, 20B #0009

1шт.

7

91HE-00540

DECAL-SIDE SHIFT

FINGER-TIP, 16B #0006

1шт.

7

91HE-00540

DECAL-SIDE SHIFT

FINGER-TIP, 18B #0005

1шт.

7

91HE-00540

DECAL-SIDE SHIFT

FINGER-TIP, 20B #0009

1шт.

8

91HE-00550

DECAL-FORK CLAMP

OPTION, 16B #0006

1шт.

8

91HE-00550

DECAL-FORK CLAMP

OPTION, 18B #0005

1шт.

8

91HE-00550

DECAL-FORK CLAMP

OPTION, 20B #0009

1шт.

9

91HE-00560

DECAL-LOAD STABILIZER

OPTION, 16B #0006

1шт.

9

91HE-00560

DECAL-LOAD STABILIZER

OPTION, 18B #0005

1шт.

9

91HE-00560

DECAL-LOAD STABILIZER

OPTION, 20B #0009

1шт.

10

91HE-00570

DECAL-ROTATOR

OPTION, 16B #0006

1шт.

10

91HE-00570

DECAL-ROTATOR

OPTION, 18B #0005

1шт.

10

91HE-00570

DECAL-ROTATOR

OPTION, 20B #0009

1шт.

11

91FP-00730

DECAL-SPEED

OPTION, 16B #0083

1шт.

11

91FP-00730

DECAL-SPEED

OPTION, 18B #0047

1шт.

11

91FP-00730

DECAL-SPEED

OPTION, 20B #0115

1шт.
