PAGE 1090 COLD STORAGE(OPTION)

Запчасти Hyundai HBF20/HBF25/HBF30/HBF32/HBF20-7 PAGE 1090 COLD STORAGE(OPTION) ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

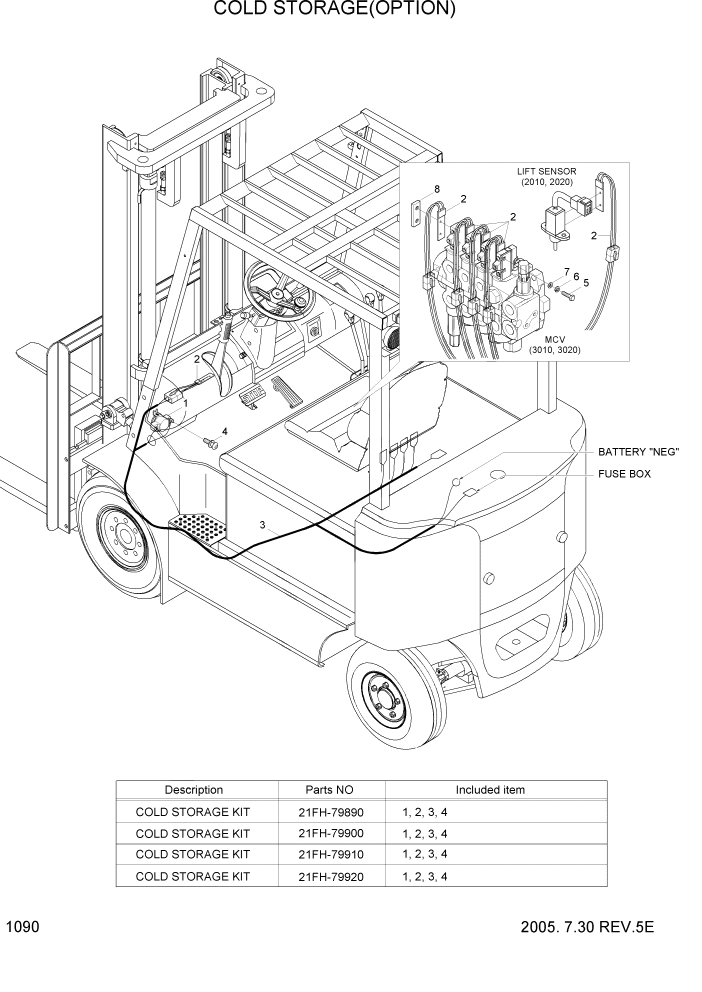

Схема запчастей Hyundai HBF20/HBF25/HBF30/HBF32/HBF20-7 - PAGE 1090 COLD STORAGE(OPTION) ЭЛЕКТРИЧЕСКАЯ СИСТЕМА
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

K1

21FH-72120

SENSOR-TEMP

1шт.

K2

21FH-72190

HEATER ASSY-36V

3-SPOOL,36V

5шт.

K2

21FH-72190

HEATER ASSY-36V

4-SPOOL,36V

6шт.

K2

21FH-72200

HEATER ASSY-48V

3-SPOOL,48V

5шт.

K2

21FH-72200

HEATER ASSY-48V

4-SPOOL,48V

6шт.

K3

21FH-75081

HARNESS-COLD STORAGE

1шт.

K4

S131-041026

SCREW-W/WASHER C/RD

2шт.

5

S015-040306

BOLT-HEX

3-SPOOL,20-7 #0030

6шт.

5

S015-040306

BOLT-HEX

3-SPOOL,25-7 #0116

6шт.

5

S015-040306

BOLT-HEX

3-SPOOL,30-7 #0013

6шт.

5

S015-040306

BOLT-HEX

3-SPOOL,32-7 #0009

6шт.

5

S015-040306

BOLT-HEX

4-SPOOL,20-7 #0030

8шт.

5

S015-040306

BOLT-HEX

4-SPOOL,25-7 #0116

8шт.

5

S015-040306

BOLT-HEX

4-SPOOL,30-7 #0013

8шт.

5

S015-040306

BOLT-HEX

4-SPOOL,32-7 #0009

8шт.

6

S411-040006

WASHER-SPRING

3-SPOOL,20-7 #0030

6шт.

6

S411-040006

WASHER-SPRING

3-SPOOL,25-7 #0116

6шт.

6

S411-040006

WASHER-SPRING

3-SPOOL,30-7 #0013

6шт.

6

S411-040006

WASHER-SPRING

3-SPOOL,32-7 #0009

6шт.

6

S411-040006

WASHER-SPRING

4-SPOOL,20-7 #0030

8шт.

6

S411-040006

WASHER-SPRING

4-SPOOL,25-7 #0116

8шт.

6

S411-040006

WASHER-SPRING

4-SPOOL,30-7 #0013

8шт.

6

S411-040006

WASHER-SPRING

4-SPOOL,32-7 #0009

8шт.

7

S403-041006

WASHER-PLAIN

3-SPOOL,20-7 #0030

6шт.

7

S403-041006

WASHER-PLAIN

3-SPOOL,25-7 #0116

6шт.

7

S403-041006

WASHER-PLAIN

3-SPOOL,30-7 #0013

6шт.

7

S403-041006

WASHER-PLAIN

3-SPOOL,32-7 #0009

6шт.

7

S403-041006

WASHER-PLAIN

4-SPOOL,20-7 #0030

8шт.

7

S403-041006

WASHER-PLAIN

4-SPOOL,25-7 #0116

8шт.

7

S403-041006

WASHER-PLAIN

4-SPOOL,30-7 #0013

8шт.

7

S403-041006

WASHER-PLAIN

4-SPOOL,32-7 #0009

8шт.

8

B52110070

BRACKET-MICRO SWITCH

3-SPOOL,20-7 #0030

3шт.

8

B52110070

BRACKET-MICRO SWITCH

3-SPOOL,25-7 #0116

3шт.

8

B52110070

BRACKET-MICRO SWITCH

3-SPOOL,30-7 #0013

3шт.

8

B52110070

BRACKET-MICRO SWITCH

3-SPOOL,32-7 #0009

3шт.

8

B52110070

BRACKET-MICRO SWITCH

4-SPOOL,20-7 #0030

4шт.

8

B52110070

BRACKET-MICRO SWITCH

4-SPOOL,25-7 #0116

4шт.

8

B52110070

BRACKET-MICRO SWITCH

4-SPOOL,30-7 #0013

4шт.

8

B52110070

BRACKET-MICRO SWITCH

4-SPOOL,30-7 #0009

4шт.

K

21FH-79890

KIT-36V COLD STORAGE 3 SPOOL

36V, 3-SPOOL #0001

1шт.

K

21FH-79900

KIT-36V COLD STORAGE 4 SPOOL

36V, 4-SPOOL #0001

1шт.

K

21FH-79910

KIT-48V COLD STORAGE 3 SPOOL

48V, 3-SPOOL #0001

1шт.

K

21FH-79920

KIT-48V COLD STORAGE 4 SPOOL

48V, 4-SPOOL #0001

1шт.
