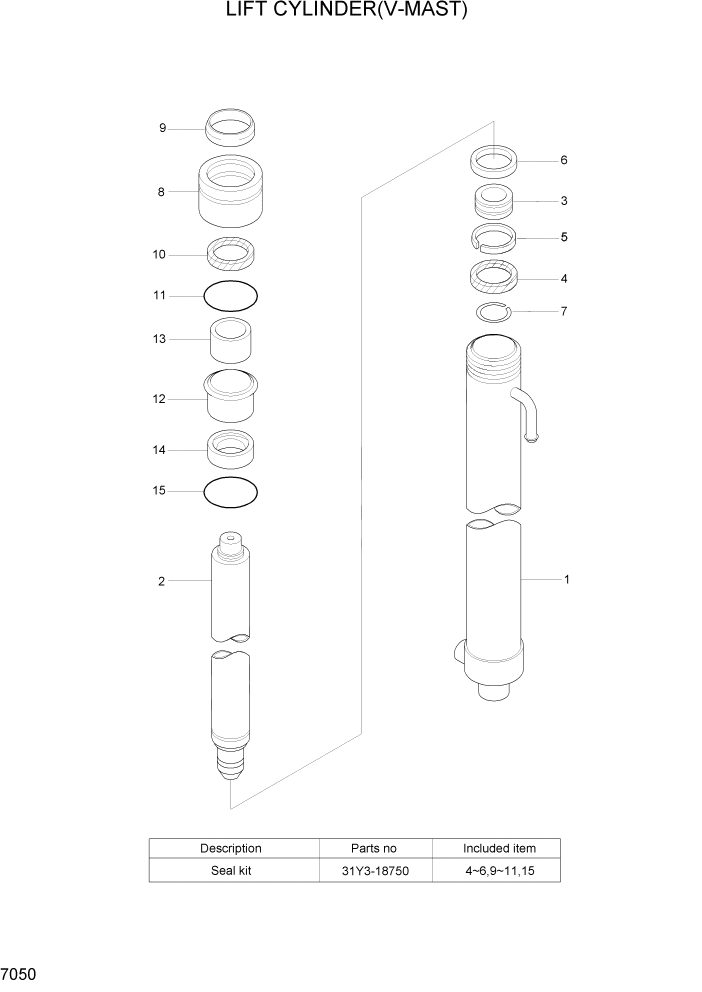

Запчасти Hyundai HBF15/HBF18T-5 PAGE 7050 LIFT CYLINDER(V-MAST) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

FMC000026AB

LIFT CYLINDER ASSY

V250

2шт.

*

FMC000026BB

LIFT CYLINDER ASSY

V270

2шт.

*

FMC0000261B

LIFT CYLINDER ASSY

V300

2шт.

*

FMC0000262B

LIFT CYLINDER ASSY

V330

2шт.

*

FMC0000263B

LIFT CYLINDER ASSY

V350

2шт.

*

FMC0000264B

LIFT CYLINDER ASSY

V370

2шт.

*

FMC0000265B-01

LIFT CYLINDER ASSY

V400

2шт.

*

FMC0000267B-01

LIFT CYLINDER ASSY

V450

2шт.

*

FMC0000269B

LIFT CYLINDER ASSY

V500

2шт.

*

FMC000026CB

LIFT CYLINDER ASSY

V550

2шт.

N1

@

TUBE ASSY

NOT

1шт.

N2

@

ROD ASSY

NOT

1шт.

3

31Y3-17490

PISTON

1шт.

K4

Y400-050000

SEAL-PISTON

1шт.

K5

Y180-040020

RING-BACK UP

1шт.

K6

Y300-050200

RING-WEAR

1шт.

7

31YC-99G20

RING-RETAINING

1шт.

8

31Y3-17500

GLAND

1шт.

K9

Y120-040011

WIPER-DUST

1шт.

K10

Y200-040011

SEAL-ROD

1шт.

K11

S632-055004

O-RING

1шт.

12

31Y3-17510

GUIDE

1шт.

13

S731-040030

BUSHING-DU

1шт.

14

13L420-2

SPACER

V450,V500

1шт.

14

13L335-0

SPACER

V550

1шт.

K15

E6310781

O-RING

V450-V550

1шт.

K

31Y3-18750

SEAL KIT

SEE ILLUST

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
