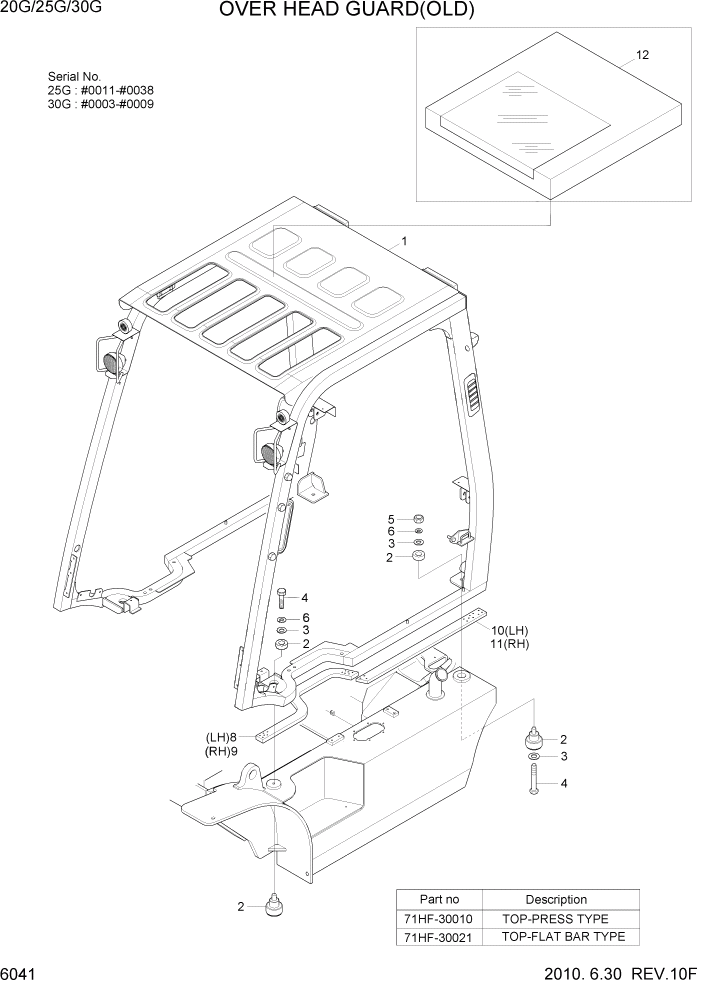

Запчасти Hyundai 20/25/30G-7 PAGE 6041 OVER HEARD GUARD(OLD) СТРУКТУРА

1

71HF-30010

HEAD GUARD SUB ASSY

20G,SEE ILLUST #0001

1шт.

1

71HF-30010

HEAD GUARD SUB ASSY

25G,SEE ILLUST #0011 - #0038

1шт.

1

71HF-30010

HEAD GUARD SUB ASSY

30G,SEE ILLUST #0003 - #0009

1шт.

1

71HF-30021

HEAD GUARD SUB ASSY

20G,SEE ILLUST #0001

1шт.

1

71HF-30021

HEAD GUARD SUB ASSY

25G,SEE ILLUST #0011 - #0038

1шт.

1

71HF-30021

HEAD GUARD SUB ASSY

30G,SEE ILLUST #0003 - #0009

1шт.

2

11S1-3016

RUBBER-MOUNT

4шт.

3

51FA-90100-DA

WASHER-MOUNT

6шт.

4

S017-120906

BOLT-HEX

4шт.

5

S275-120006

NUT-SELF LOCKING

2шт.

6

S411-120006

WASHER-SPRING

4шт.

8

71HA-30061

SPONGE-STEP,LH

1шт.

9

71HA-30071

SPONGE-STEP,RH

1шт.

10

71HA-30081

SPONGE-LH

1шт.

11

71HA-30091

SPONGE-RH

1шт.

12

71FG-35000

RAIN COVER

OPTION

1шт.
