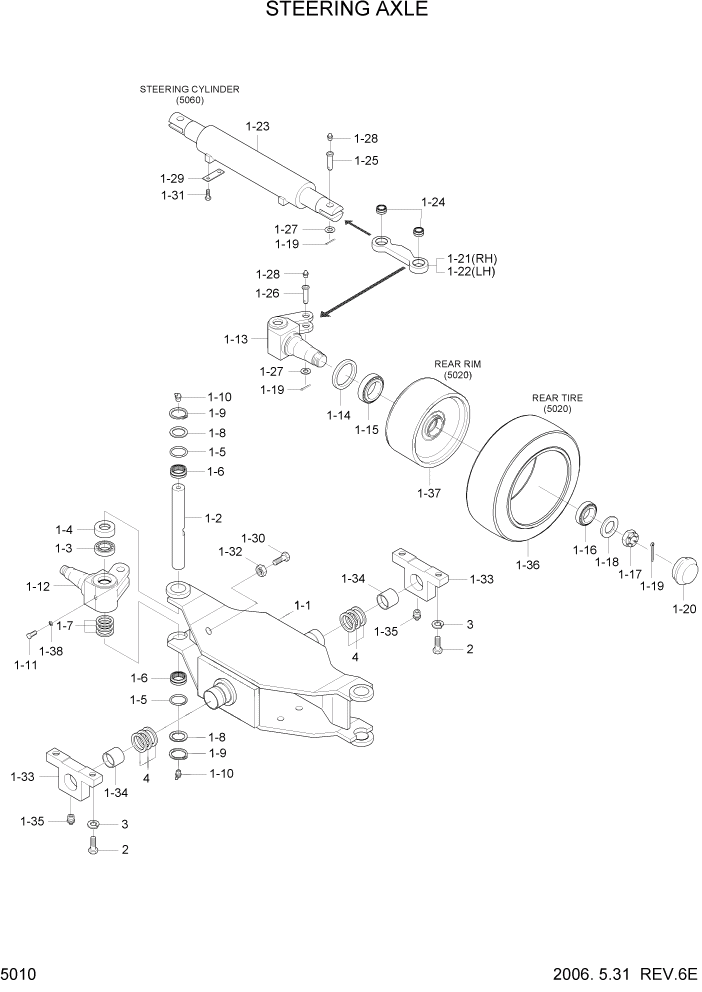

Запчасти Hyundai HLF15/HLF18C-5 PAGE 5010 STEERING AXLE СИСТЕМА УПРАВЛЕНИЯ

1

F31410102

TRAIL AXLE & REAR TIRE

15C-5, CUSHION #0216

1шт.

1

F31410103

TRAIL AXLE & REAR TIRE

15C-5, CUSHION #0217

1шт.

1

F31410102

TRAIL AXLE & REAR TIRE

18C-5, CUSHION #0070

1шт.

1

F31410103

TRAIL AXLE & REAR TIRE

18C-5, CUSHION #0071

1шт.

1

81FN-50500

TRAIL AXLE & REAR TIRE ASSY

15C-5, NO-MARK #0240

1шт.

1

81FN-50500

TRAIL AXLE & REAR TIRE ASSY

18C-5, NO-MARK #0078

1шт.

1-1

F31410113

TRAIL AXLE WA

1шт.

1-2

FHC0503001

PIN-KING

2шт.

1-3

9021301206

BEARING-THRUST

2шт.

1-4

3555001800-01

CAP-BEARING THRUST

2шт.

1-5

1322001400

SEAL-OIL

4шт.

1-6

9022900008

BEARING-NEEDLE

4шт.

1-7

FBC0500170

SHIM(0.13T)

6шт.

1-8

3555003000-01

COVER

4шт.

1-9

S601-030004

RING-RETAINING

4шт.

1-1

S652-810008

NIPPLE-GREASE

4шт.

1-11

FAD0500150

BOLT-SPECIAL

2шт.

1-12

F31410211

KNUCKLE-RH

1шт.

1-13

F31410221

KNUCKLE-LH

1шт.

1-14

1322009900

SEAL-OIL

2шт.

1-15

9022101307

BEARING-TAPER ROLLER

2шт.

1-16

9022101305

BEARING-TAPER ROLLER

2шт.

1-17

22B124000

NUT-LOW CASTLE

2шт.

1-18

S403-241006

WASHER-PLAIN

2шт.

1-19

S461-500452

PIN-SPLIT

6шт.

1-2

3672009300-01

CAP-HUB

2шт.

1-21

F31410181

LINK-RH

HLF15C-5 #0179

1шт.

1-21

F31410182

LINK-RH

HLF15C-5 #0180

1шт.

1-21

F31410181

LINK-RH

HLF18C-5 #0068

1шт.

1-21

F31410182

LINK-RH

HLF18C-5 #0069

1шт.

1-22

F31410191

LINK-LH

HLF15C-5 #0179

1шт.

1-22

F31410192

LINK-LH

HLF15C-5 #0180

1шт.

1-22

F31410191

LINK-LH

HLF18C-5 #0068

1шт.

1-22

F31410192

LINK-LH

HLF18C-5 #0069

1шт.

1-23

@

P/S CYLINDER

NOT

1шт.

1-24

6600264900

BEARING

4шт.

1-25

F31410260

PIN-CLEVIS

2шт.

1-26

B32410140

PIN-CLEVIS

2шт.

1-27

S403-201006

WASHER-PLAIN

4шт.

1-28

S651-060008

NIPPLE-GREASE

4шт.

1-29

Q100327000

PLATE-LOCK

2шт.

1-3

206514040

BOLT-HEX

2шт.

1-31

S017-160356

BOLT-HEX

4шт.

1-32

S205-141006

NUT-HEX

2шт.

1-33

F12410011

BLOCK-TRUNNION

2шт.

1-34

FAC0500160

BUSHING

2шт.

1-35

S652-810008

NIPPLE-GREASE

2шт.

1-36

F31410010

TIRE-REAR

CUSHION

2шт.

1-36

81FN-50010

TIRE-REAR(PL&NM)

HLF15C-5,NO-MK #0240

2шт.

1-36

81FN-50010

TIRE-REAR(PL&NM)

HLF18C-5,NO-MK #0078

2шт.

1-37

F31410020

RIM-REAR

SEE 5020

2шт.

1-38

S411-100006

WASHER-SPRING

2шт.

1-39

Q100338000

WASHER-THRUST

HLF15C-5 #0180

4шт.

1-39

Q100338000

WASHER-THRUST

HLF18C-5 #0069

4шт.

2

S017-200606

BOLT-HEX

4шт.

3

S411-200006

WASHER-SPRING

4шт.

4

3591000800-01

SHIM(0.5T)

8шт.
