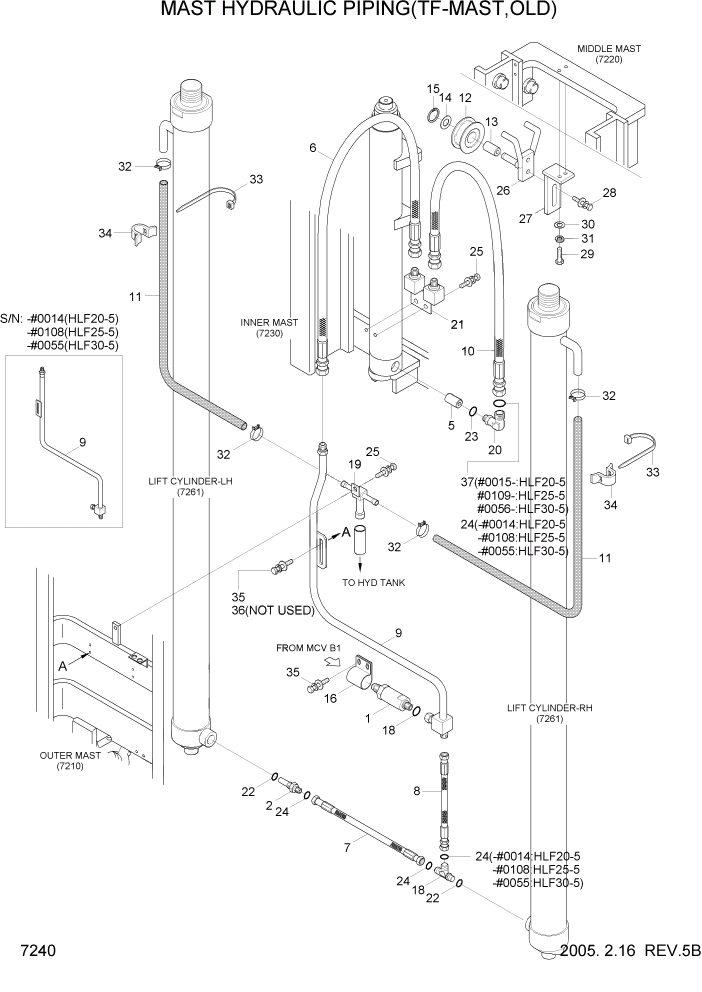

Запчасти Hyundai HLF20/HLF25/HLF30-5 PAGE 7240 MAST HYDRAULIC PIPING(TF-MAST,OLD) РАБОЧЕЕ ОБОРУДОВАНИЕ

*

@

MAST HYERAULIC PIPING

NOT #0030

1шт.

*

@

MAST HYERAULIC PIPING

NOT #0215

1шт.

*

@

MAST HYERAULIC PIPING

NOT #0111

1шт.

1

31FG-05000

FLOW REGULATOR

HLF20/25-5

1шт.

1

31FG-05100

FLOW REGULATOR

HLF30-5

1шт.

2

31FG-05200

VELOCITY FUSE VALVE

1шт.

5

EE19170100

DOWN SAFETY VALVE

1шт.

6

P910-084040

HOSE ASSY-ORFS 0X0

HLF20-5,TF370 #0014

1шт.

6

P910-104040

HOSE ASSY-ORFS 0X0

HLF20-5,TF370 #0015

1шт.

6

P910-084040

HOSE ASSY-ORFS 0X0

HLF25-5,TF370 #0108

1шт.

6

P910-104040

HOSE ASSY-ORFS 0X0

HLF25-5,TF370 #0109

1шт.

6

P910-084040

HOSE ASSY-ORFS 0X0

HLF30-5,TF370 #0055

1шт.

6

P910-104040

HOSE ASSY-ORFS 0X0

HLF30-5,TF370 #0056

1шт.

6

P910-084044

HOSE ASSY-ORFS 0X0

HLF20-5,TF400 #0014

1шт.

6

P910-104044

HOSE ASSY-ORFS 0X0

HLF20-5,TF400 #0015

1шт.

6

P910-084044

HOSE ASSY-ORFS 0X0

HLF25-5,TF400 #0108

1шт.

6

P910-104044

HOSE ASSY-ORFS 0X0

HLF25-5,TF400 #0109

1шт.

6

P910-084044

HOSE ASSY-ORFS 0X0

HLF30-5,TF400 #0055

1шт.

6

P910-104044

HOSE ASSY-ORFS 0X0

HLF30-5,TF400 #0056

1шт.

6

P910-084048

HOSE ASSY-ORFS 0X0

HLF20-5,TF430 #0014

1шт.

6

P910-104048

HOSE ASSY-ORFS 0X0

HLF20-5,TF430 #0015

1шт.

6

P910-084048

HOSE ASSY-ORFS 0X0

HLF25-5,TF430 #0108

1шт.

6

P910-104048

HOSE ASSY-ORFS 0X0

HLF25-5,TF430 #0109

1шт.

6

P910-084048

HOSE ASSY-ORFS 0X0

HLF30-5,TF430 #0055

1шт.

6

P910-104048

HOSE ASSY-ORFS 0X0

HLF30-5,TF430 #0056

1шт.

6

P910-084051

HOSE ASSY-ORFS 0X0

HLF20-5,TF450 #0014

1шт.

6

P910-104051

HOSE ASSY-ORFS 0X0

HLF20-5,TF450 #0015

1шт.

6

P910-084051

HOSE ASSY-ORFS 0X0

HLF25-5,TF450 #0108

1шт.

6

P910-104051

HOSE ASSY-ORFS 0X0

HLF25-5,TF450 #0109

1шт.

6

P910-084051

HOSE ASSY-ORFS 0X0

HLF30-5,TF450 #0055

1шт.

6

P910-104051

HOSE ASSY-ORFS 0X0

HLF30-5,TF450 #0056

1шт.

6

P910-084053

HOSE ASSY-ORFS 0X0

HLF20-5,TF470 #0014

1шт.

6

P910-104053

HOSE ASSY-ORFS 0X0

HLF20-5,TF470 #0015

1шт.

6

P910-084053

HOSE ASSY-ORFS 0X0

HLF25-5,TF470 #0108

1шт.

6

P910-104053

HOSE ASSY-ORFS 0X0

HLF25-5,TF470 #0109

1шт.

6

P910-084053

HOSE ASSY-ORFS 0X0

HLF30-5,TF470 #0055

1шт.

6

P910-104053

HOSE ASSY-ORFS 0X0

HLF30-5,TF470 #0056

1шт.

6

P910-084057

HOSE ASSY-ORFS 0X0

HLF20-5,TF500 #0014

1шт.

6

P910-104057

HOSE ASSY-ORFS 0X0

HLF20-5,TF500 #0015

1шт.

6

P910-084057

HOSE ASSY-ORFS 0X0

HLF25-5,TF500 #0108

1шт.

6

P910-104057

HOSE ASSY-ORFS 0X0

HLF25-5,TF500 #0109

1шт.

6

P910-084057

HOSE ASSY-ORFS 0X0

HLF30-5,TF500 #0055

1шт.

6

P910-104057

HOSE ASSY-ORFS 0X0

HLF30-5,TF500 #0056

1шт.

6

P910-084065

HOSE ASSY-ORFS 0X0

HLF20-5,TF550 #0014

1шт.

6

P910-104065

HOSE ASSY-ORFS 0X0

HLF20-5,TF550 #0015

1шт.

6

P910-084065

HOSE ASSY-ORFS 0X0

HLF25-5,TF550 #0108

1шт.

6

P910-104065

HOSE ASSY-ORFS 0X0

HLF25-5,TF550 #0109

1шт.

6

P910-084065

HOSE ASSY-ORFS 0X0

HLF30-5,TF550 #0055

1шт.

6

P910-104065

HOSE ASSY-ORFS 0X0

HLF30-5,TF550 #0056

1шт.

6

P910-084073

HOSE ASSY-ORFS 0X0

HLF20-5,TF600 #0014

1шт.

6

P910-104073

HOSE ASSY-ORFS 0X0

HLF20-5,TF600 #0015

1шт.

6

P910-084073

HOSE ASSY-ORFS 0X0

HLF25-5,TF600 #0108

1шт.

6

P910-104073

HOSE ASSY-ORFS 0X0

HLF25-5,TF600 #0109

1шт.

6

P910-084073

HOSE ASSY-ORFS 0X0

HLF30-5,TF600 #0055

1шт.

6

P910-104073

HOSE ASSY-ORFS 0X0

HLF30-5,TF600 #0056

1шт.

6

P910-084080

HOSE ASSY-ORFS 0X0

HLF20-5,TF650 #0014

1шт.

6

P910-104080

HOSE ASSY-ORFS 0X0

HLF20-5,TF650 #0015

1шт.

6

P910-084080

HOSE ASSY-ORFS 0X0

HLF25-5,TF650 #0108

1шт.

6

P910-104080

HOSE ASSY-ORFS 0X0

HLF25-5,TF650 #0109

1шт.

6

P910-084080

HOSE ASSY-ORFS 0X0

HLF30-5,TF650 #0055

1шт.

6

P910-104080

HOSE ASSY-ORFS 0X0

HLF30-5,TF650 #0056

1шт.

6

P910-084088

HOSE ASSY-ORFS 0X0

HLF20-5,TF700 #0014

1шт.

6

P910-104088

HOSE ASSY-ORFS 0X0

HLF20-5,TF700 #0015

1шт.

6

P910-084088

HOSE ASSY-ORFS 0X0

HLF25-5,TF700 #0108

1шт.

6

P910-104088

HOSE ASSY-ORFS 0X0

HLF25-5,TF700 #0109

1шт.

6

P910-084088

HOSE ASSY-ORFS 0X0

HLF30-5,TF700 #0055

1шт.

6

P910-104088

HOSE ASSY-ORFS 0X0

HLF30-5,TF700 #0056

1шт.

7

31FG-80100

HOSE ASSY

1шт.

8

33FG-83000

HOSE ASSY

1шт.

9

33FG-81000

PIPE WA

HLF20-5 #0014

1шт.

9

33FG-81001

PIPE WA

HLF20-5 #0015

1шт.

9

33FG-81000

PIPE WA

HLF25-5 #0108

1шт.

9

33FG-81001

PIPE WA

HLF25-5 #0109

1шт.

9

33FG-81000

PIPE WA

HLF30-5 #0055

1шт.

9

33FG-81001

PIPE WA

HLF30-5 #0056

1шт.

10

P910-084011

HOSE ASSY-ORFS 0X0

HLF20-5 #0014

1шт.

10

P910-104011

HOSE ASSY-ORFS 0X0

HLF20-5 #0015

1шт.

10

P910-084011

HOSE ASSY-ORFS 0X0

HLF25-5 #0108

1шт.

10

P910-104011

HOSE ASSY-ORFS 0X0

HLF25-5 #0109

1шт.

10

P910-084011

HOSE ASSY-ORFS 0X0

HLF30-5 #0055

1шт.

10

P910-104011

HOSE ASSY-ORFS 0X0

HLF30-5 #0056

1шт.

11

P760-013075

HOSE-RUBBER LOW

TF370

2шт.

11

P760-013085

HOSE-RUBBER LOW

TF400

2шт.

11

P760-013095

HOSE-RUBBER LOW

TF430

2шт.

11

P760-013105

HOSE-RUBBER LOW

TF450

2шт.

11

P760-013110

HOSE-RUBBER LOW

TF470

2шт.

11

P760-013120

HOSE-RUBBER LOW

TF500

2шт.

11

P760-013140

HOSE-RUBBER

TF550

2шт.

11

P760-013160

HOSE-RUBBER LOW

TF600

2шт.

11

P760-013180

HOSE-RUBBER,LOW

TF650

2шт.

11

P760-013200

HOSE-RUBBER,TRI.MAST(530)

TF700

2шт.

12

FMB0200610

PULLEY-HOSE

1шт.

13

S731-020025

BUSHING-DU

1шт.

14

FMC0200060

WASHER

1шт.

15

S601-020004

RING-RETAINING

1шт.

16

F12500182

CLAMP-F/REG

1шт.

18

X820-085353

TEE-R/TYPE,ORFS

1шт.

19

31FG-80500

TEE-RETURN

1шт.

20

X520-110016

ELBOW-90,ORFS

HLF20-5 #0014

1шт.

20

X520-110023

ELBOW-90,ORFS

HLF20-5 #0015

1шт.

20

X520-110016

ELBOW-90,ORFS

HLF25-5 #0108

1шт.

20

X520-110023

ELBOW-90,ORFS

HLF25-5 #0109

1шт.

20

X520-110016

ELBOW-90,ORFS

HLF30-5 #0055

1шт.

20

X520-110023

ELBOW-90,ORFS

HLF30-5 #0056

1шт.

21

33FJ-80120

ELBOW WA

HLF20-5 #0014

1шт.

21

33FJ-80121

ELBOW WA

HLF20-5 #0015

1шт.

21

33FJ-80120

ELBOW WA

HLF25-5 #0108

1шт.

21

33FJ-80121

ELBOW WA

HLF25-5 #0109

1шт.

21

33FJ-80120

ELBOW WA

HLF30-5 #0055

1шт.

21

33FJ-80121

ELBOW WA

HLF30-5 #0056

1шт.

22

S631-018004

O-RING

2шт.

23

S631-024004

O-RING

1шт.

24

S621-014001

O-RING

HLF20-5 #0014

6шт.

24

S621-014001

O-RING

HLF20-5 #0015

2шт.

24

S621-014001

O-RING

HLF25-5 #0108

6шт.

24

S621-014001

O-RING

HLF25-5 #0109

2шт.

24

S621-014001

O-RING

HLF30-5 #0055

6шт.

24

S621-014001

O-RING

HLF30-5 #0056

2шт.

25

S037-102022

BOLT-W/WASHER

3шт.

26

6600343200B-01

BRACKET

1шт.

27

33FK-80220

BRACKET WA

1шт.

28

S037-123522

BOLT-W/WASHER

2шт.

29

S017-120502

BOLT-HEX

2шт.

30

S403-121002

WASHER-PLAIN

2шт.

31

S411-120002

WASHER-SPRING

2шт.

32

S520-015000

CLAMP-HOSE

4шт.

33

S552-102370

CLAMP-BAND

4шт.

34

31FA-80110

CLAMP-HOSE

4шт.

35

S035-082032

BOLT-W/WASHER

#0001

4шт.

36

S035-082522

BOLT-W/WASHER

NOT USED

2шт.

37

S621-016001

O-RING

HLF20-5 #0015

1шт.

37

S621-016001

O-RING

HLF25-5 #0109

1шт.

37

S621-016001

O-RING

HLF30-5 #0056

1шт.
