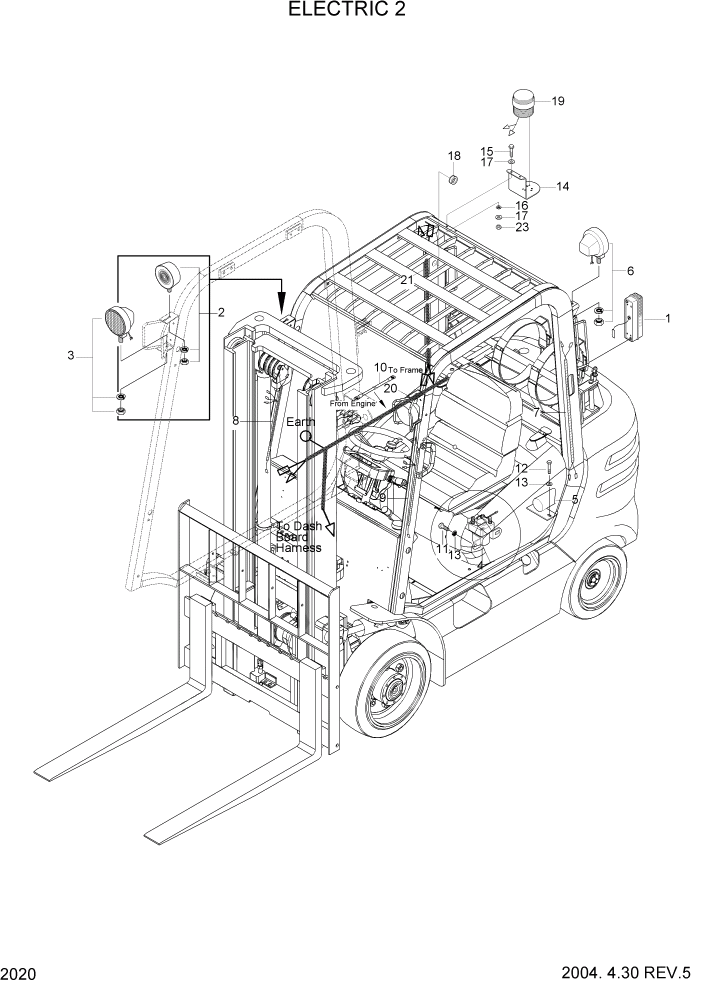

Запчасти Hyundai HLF20/HLF25/HLF30C-2 PAGE 2020 ELECTRIC 2 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

1

F12840050

COMB LAMP ASSY-RR

HLF20/25C-2 #1150

2шт.

1

F12840070

COMB LAMP ASSY-RR

HLF20C,SEE 6040 #1151 - #2008

2шт.

1

F12840070

COMB LAMP ASSY-RR

HLF25C,SEE 6040 #1151 - #2117

2шт.

1

F12840050

COMB LAMP ASSY-RR

HLF30C,SEE 6040 #1021

2шт.

1

F12840070

COMB LAMP ASSY-RR

HLF30C,SEE 6040 #1022 - #2022

2шт.

2

F12840020

LAMP-FLASHER

HLF20C,SEE 6040 #2008

2шт.

2

F12840020

LAMP-FLASHER

HLF25C,SEE 6040 #2117

2шт.

2

F12840020

LAMP-FLASHER

HLF30C,SEE 6040 #2022

2шт.

3

F12840010

LAMP SUB ASSY-WORK

HLF20C,SEE 6040 #2008

2шт.

3

F12840010

LAMP SUB ASSY-WORK

HLF25C,SEE 6040 #2117

2шт.

3

F12840010

LAMP SUB ASSY-WORK

HLF30C,SEE 6040 #2022

2шт.

4

320019180

START RELAY

HLF20C,SEE 6040 #2006

1шт.

4

320019181

START RELAY

HLF20C,SEE 6040 #2007

1шт.

4

320019180

START RELAY

HLF25C,SEE 6040 #2108

1шт.

4

320019181

START RELAY

HLF25C,SEE 6040 #2109

1шт.

4

320019180

START RELAY

HLF30C,SEE 6040 #2022

1шт.

4

320019181

START RELAY

HLF30C,SEE 6040 #2023

1шт.

5

320008080

HORN-BACK

1шт.

6

F12840010

LAMP SUB ASSY-WORK

HLF20C-2,OPT #2008

1шт.

6

F12840010

LAMP SUB ASSY-WORK

HLF25C-2,OPT #2117

1шт.

6

F12840010

LAMP SUB ASSY-WORK

HLF30C-2,OPT #2022

1шт.

7

F13800140

HARNESS-WORK LAMP

HLF20C,SEE 6040 #2008

1шт.

7

F13800140

HARNESS-WORK LAMP

HLF25C,SEE 6040 #2117

1шт.

7

F13800140

HARNESS-WORK LAMP

HLF30C,SEE 6040 #2022

1шт.

8

F32800030

HARNESS-SUPPORT(RH)

HLF20C,SEE 6040 #2008

1шт.

8

F32800030

HARNESS-SUPPORT(RH)

HLF25C,SEE 6040 #2117

1шт.

8

F32800030

HARNESS-SUPPORT(RH)

HLF30C,SEE 6040 #2022

1шт.

9

F32800040

HARNESS-SUPPORT(LH)

HLF20C,SEE 6040 #2008

1шт.

9

F32800040

HARNESS-SUPPORT(LH)

HLF25C,SEE 6040 #2117

1шт.

9

F32800040

HARNESS-SUPPORT(LH)

HLF30C,SEE 6040 #2022

1шт.

10

320031200-01

CABLE-ENGINE/FRAME

1шт.

11

201308010

BOLT-HEX

2шт.

12

201508015

BOLT-HEX

2шт.

13

233308000

WASHER-SPRING

4шт.

14

F21161010

BRKT-BEACON

#2001

1шт.

15

S015-060152

BOLT-HEX

HLF20C-2 #2001 - #2008

2шт.

15

S015-080552

BOLT-HEX

HLF20C-2 #2009

2шт.

15

S015-060152

BOLT-HEX

HLF25C-2 #2001 - #2127

2шт.

15

S015-080552

BOLT-HEX

HLF25C-2 #2128

2шт.

15

S015-060152

BOLT-HEX

HLF30C-2 #2001 - #2022

2шт.

15

S015-080552

BOLT-HEX

HLF30C-2 #2023

2шт.

16

S411-060002

WASHER-SPRING

HLF20C-2 #2001 - #2008

2шт.

16

S411-080002

WASHER-SPRING

HLF20C-2 #2009

2шт.

16

S411-060002

WASHER-SPRING

HLF25C-2 #2001 - #2127

2шт.

16

S411-080002

WASHER-SPRING

HLF25C-2 #2128

2шт.

16

S411-060002

WASHER-SPRING

HLF30C-2 #2001 - #2022

2шт.

16

S411-080002

WASHER-SPRING

HLF30C-2 #2023

2шт.

17

S403-061002

WASHER-PLAIN

HLF20C-2 #2001 - #2008

2шт.

17

S403-082002

WASHER-PLAIN

HLF20C-2 #2009

2шт.

17

S403-061002

WASHER-PLAIN

HLF25C-2 #2001 - #2127

2шт.

17

S403-082002

WASHER-PLAIN

HLF25C-2 #2128

2шт.

17

S403-061002

WASHER-PLAIN

HLF30C-2 #2001 - #2022

2шт.

17

S403-082002

WASHER-PLAIN

HLF30C-2 #2023

2шт.

18

ED03020000-01

GROMMET

HLF20C-2 #2001 - #2008

1шт.

18

FHC0904510

GROMMET

HLF20C-2 #2009

1шт.

18

ED03020000-01

GROMMET

HLF25C-2 #2001 - #2127

1шт.

18

FHC0904510

GROMMET

HLF25C-2 #2128

1шт.

18

ED03020000-01

GROMMET

HLF30C-2 #2001 - #2022

1шт.

18

FHC0904510

GROMMET

HLF30C-2 #2023

1шт.

19

F23842010

BEACON LAMP ASSY

#2001

1шт.

20

F23802010

HARNESS-B/LAMP SW

#2001

1шт.

21

B51800080

HARNESS-B/LAMP,HG

#2001

1шт.

23

S203-081002

NUT-HEX

#2009

2шт.

23

S203-081002

NUT-HEX

#2128

2шт.

23

S203-081002

NUT-HEX

#2023

2шт.
